Description For Work Flow

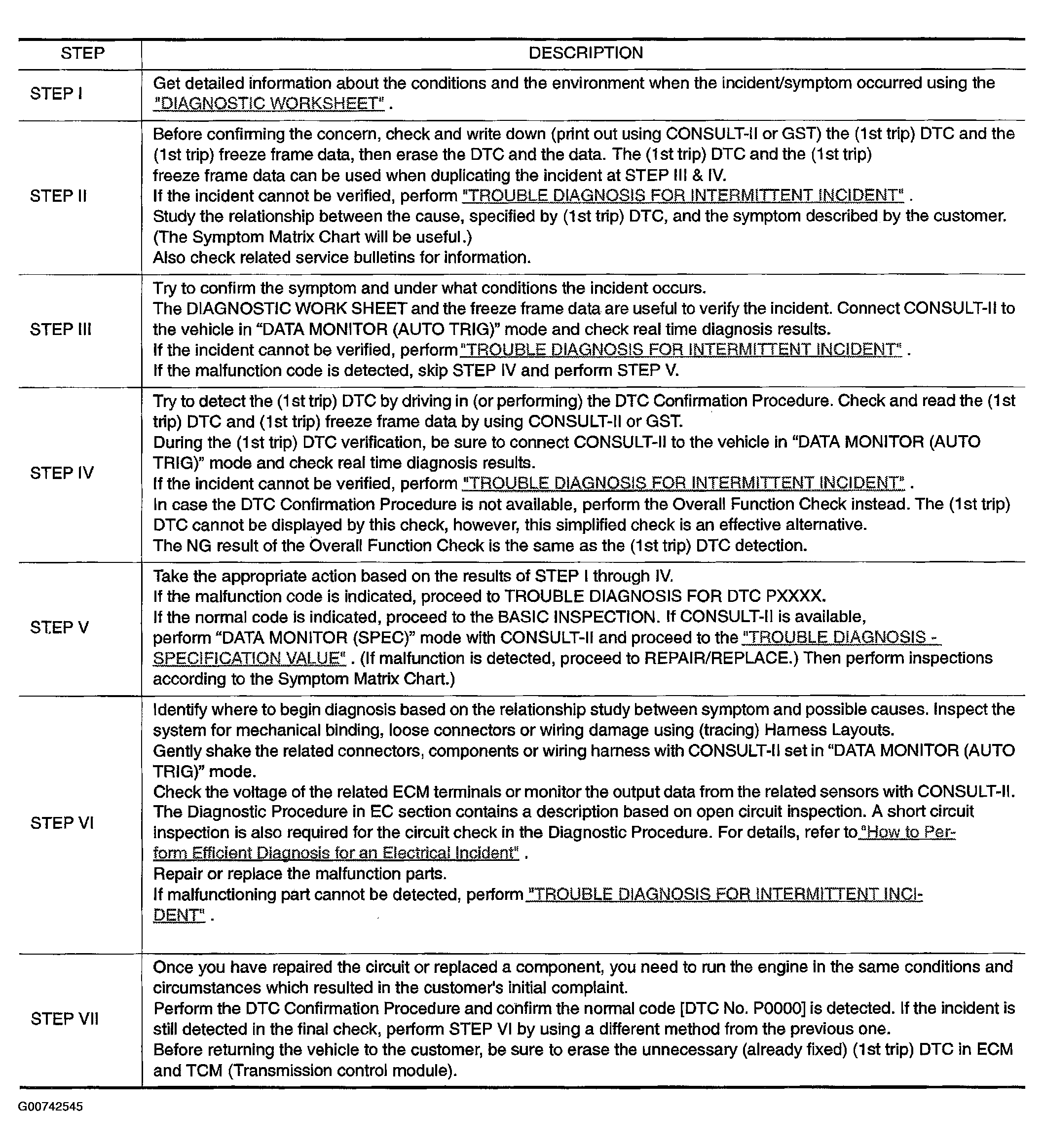

Fig 1: Description For Work Flow

Courtesy of NISSAN MOTOR CO., U.S.A.

STEP I  For "DIAGNOSTIC WORKSHEET", refer to DIAGNOSTIC WORKSHEET .

STEP II  To erase DTC, refer to HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION . For "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT . For Symptom Matrix Chart, refer to Symptom Matrix Chart .

STEP III  For "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

STEP IV  For "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

STEP V  For BASIC INSPECTION, refer to Basic Inspection .

STEP VI  For ECM terminal voltage test, refer to ECM Terminals and Reference Value  and CONSULT-II Reference Value in Data Monitor Mode . For "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

STEP VII  To erase DTCs in ECM and TCM, refer to HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION  and HOW TO ERASE DTC .
