Component Description
WARNING: This page is about a different variant/trim than selected.
NOTE:
If DTC P0121 is displayed with DTC P0510, first perform the trouble diagnosis for DTC P0510. Refer to
DTC P0510 CLOSED TP SWITCH .

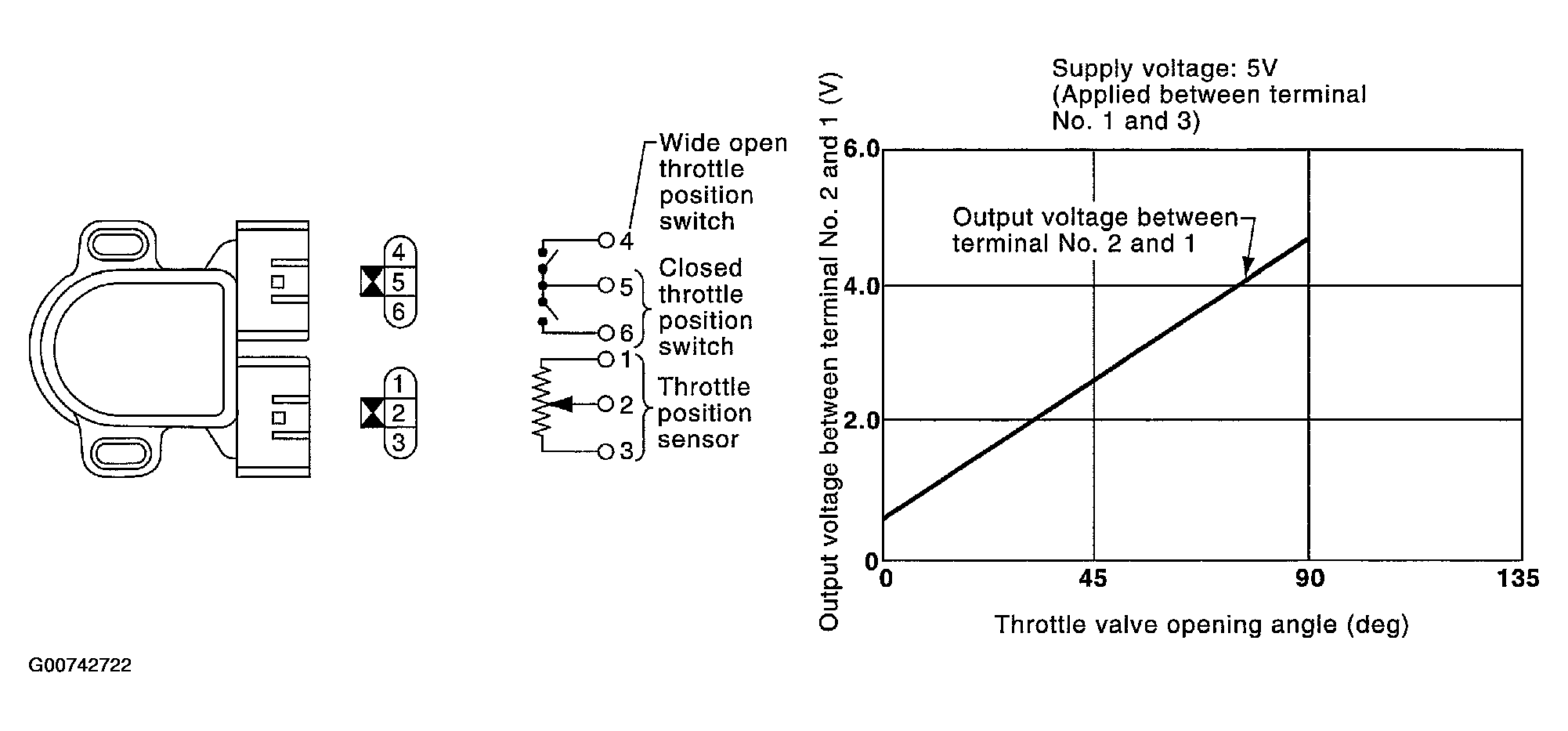

The throttle position sensor responds to the accelerator pedal movement. This sensor is a kind of potentiometer which transforms the throttle position into output voltage, and emits the voltage signal to the ECM. In addition, the sensor detects the opening and closing speed of the throttle valve and feeds the voltage signal to the ECM.
Idle position of the throttle valve is determined by the ECM receiving the signal from the throttle position sensor. This sensor controls engine operation such as fuel cut. On the other hand, the "Wide open and closed throttle position switch", which is built into the throttle position sensor unit, is not used for engine control.
