Component Inspection

WARNING: This page is about a different variant/trim than selected.

THROTTLE POSITION SENSOR

With CONSULT-II

Start engine and warm it up to normal operating temperature.
Stop engine (ignition switch OFF).
Turn ignition switch ON.
Select "DATA MONITOR" mode with CONSULT-II.
Check voltage of "THRTL POS SEN" under the following conditions.
Voltage measurement must be made with throttle position sensor installed in vehicle.

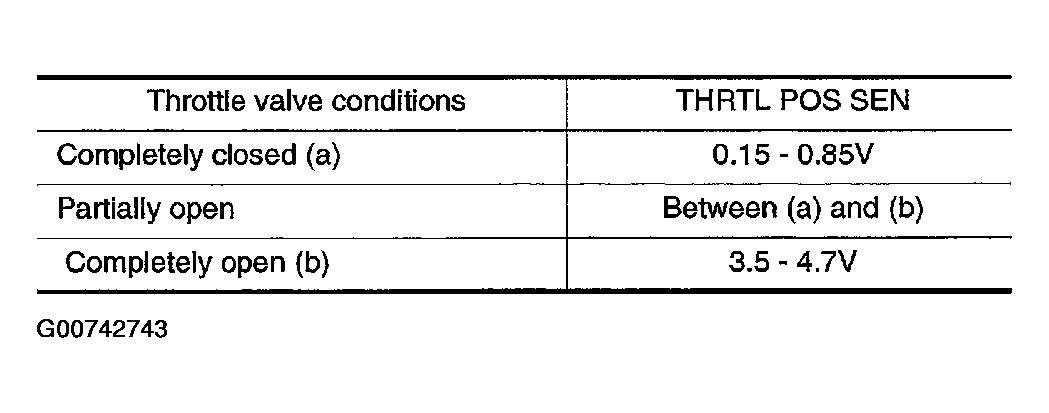

Fig 1: Reference Data

Courtesy of NISSAN MOTOR CO., U.S.A.

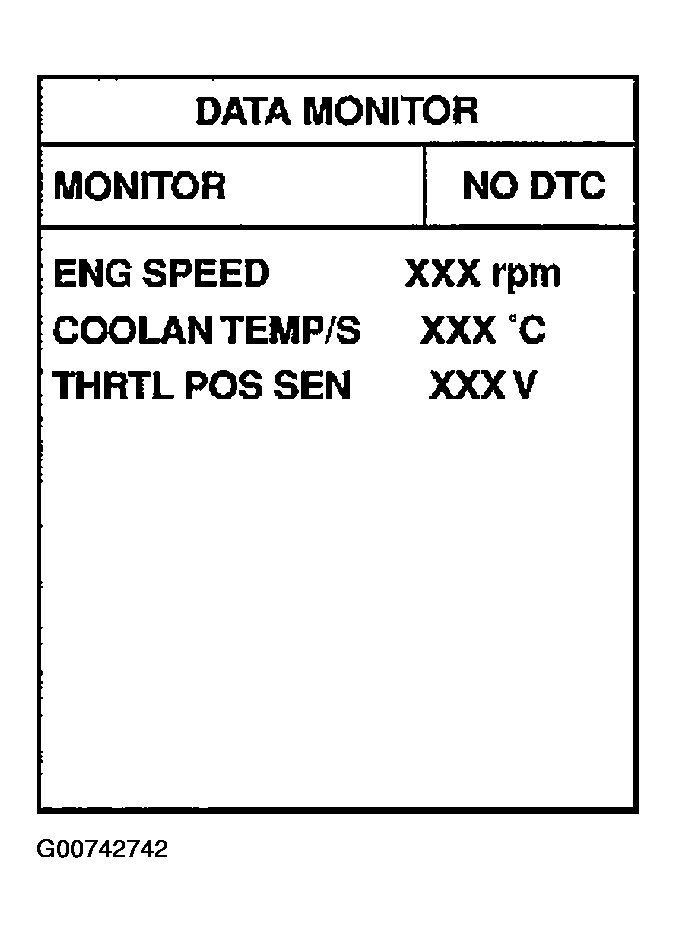

Fig 2: Reading "THRTL POS SEN" In "DATA MONITOR" Mode

Courtesy of NISSAN MOTOR CO., U.S.A.

With GST

Start engine and warm it up to normal operating temperature.
Stop engine (ignition switch OFF).
Turn ignition switch ON.
Check voltage between ECM terminal 23 (Throttle position sensor signal) and engine ground.
Voltage measurement must be made with throttle position sensor installed in vehicle.

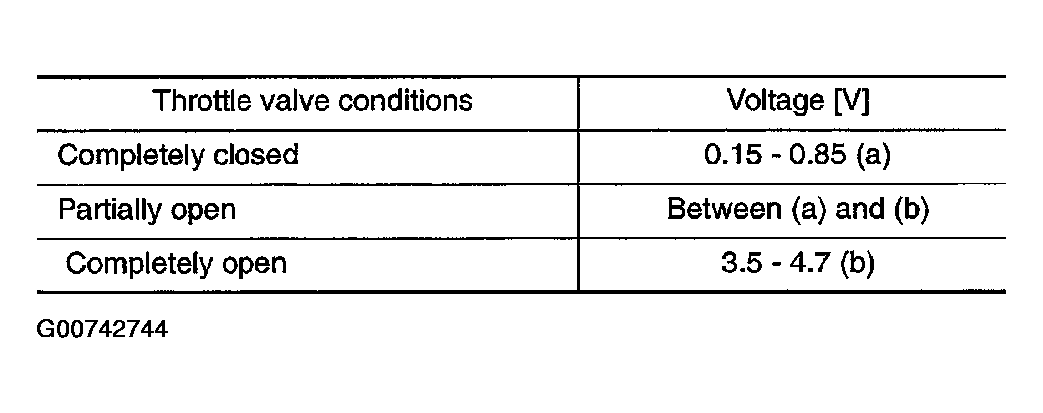

Fig 3: Reference Data
Courtesy of NISSAN MOTOR CO., U.S.A.
