System Description

WARNING: This page is about a different variant/trim than selected.

NOTE: If DTC P0441 is displayed with P0510, perform trouble diagnosis for DTC P0510 first. (See DTC P0510 CLOSED TP SWITCH ).

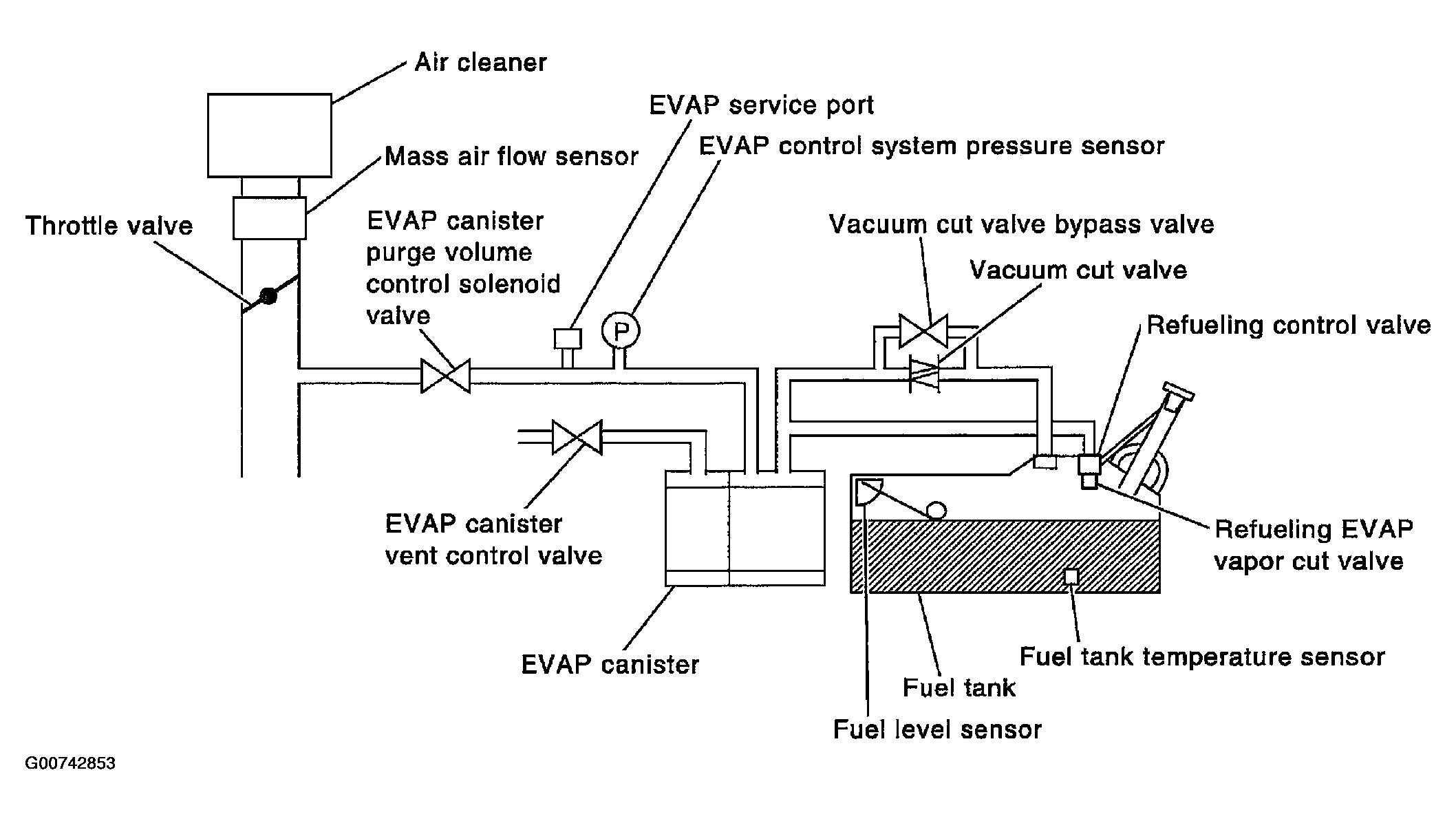

Fig 1: Identifying EVAP Control System

Courtesy of NISSAN MOTOR CO., U.S.A.

In this evaporative emission (EVAP) control system, purge flow occurs during non-closed throttle conditions. Purge volume is related to air intake volume. Under normal purge conditions (non-closed throttle), the EVAP canister purge volume control solenoid valve is open. Purge flow exposes the EVAP control system pressure sensor to intake manifold vacuum.
