Overall Function Check

Use this procedure to check the overall function of the closed loop control. During this check, a DTC might not be confirmed.

WITH GST

1. Start engine and warm it up to normal operating temperature.
2. Set voltmeter probes between ECM terminal 50 [HO2S1 (B1) signal] or 51 [HO2S1 (B2) signal] and engine ground.
3. Check the following with engine speed held at 2, 000 RPM constant under no-load.
   • The voltage should go above 0.70V at least once.
   • The voltage should go below 0.21V at least once.
4. If NG, go to "DIAGNOSTIC PROCEDURE ".

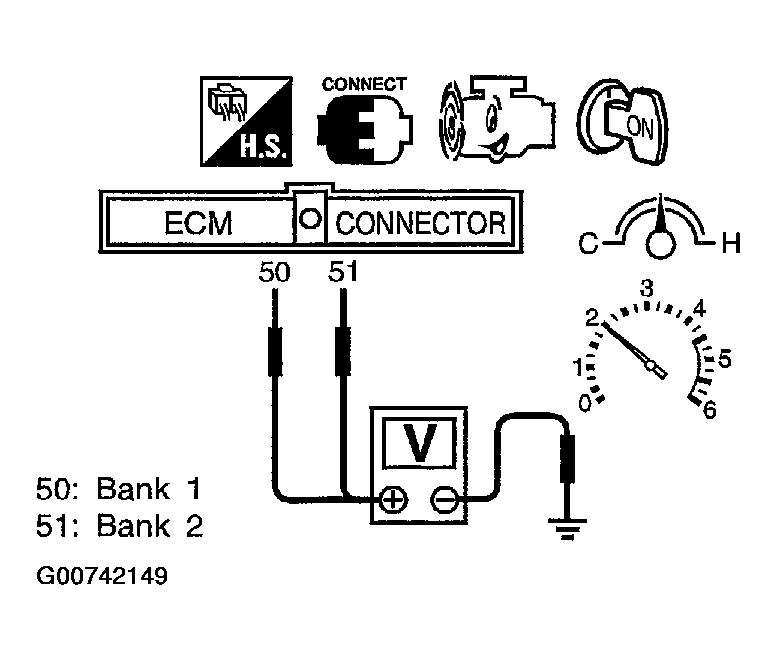

   Fig 1: Checking Between ECM Terminal 50 Or 51 And Engine Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
