Air Conditioner Cut Control: Notes

WARNING: This page is about a different variant/trim than selected.

INPUT/OUTPUT SIGNAL CHART

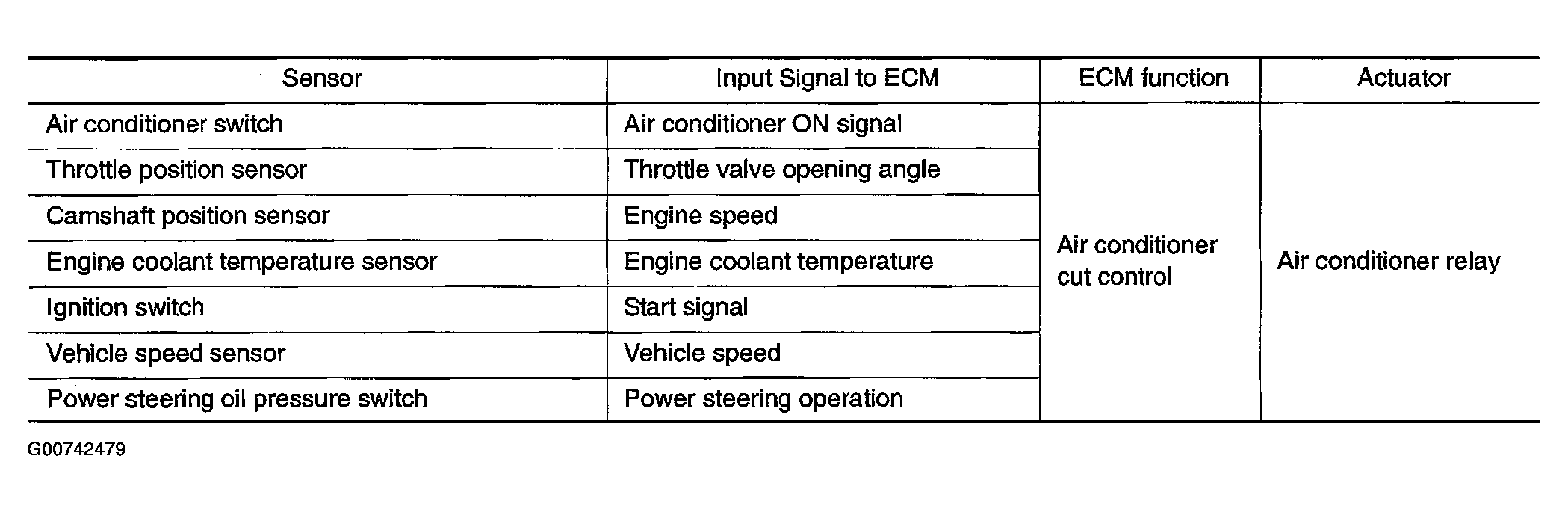

Fig 1: Input/Output Signal Chart - Air Conditioning Cut Control
G00742479Courtesy of NISSAN MOTOR CO., U.S.A.
