Distributor Ignition (DI) System: Notes

WARNING: This page is about a different variant/trim than selected.

INPUT/OUTPUT SIGNAL CHART

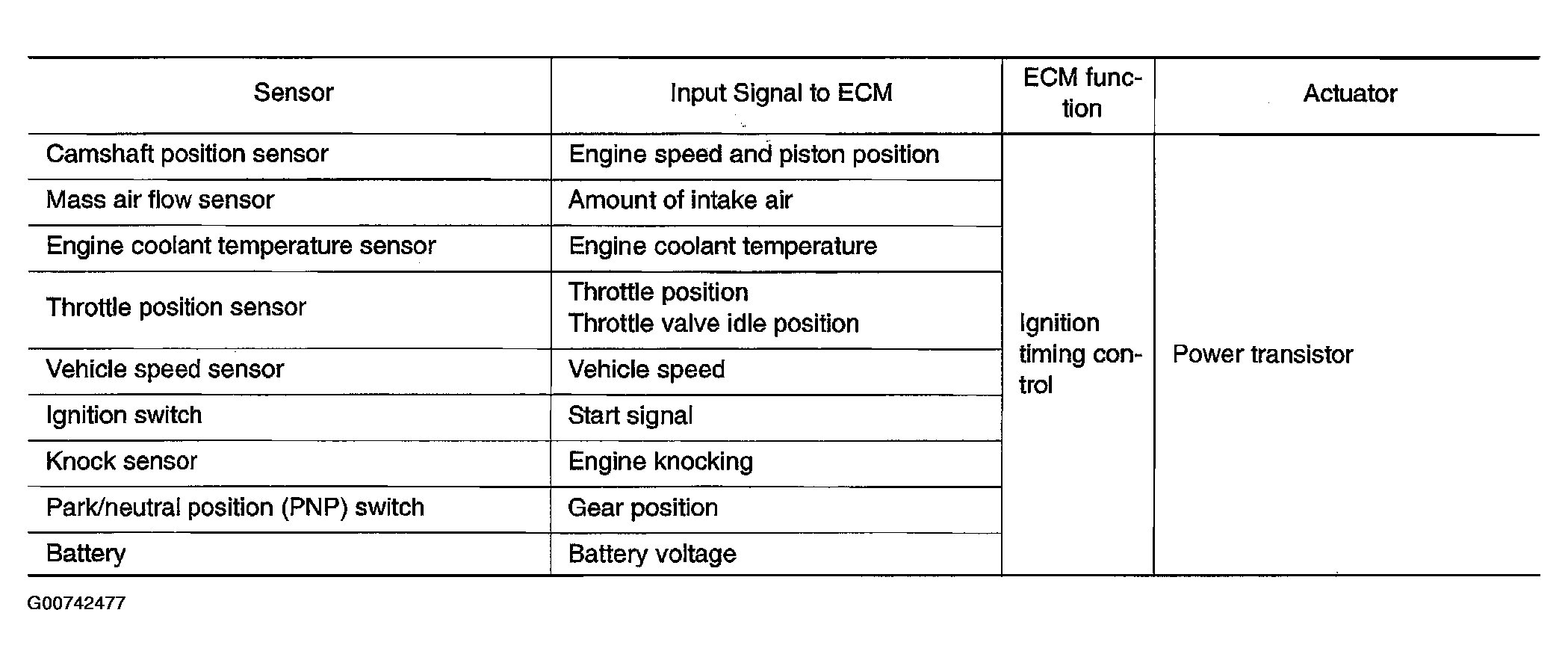

Fig 1: Input/Output Signal Chart - Distributor Ignition (DI) System
G00742477Courtesy of NISSAN MOTOR CO., U.S.A.
