DTC No. Index

WARNING: This page is about a different variant/trim than selected.

NOTE: Refer to Fig 3 for footnote references in Fig 1-Fig 3.

x: Applicable

-: Not Applicable

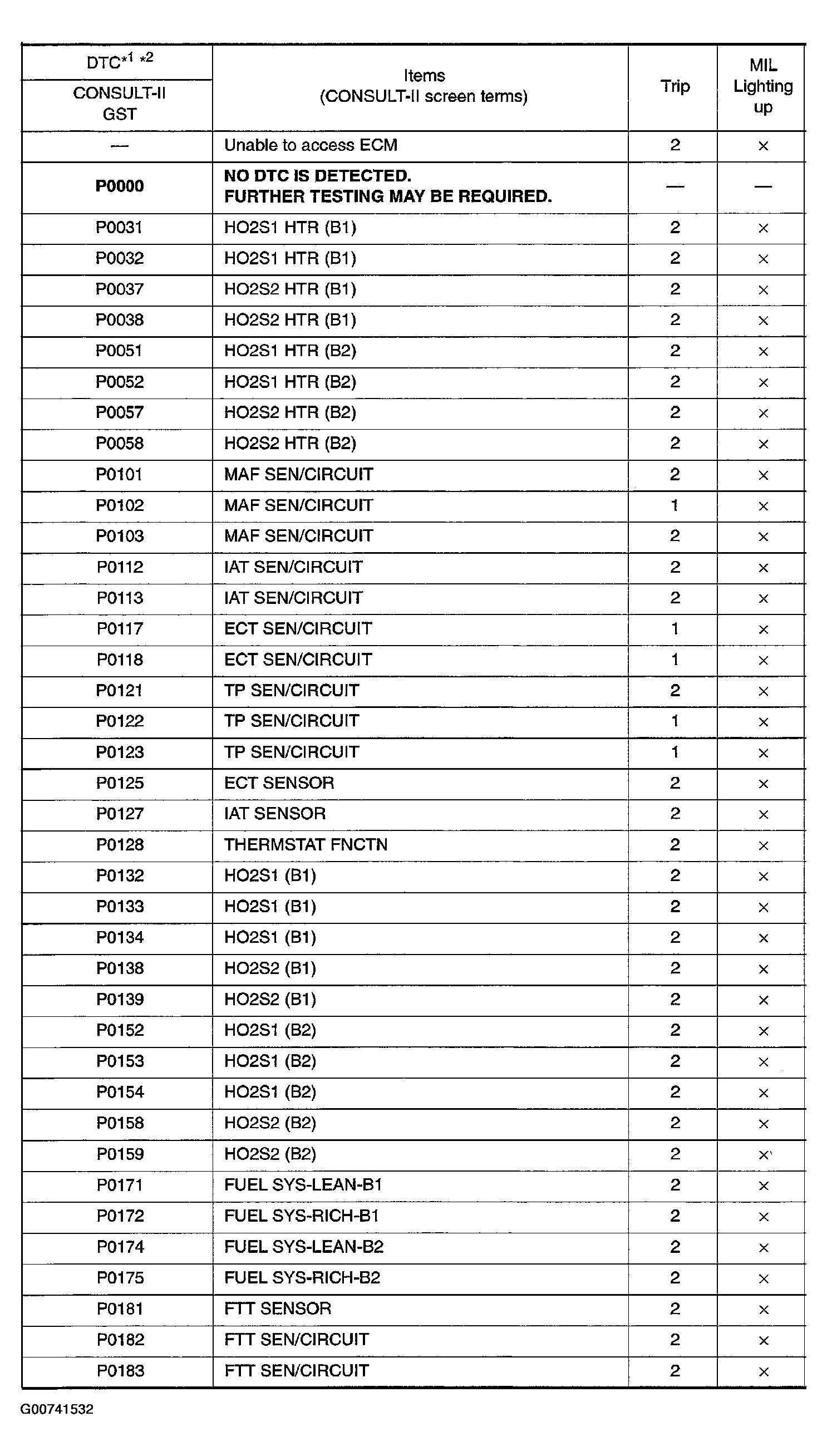

Fig 1: DTC No. Index (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

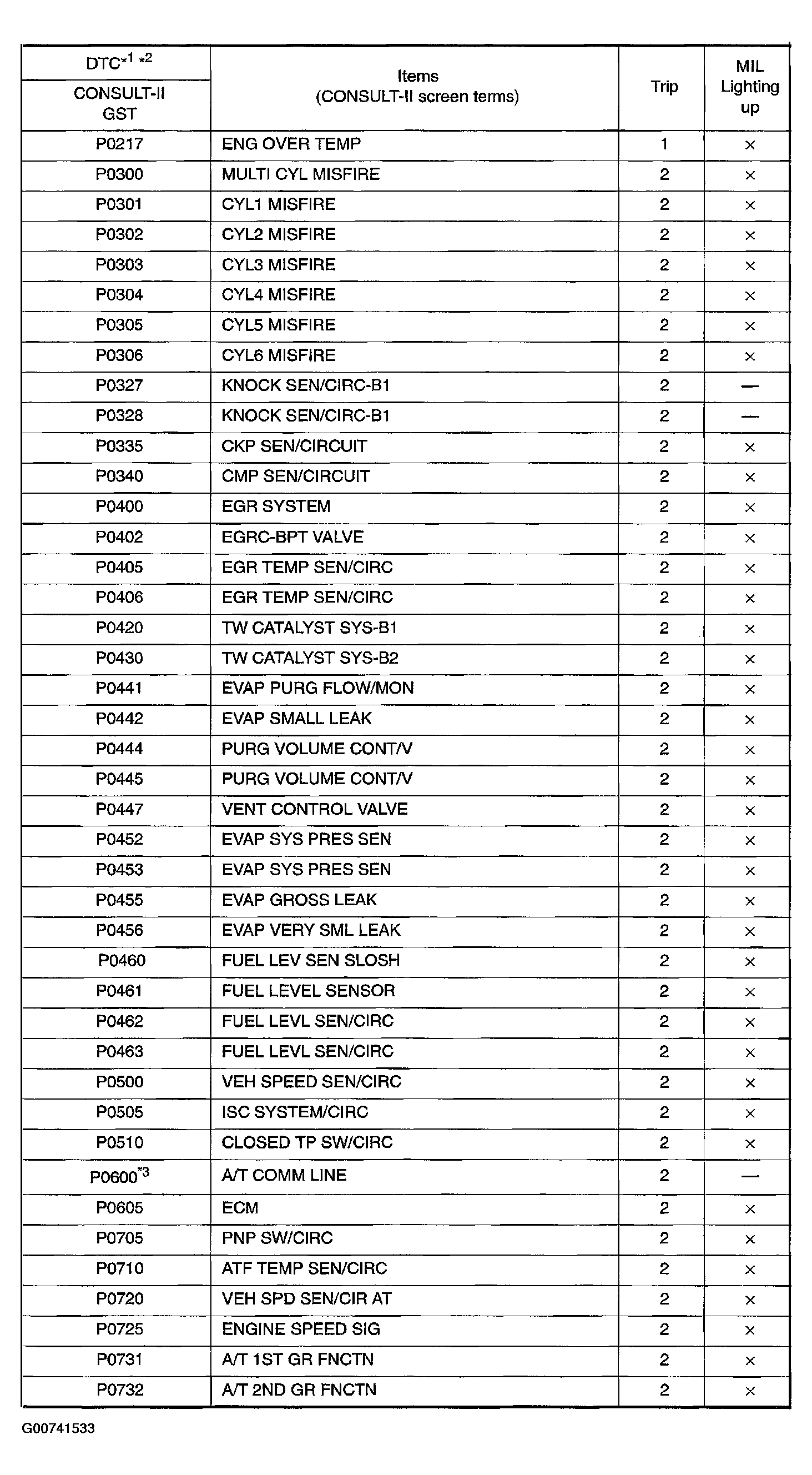

Fig 2: DTC No. Index (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

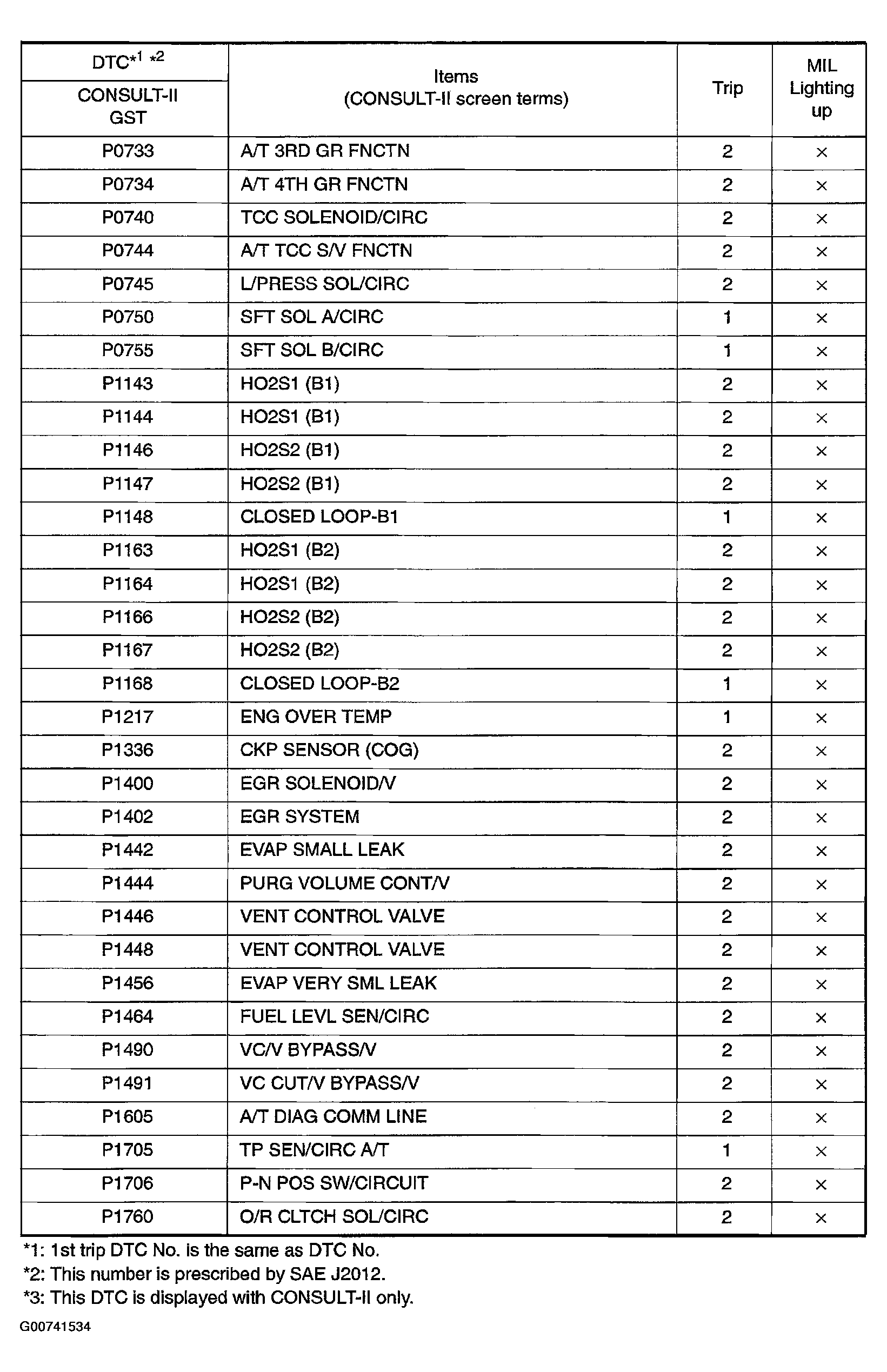

Fig 3: DTC No. Index (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

DTC INDEX

DTC	Description
DTC P0000	NO DTC DETECTED, FURTHER TESTING MAY BE REQUIRED
DTC P0031	HO2S1 HEATER
DTC P0032	HO2S1 HEATER
DTC P0037	HO2S2 HEATER
DTC P0038	HO2S2 HEATER
DTC P0051	HO2S1 HEATER
DTC P0052	HO2S1 HEATER
DTC P0057	HO2S2 HEATER
DTC P0058	HO2S2 HEATER
DTC P0101	MAF SENSOR
DTC P0102	MAF SENSOR
DTC P0103	MAF SENSOR
DTC P0112	IAT SENSOR
DTC P0113	IAT SENSOR
DTC P0117	ECT SENSOR
DTC P0118	ECT SENSOR
DTC P0121	TP SENSOR
DTC P0122	TP SENSOR
DTC P0123	TP SENSOR
DTC P0125	ECT SENSOR
DTC P0127	IAT SENSOR
DTC P0128	THERMOSTAT FUNCTION
DTC P0132	HO2S1
DTC P0133	HO2S1
DTC P0134	HO2S1
DTC P0138	HO2S2
DTC P0139	HO2S2
DTC P0152	HO2S1
DTC P0153	HO2S1
DTC P0154	HO2S1
DTC P0158	HO2S2
DTC P0159	HO2S2
DTC P0171	FUEL INJECTION SYSTEM FUNCTION
DTC P0172	FUEL INJECTION SYSTEM FUNCTION
DTC P0174	FUEL INJECTION SYSTEM FUNCTION
DTC P0175	FUEL INJECTION SYSTEM FUNCTION
DTC P0181	FTT SENSOR
DTC P0182	FTT SENSOR
DTC P0183	FTT SENSOR
DTC P0217	COOLANT OVERTEMPERATURE ENRICHMENT PROTECTION
DTC P0300	MULTIPLE CYLINDER MISFIRE
DTC P0301	NO. 1 CYLINDER MISFIRE
DTC P0302	NO. 2 CYLINDER MISFIRE
DTC P0303	NO. 3 CYLINDER MISFIRE
DTC P0304	NO. 4 CYLINDER MISFIRE
DTC P0305	NO. 5 CYLINDER MISFIRE
DTC P0306	NO. 6 CYLINDER MISFIRE
DTC P0327	KS
DTC P0328	KS
DTC P0335	CKP SENSOR (OBD)
DTC P0340	CMP SENSOR
DTC P0400	EGR FUNCTION
DTC P0402	EGRC-BPT VALVE FUNCTION
DTC P0405	EGRT SENSOR
DTC P0406	EGRT SENSOR
DTC P0420	THREE WAY CATALYST FUNCTION
DTC P0430	THREE WAY CATALYST FUNCTION
DTC P0441	EVAP CONTROL SYSTEM
DTC P0442	EVAP CONTROL SYSTEM
DTC P0444	EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
DTC P0445	EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
DTC P0447	EVAP CANISTER VENT CONTROL VALVE
DTC P0452	EVAP CONTROL SYSTEM PRESSURE SENSOR
DTC P0453	EVAP CONTROL SYSTEM PRESSURE SENSOR
DTC P0455	EVAP CONTROL SYSTEM
DTC P0456	EVAP CONTROL SYSTEM
DTC P0460	FUEL LEVEL SENSOR
DTC P0461	FUEL LEVEL SENSOR
DTC P0462	FUEL LEVEL SENSOR
DTC P0463	FUEL LEVEL SENSOR
DTC P0500	VSS
DTC P0505	ISC SYSTEM
DTC P0510	CLOSED TP SWITCH
DTC P0600	A/T COMMUNICATION LINE
DTC P0605	ECM
DTC P1143	HO2S1
DTC P1144	HO2S1
DTC P1146	HO2S2
DTC P1147	HO2S2
DTC P1148	CLOSED LOOP CONTROL
DTC P1163	HO2S1
DTC P1164	HO2S1
DTC P1166	HO2S2
DTC P1167	HO2S2
DTC P1168	CLOSED LOOP CONTROL
DTC P1217	ENGINE OVER TEMPERATURE (OVERHEAT)
DTC P1336	CKP SENSOR (OBD)
DTC P1400	EGRC-SOLENOID VALVE
DTC P1402	EGR FUNCTION
DTC P1442	EVAP CONTROL SYSTEM
DTC P1444	EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
DTC P1446	EVAP CANISTER VENT CONTROL VALVE
DTC P1448	EVAP CANISTER VENT CONTROL VALVE
DTC P1456	EVAP CONTROL SYSTEM
DTC P1464	FUEL LEVEL SENSOR
DTC P1490	VACUUM CUT VALVE BYPASS VALVE
DTC P1491	VACUUM CUT VALVE BYPASS VALVE
DTC P1605	A/T DIAGNOSIS COMMUNICATION LINE
DTC P1706	PNP SWITCH
