Power Steering Oil Pump: Components

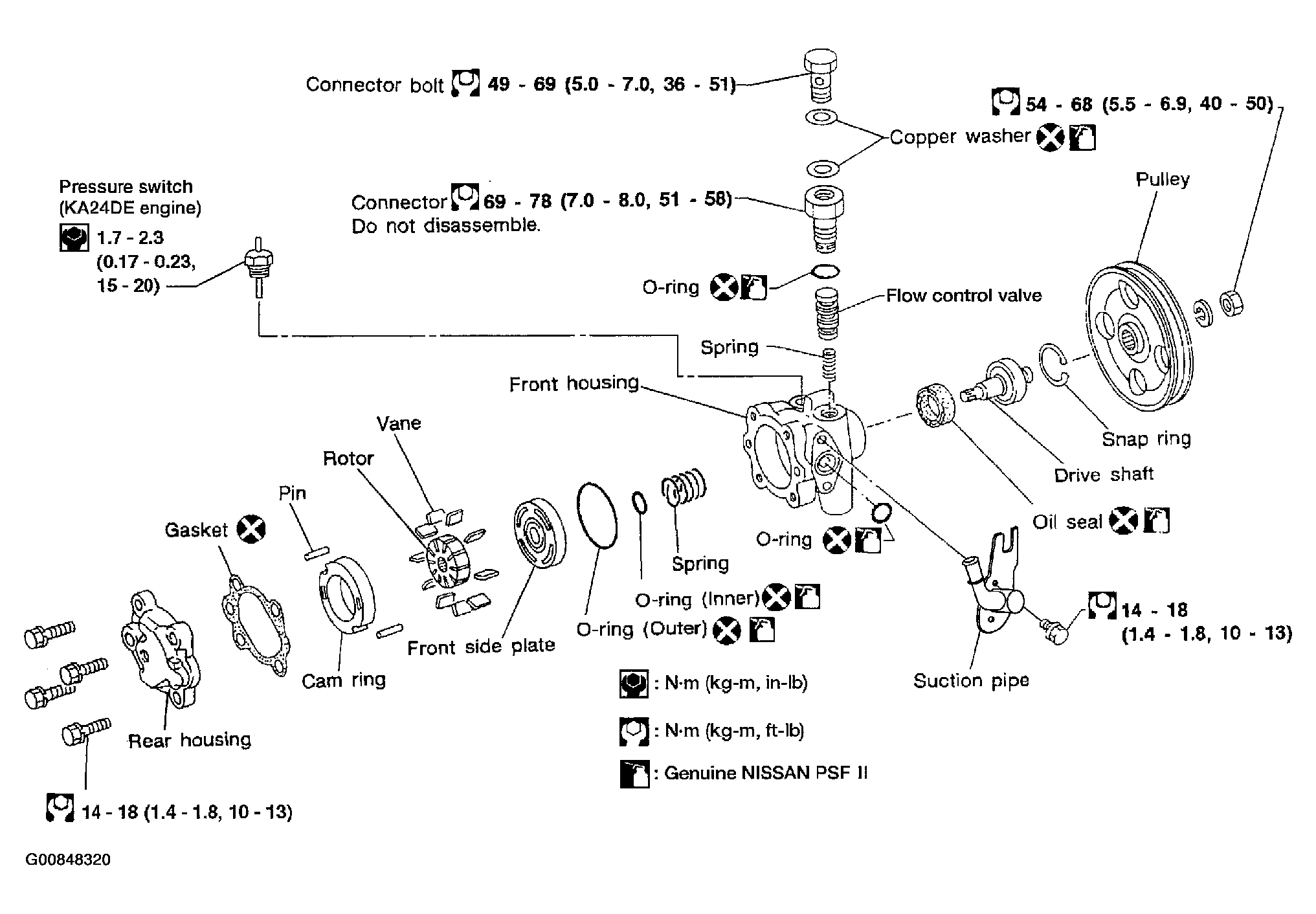

Fig 1: Power Steering Oil Pump Replacement Components Including Torque Specs
G00848320Courtesy of NISSAN MOTOR CO., U.S.A.
