With CONSULT-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and warm it up to normal operating temperature.
  4. Run engine for at least 10 seconds at idle speed.
  5. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

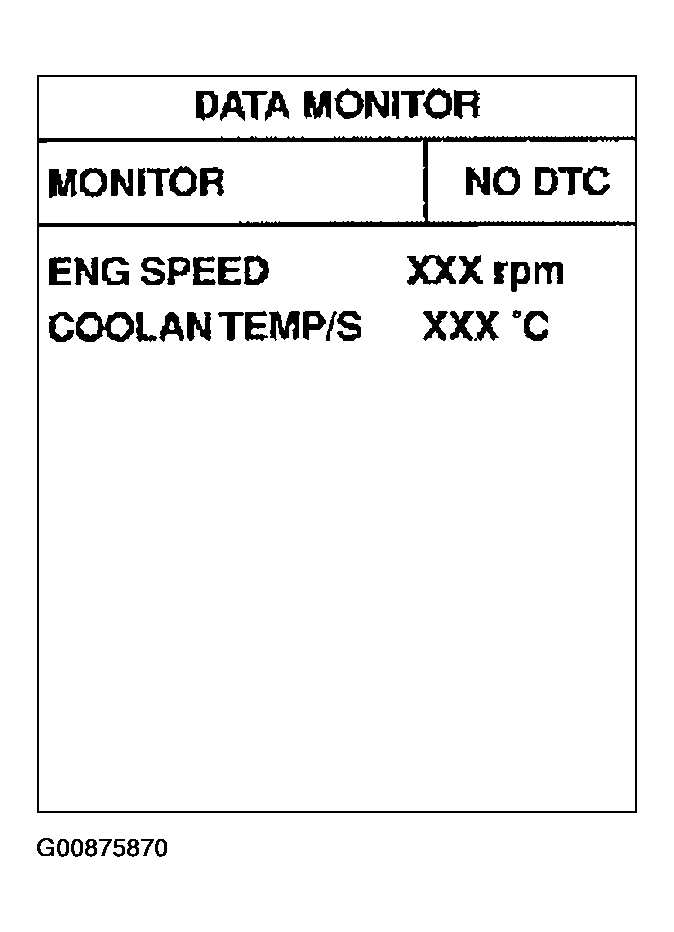

Fig 1: CONSULT-II Display Screen
G00875870Courtesy of NISSAN MOTOR CO., U.S.A.
