Engine Coolant Temperature Sensor

Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in Fig 1 . See Figure.

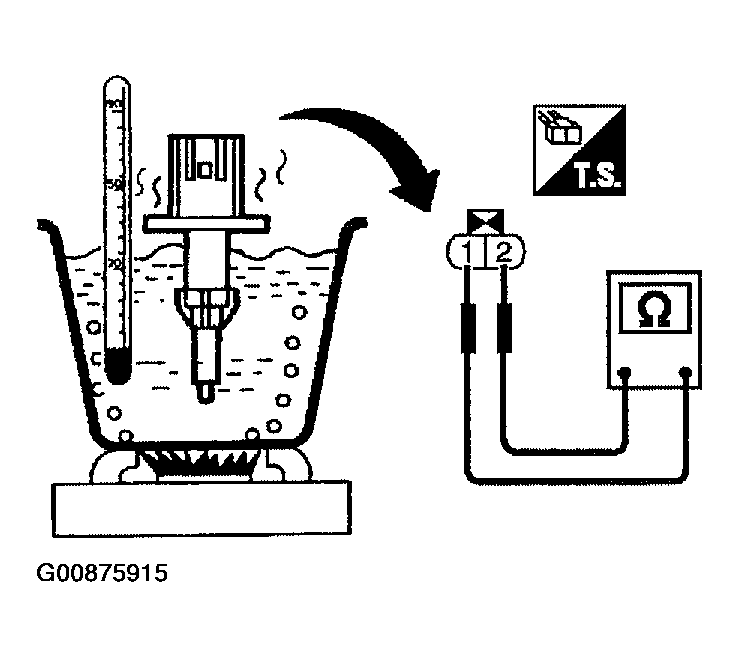

Fig 1: Testing ECT Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data >

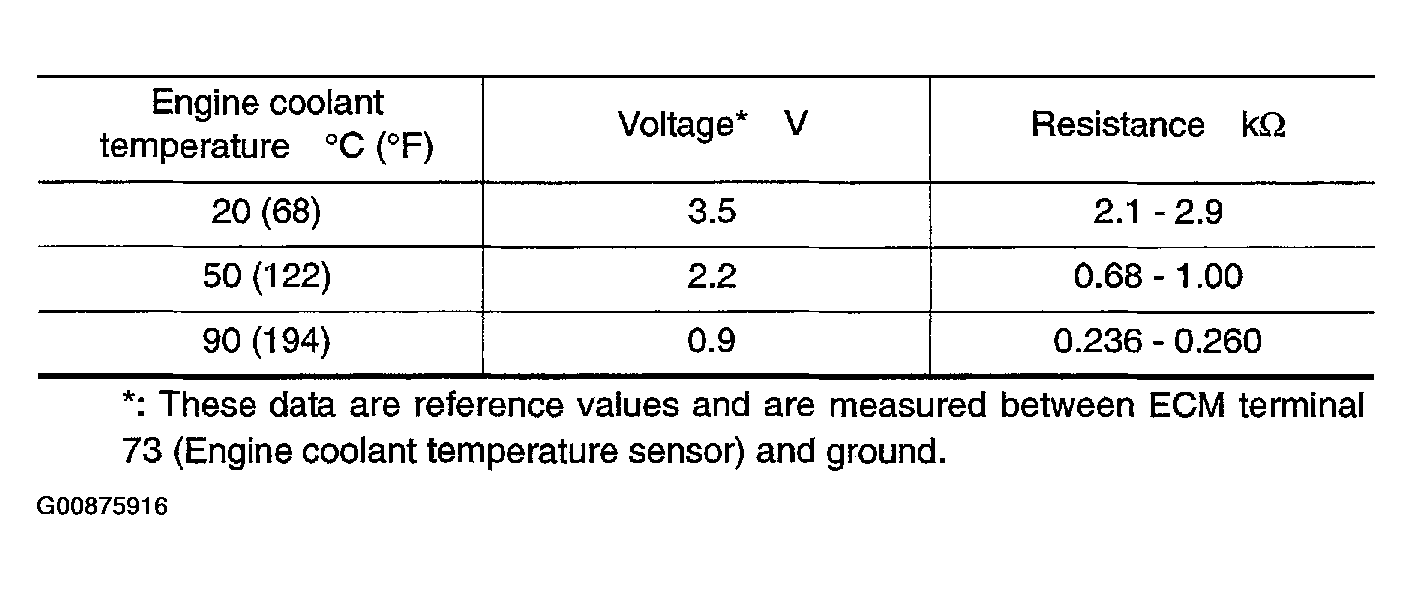

Fig 2: Reference Data
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace engine coolant temperature sensor.
