With GST

  1. Maintain the following conditions for at least 10 consecutive seconds.

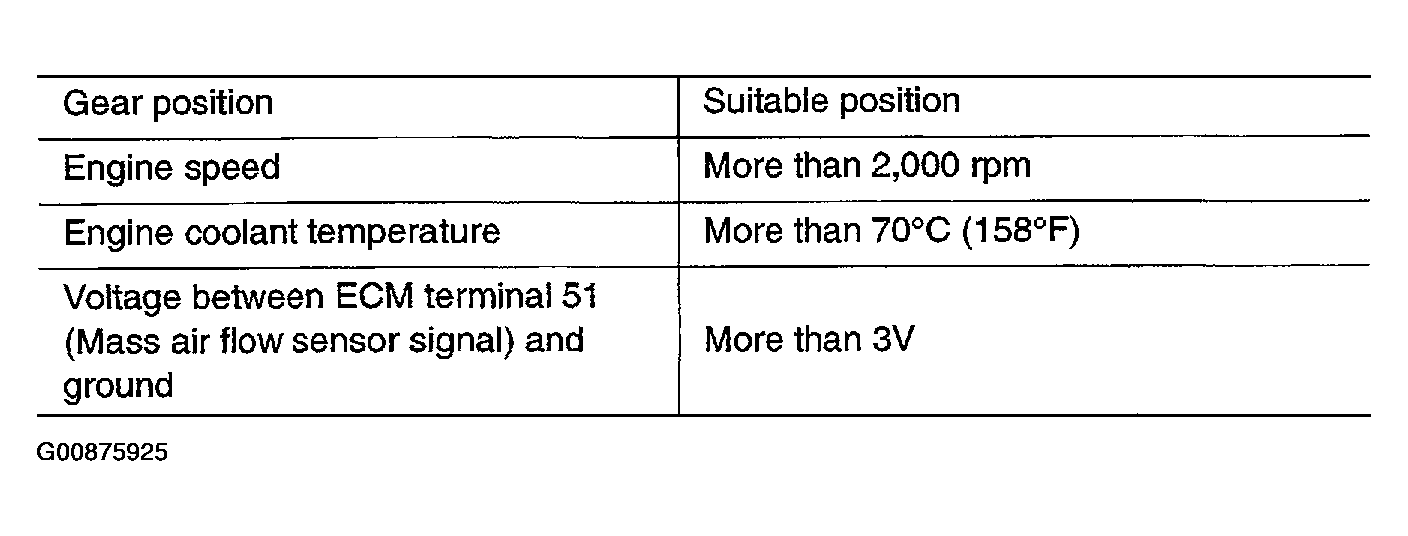

    Fig 1: Maintain The Following Conditions For At Least 10 Consecutive Seconds
    G00875925Courtesy of NISSAN MOTOR CO., U.S.A.

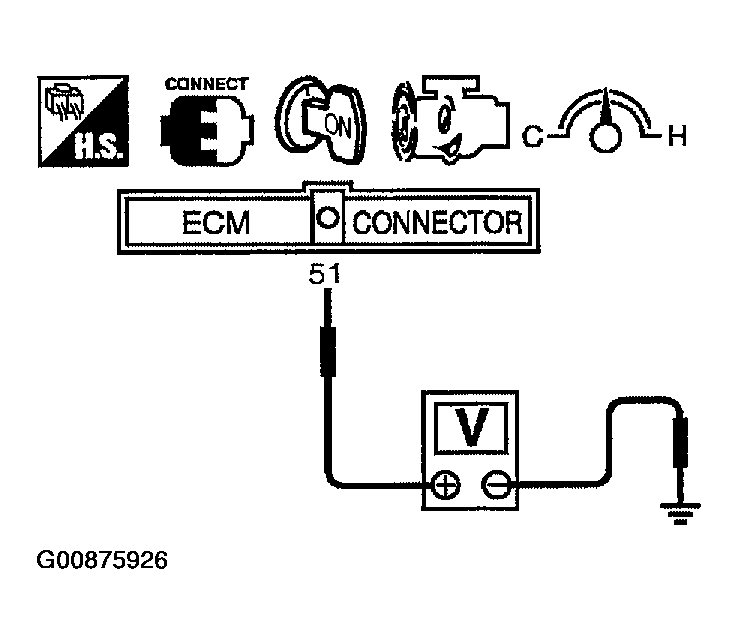

    Fig 2: Check Voltage
    G00875926Courtesy of NISSAN MOTOR CO., U.S.A.
  2. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
