Without CONSULT-II

  1. Start engine.
  2. Listen to each injector operating sound.
    1. Clicking noise should be heard.

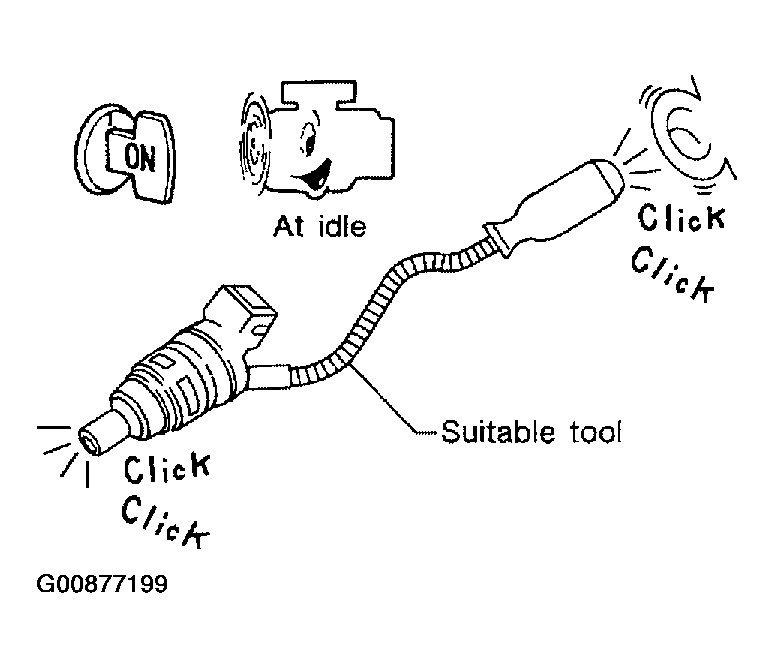

Fig 1: Listen To Each Injector Operating Sound
G00877199Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 8.
  2. NG: Perform trouble diagnosis for INJECTORS, refer to "INJECTOR CIRCUIT ".
