Fuel Tank Temperature Sensor

  1. Remove fuel level sensor unit.
  2. Check resistance between "fuel level sensor unit and fuel pump" terminals 4 and 5 by heating with hot water or heat gun as shown in the figure.

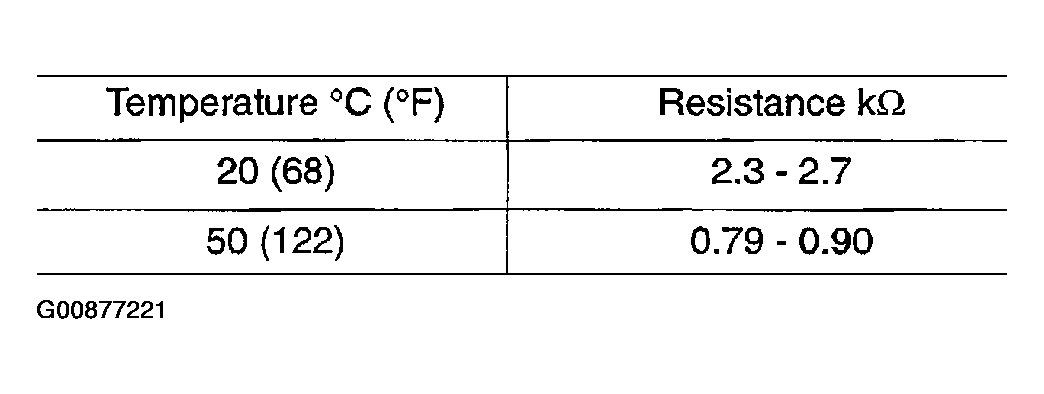

Fig 1: Resistance Specification
G00877221Courtesy of NISSAN MOTOR CO., U.S.A.

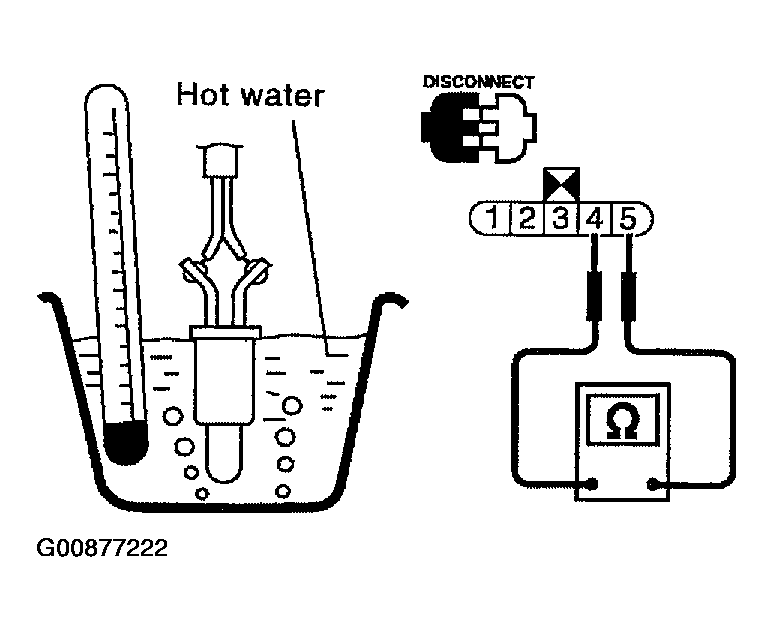

Fig 2: Testing Fuel Tank Temperature Sensor
G00877222Courtesy of NISSAN MOTOR CO., U.S.A.
