Fuel Tank Temperature Sensor

  1. Remove fuel level sensor unit.
  2. Check resistance between "fuel level sensor unit and fuel pump" terminals 4 and 5 by heating with hot water or heat gun as shown in the figure.

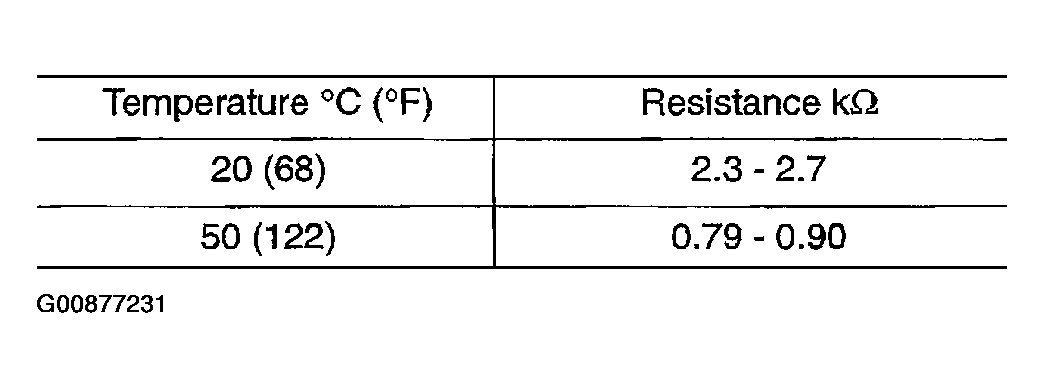

Fig 1: Test Parameters
G00877231Courtesy of NISSAN MOTOR CO., U.S.A.

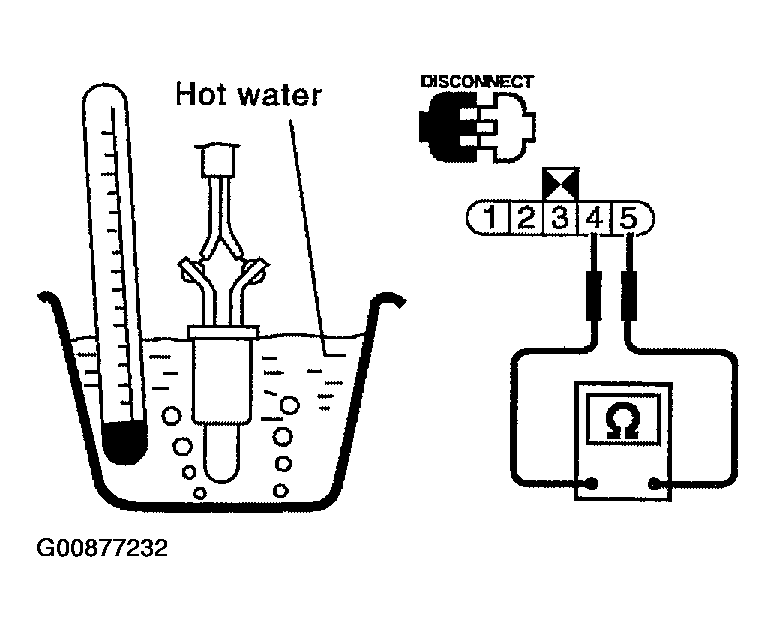

Fig 2: Fuel Tank Temperature Sensor Component Inspection
G00877232Courtesy of NISSAN MOTOR CO., U.S.A.
