10. Check If EVAP Canister Saturated With Water

1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
2. Does water drain from the EVAP canister?

Yes or No

1. Yes: GO TO 11.
2. No (With CONSULT-II): GO TO 13 .
3. No (Without CONSULT-II): GO TO 14 .

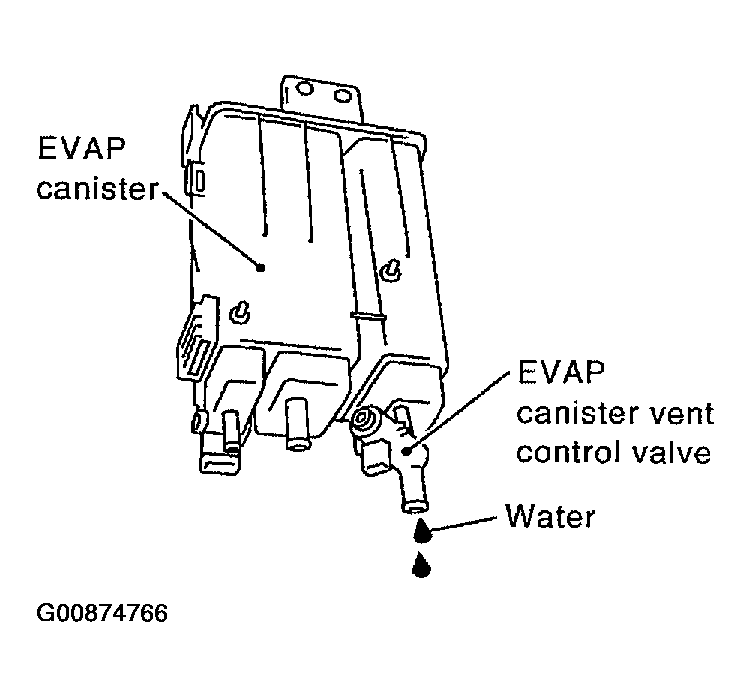

Fig 1: Check If EVAP Canister Saturated With Water

Courtesy of NISSAN MOTOR CO., U.S.A.
