2. Check Throttle Control Motor Relay Input Signal Circuit-I

1. Check voltage between ECM terminal 3 and ground under the following conditions with CONSULT-II or tester.

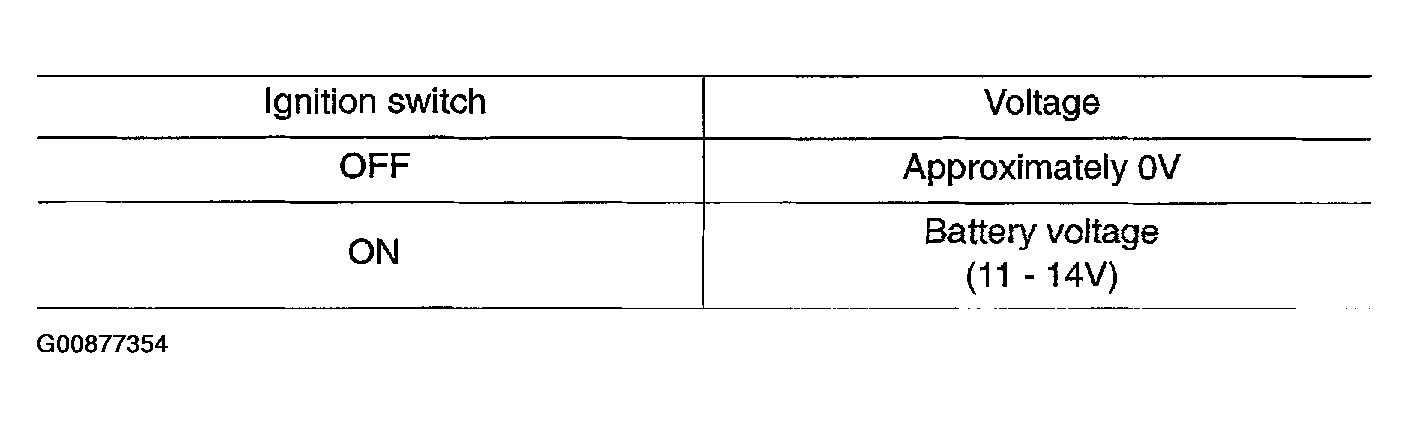

   Fig 1: Test Specifications

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 10 .
2. NG: GO TO 3.

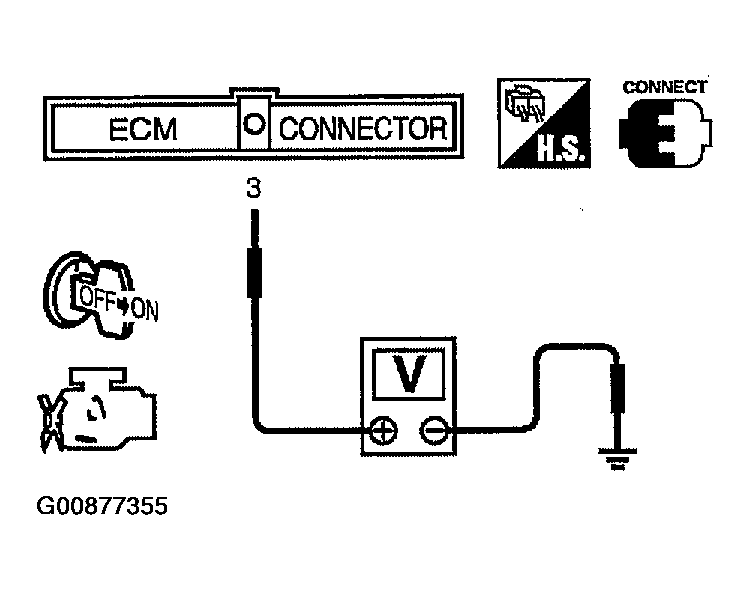

Fig 2: Check Throttle Control Motor Relay Input Signal Circuit-I

Courtesy of NISSAN MOTOR CO., U.S.A.
