ASCD Steering Switch

  1. Disconnect combination switch (spiral cable).
  2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.

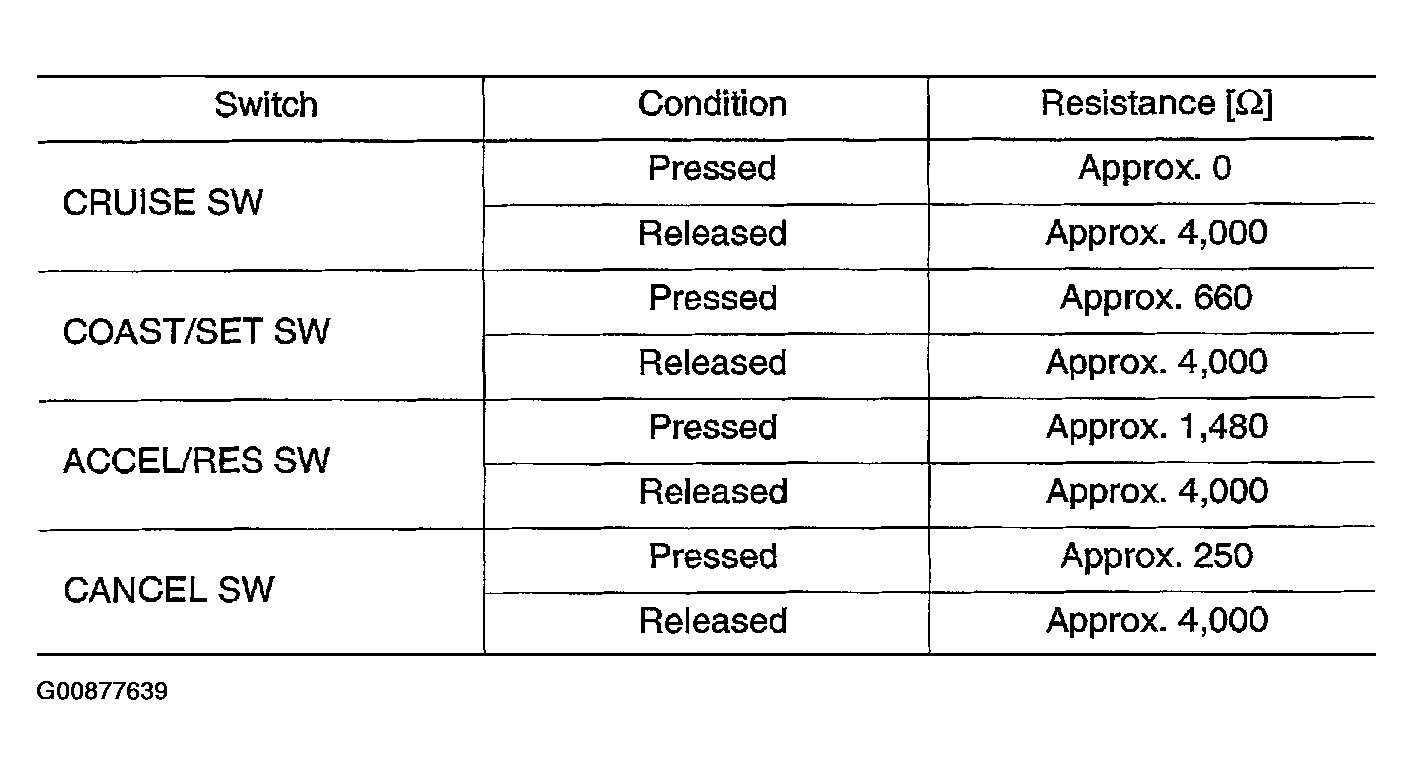

Fig 1: Check Continuity Between Combination Switch (Spiral Cable) Terminals 14 And 15 With Pushing Each Switch
G00877639Courtesy of NISSAN MOTOR CO., U.S.A.

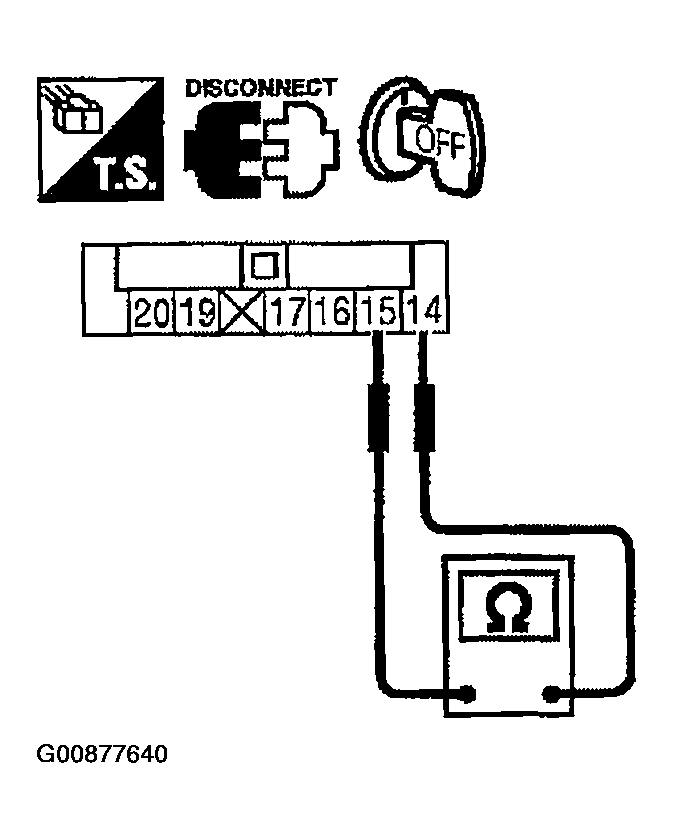

Fig 2: Check Continuity
G00877640Courtesy of NISSAN MOTOR CO., U.S.A.
