ASCD Clutch Switch

Turn ignition switch OFF.
Disconnect ASCD clutch switch harness connector.
Check harness continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.

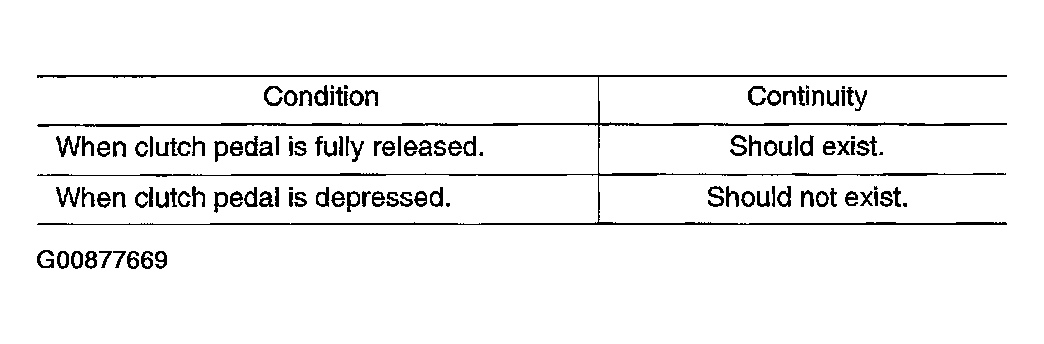

Fig 1: Test Parameters
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust ASCD clutch switch installation, refer to ON-VEHICLE INSPECTION AND ADJUSTMENT , and perform step 3 again.

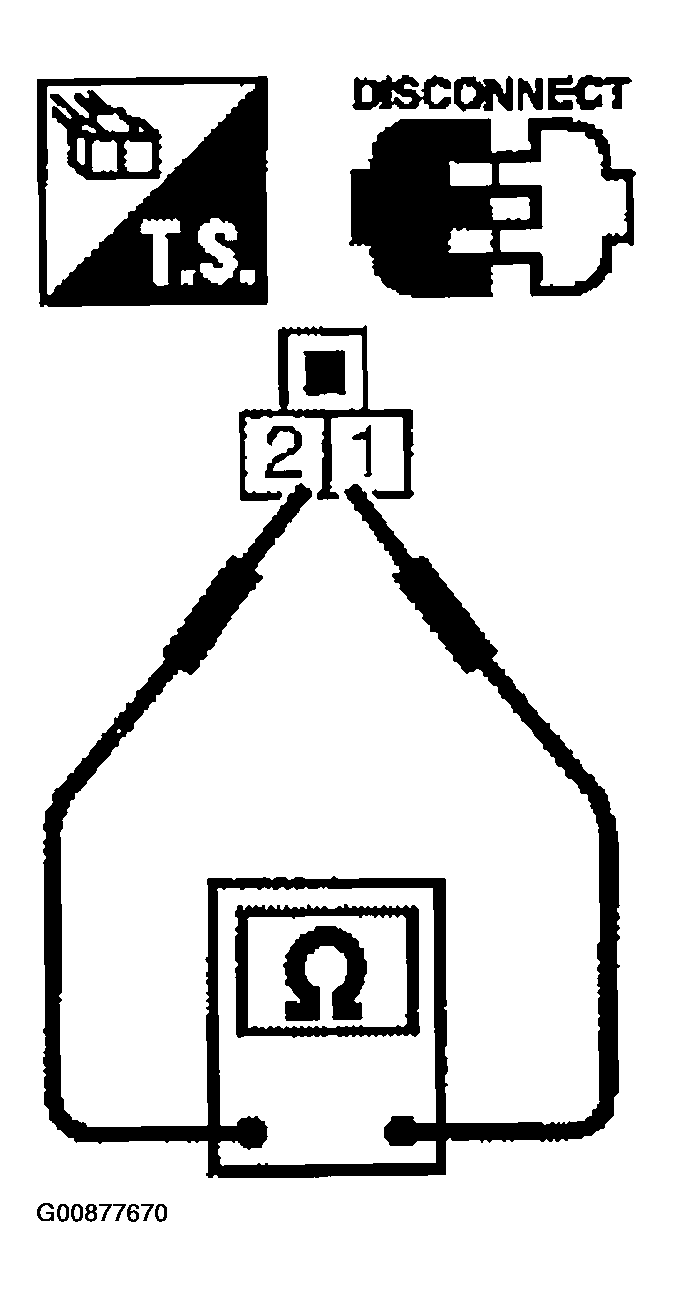

Fig 2: Check Harness Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.
