With CONSULT-II

  1. Start engine (TCS switch or VDC switch OFF).
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Drive the vehicle at more than 40 km/h (25 MPH).
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

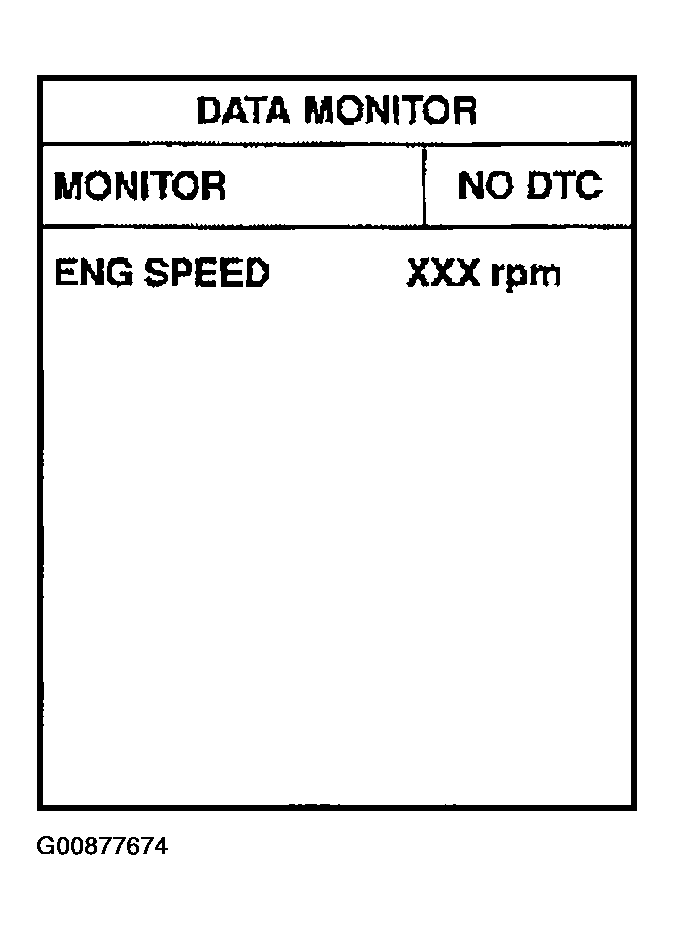

Fig 1: CONSULT-II Display Screen
G00877674Courtesy of NISSAN MOTOR CO., U.S.A.
