3. Check ASCD Clutch Switch Circuit

1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.
3. Turn ignition switch ON.

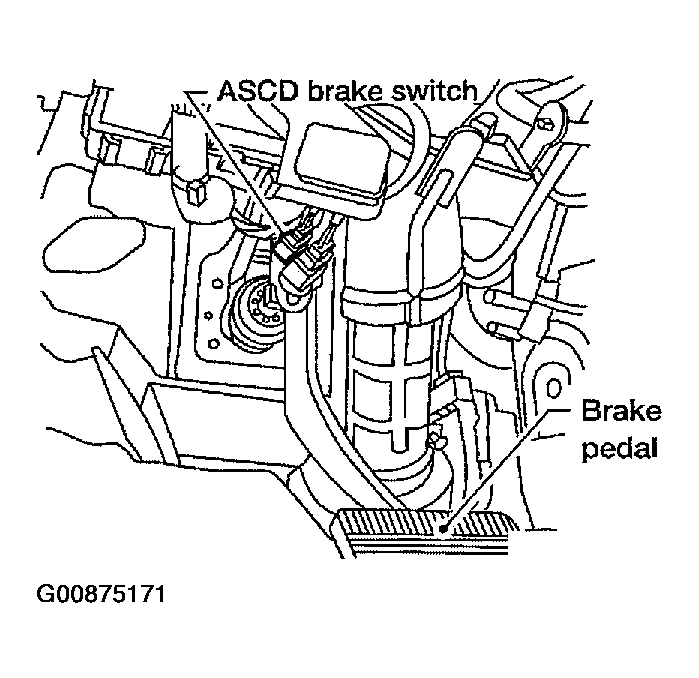

   Fig 1: Disconnect ASCD Brake Switch Harness Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check voltage between ASCD brake switch terminal 1 and ground under the following conditions with CONSULT-II or tester.

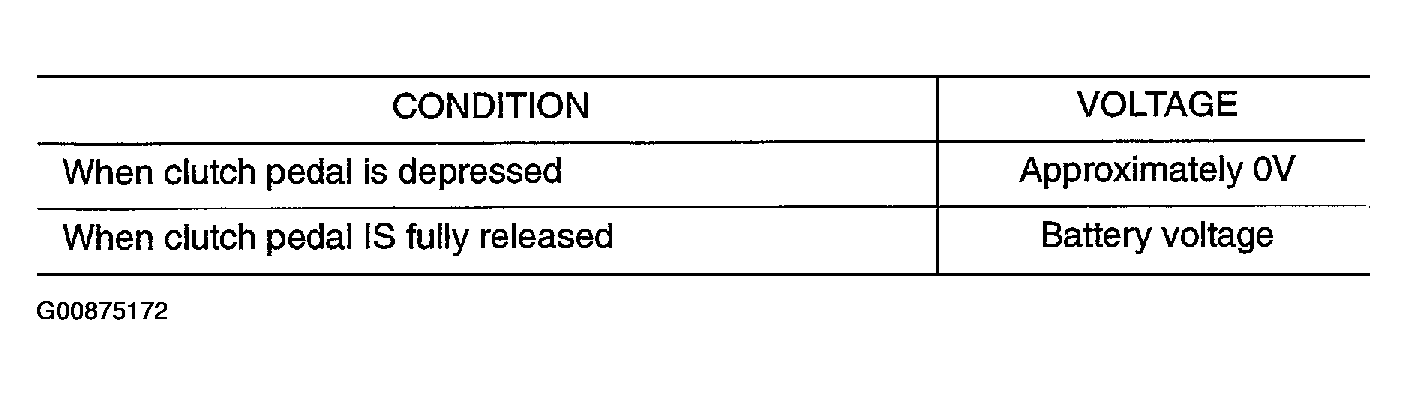

Fig 2: Test Parameters

Courtesy of NISSAN MOTOR CO., U.S.A.

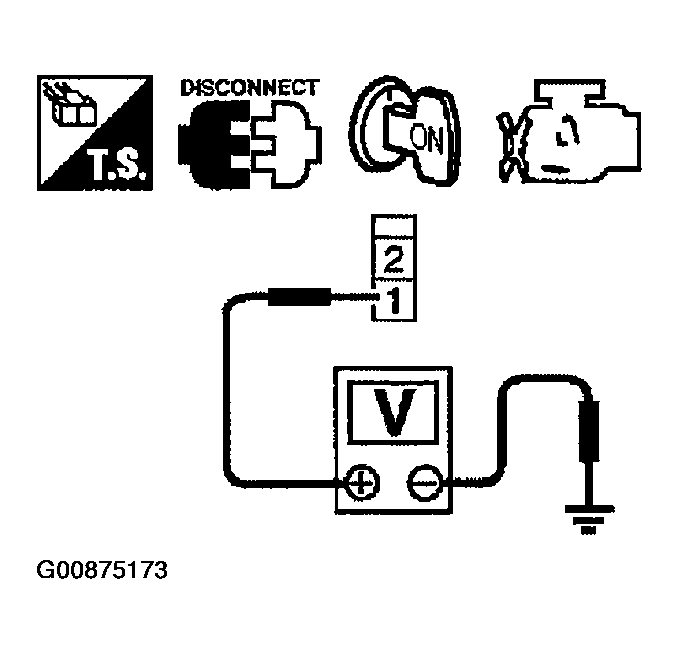

Fig 3: Check ASCD Clutch Switch Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : GO TO 10.
2. NG : GO TO 4.
