Fuel Pump

  1. Disconnect fuel level sensor unit and fuel pump harness connector.
  2. Check resistance between fuel level sensor unit and fuel pump terminals 1 and 3.
  3. Resistance: Approximately 1.0Ω [at 25°C (77°F)]

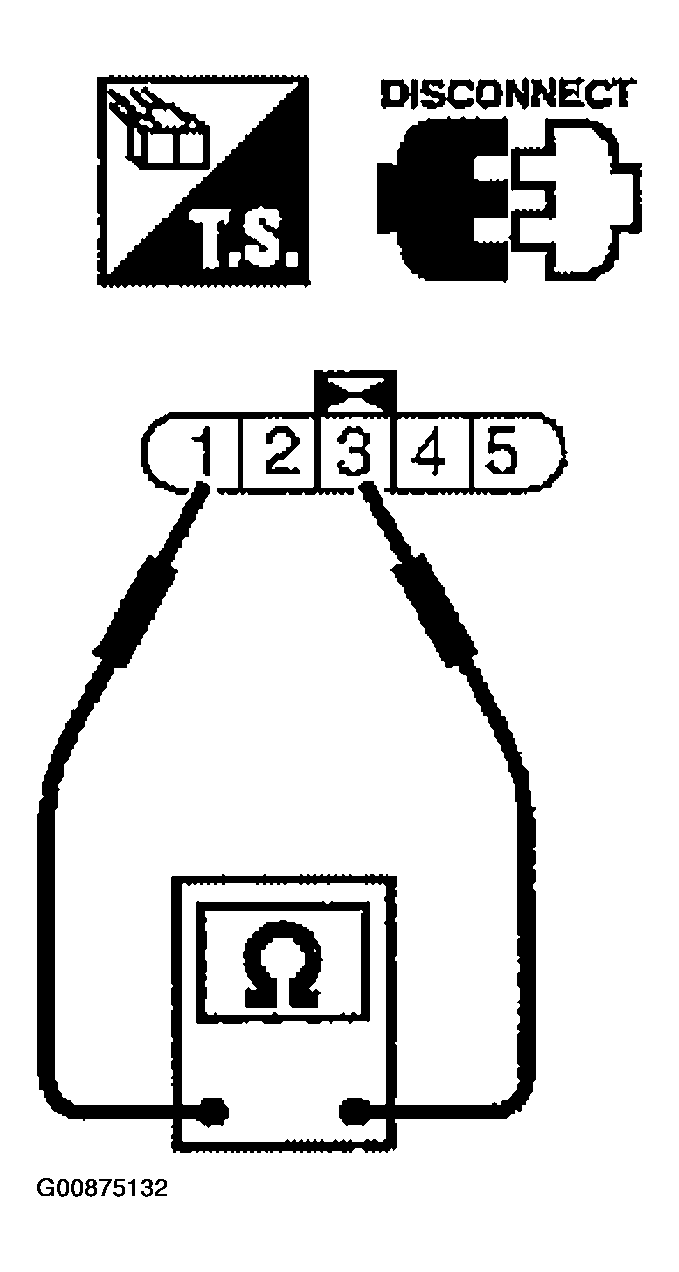

Fig 1: Check Resistance
G00875132Courtesy of NISSAN MOTOR CO., U.S.A.
