Component Description

A turbine type design fuel pump is used in the furl tank.

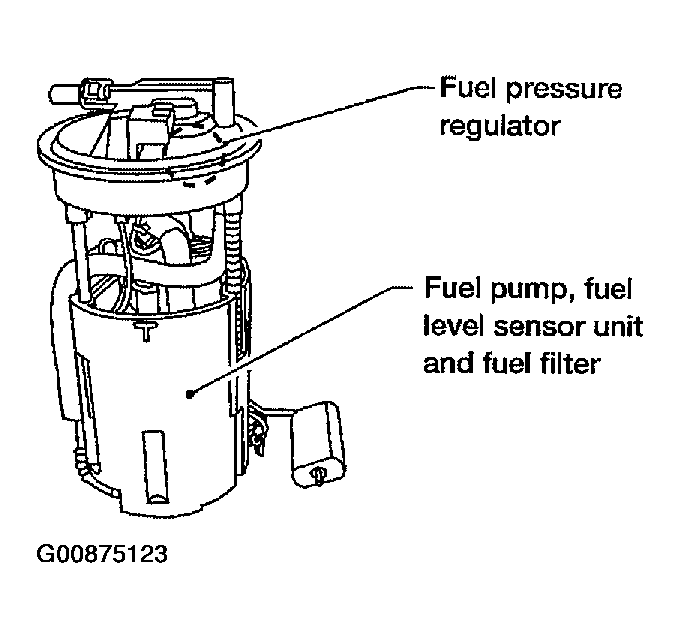

Fig 1: Component Description
G00875123Courtesy of NISSAN MOTOR CO., U.S.A.
