Ignition Signal: Wiring Diagram

For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

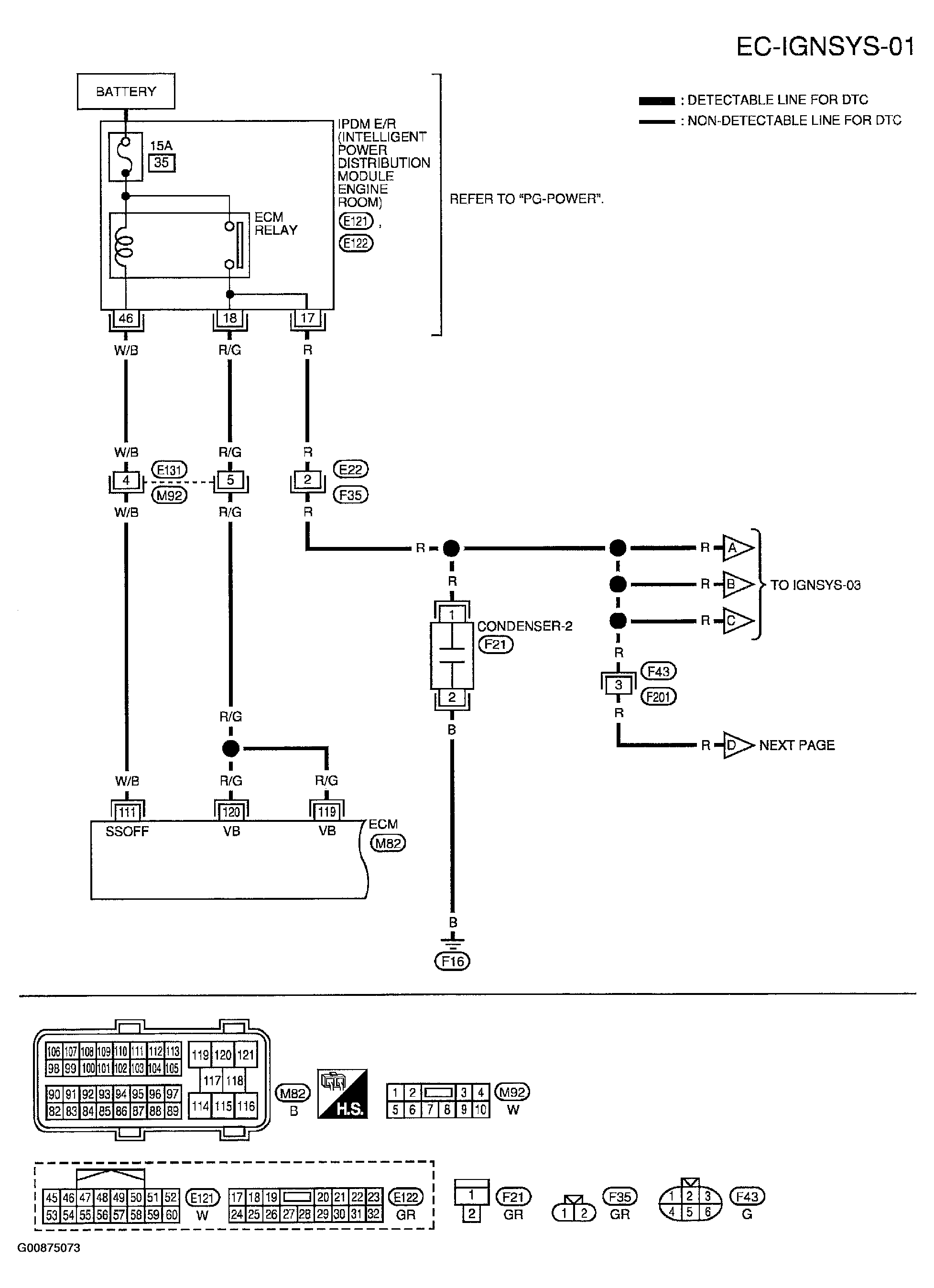

Fig 1: Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

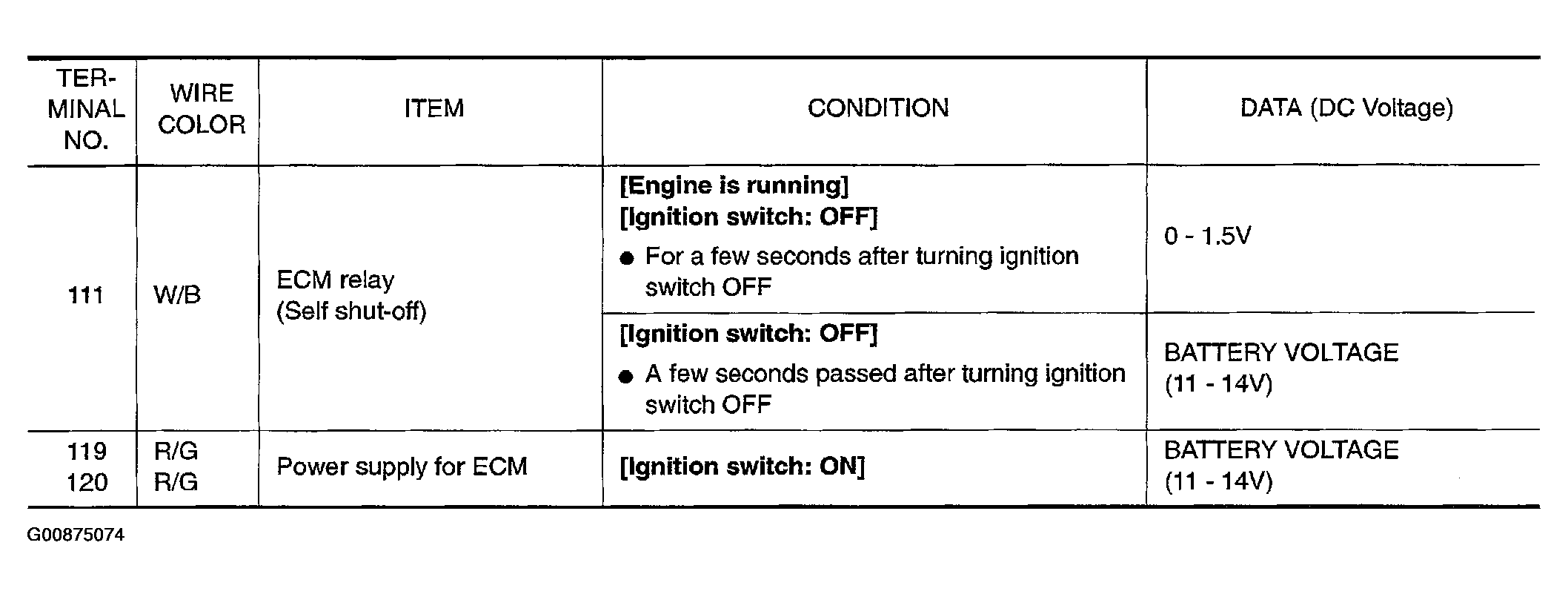

Fig 2: Specification Data And Reference Values

Courtesy of NISSAN MOTOR CO., U.S.A.

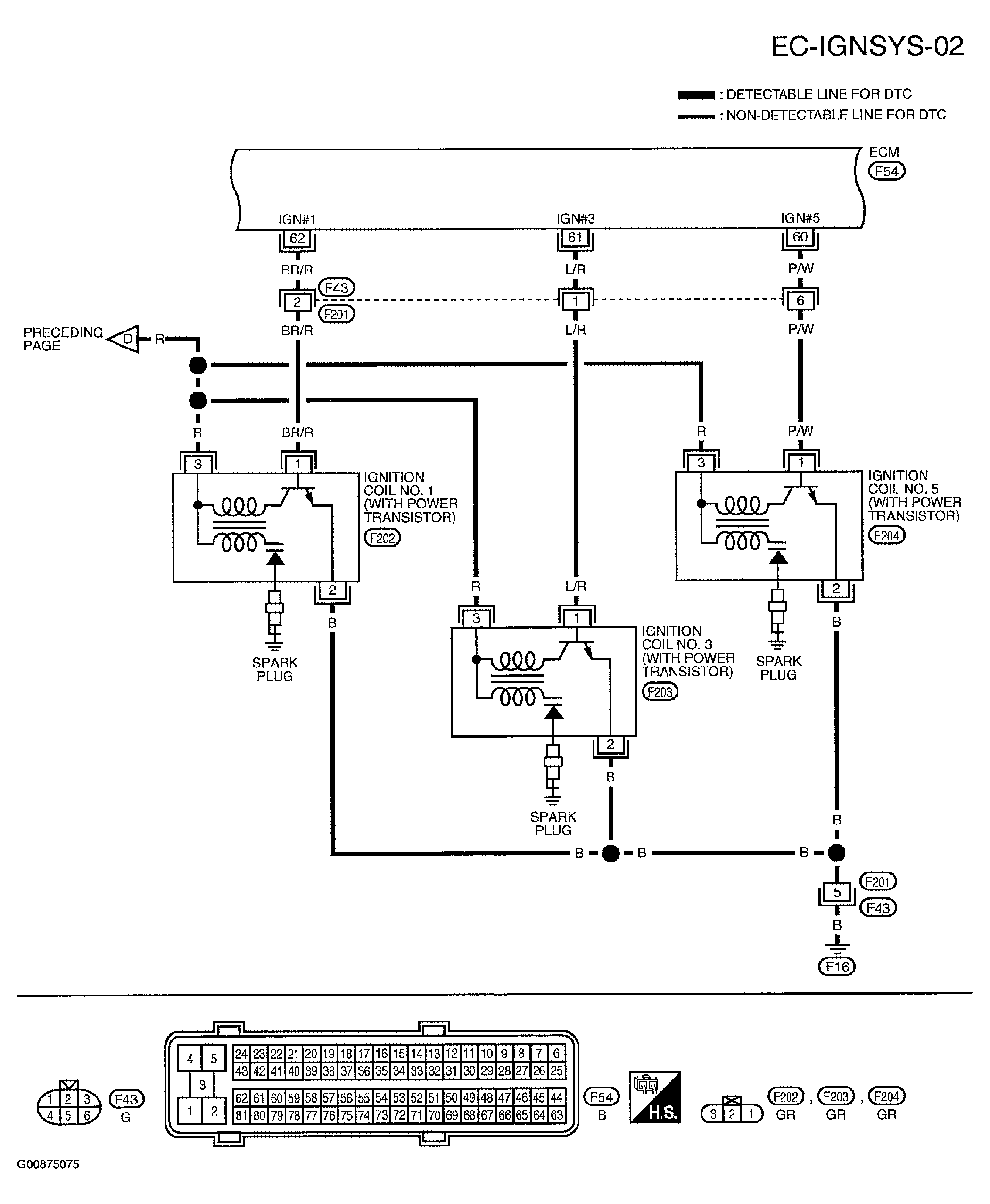

Fig 3: Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Fig 4: Specification Data And Reference Values

Courtesy of NISSAN MOTOR CO., U.S.A.

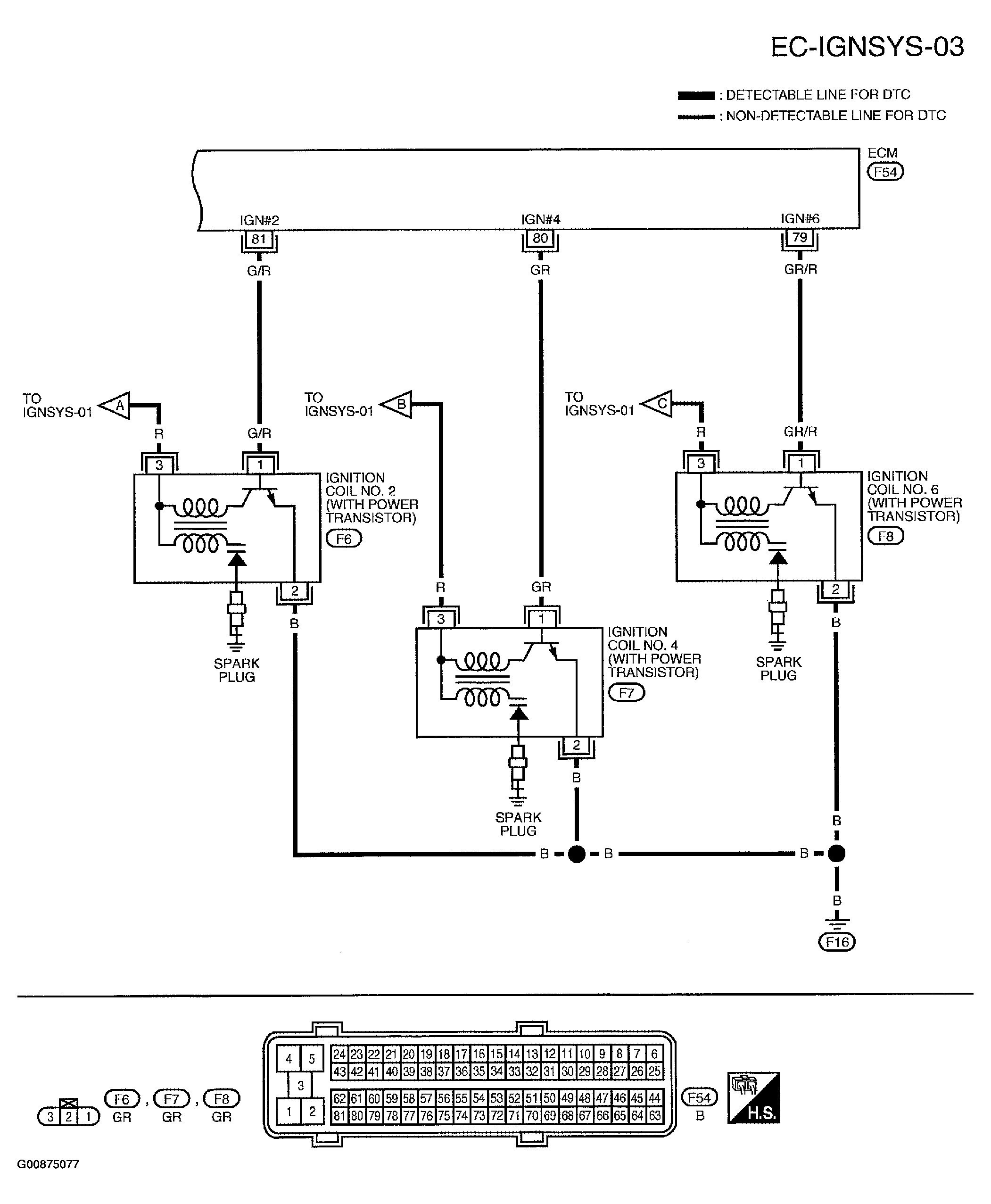

Fig 5: Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

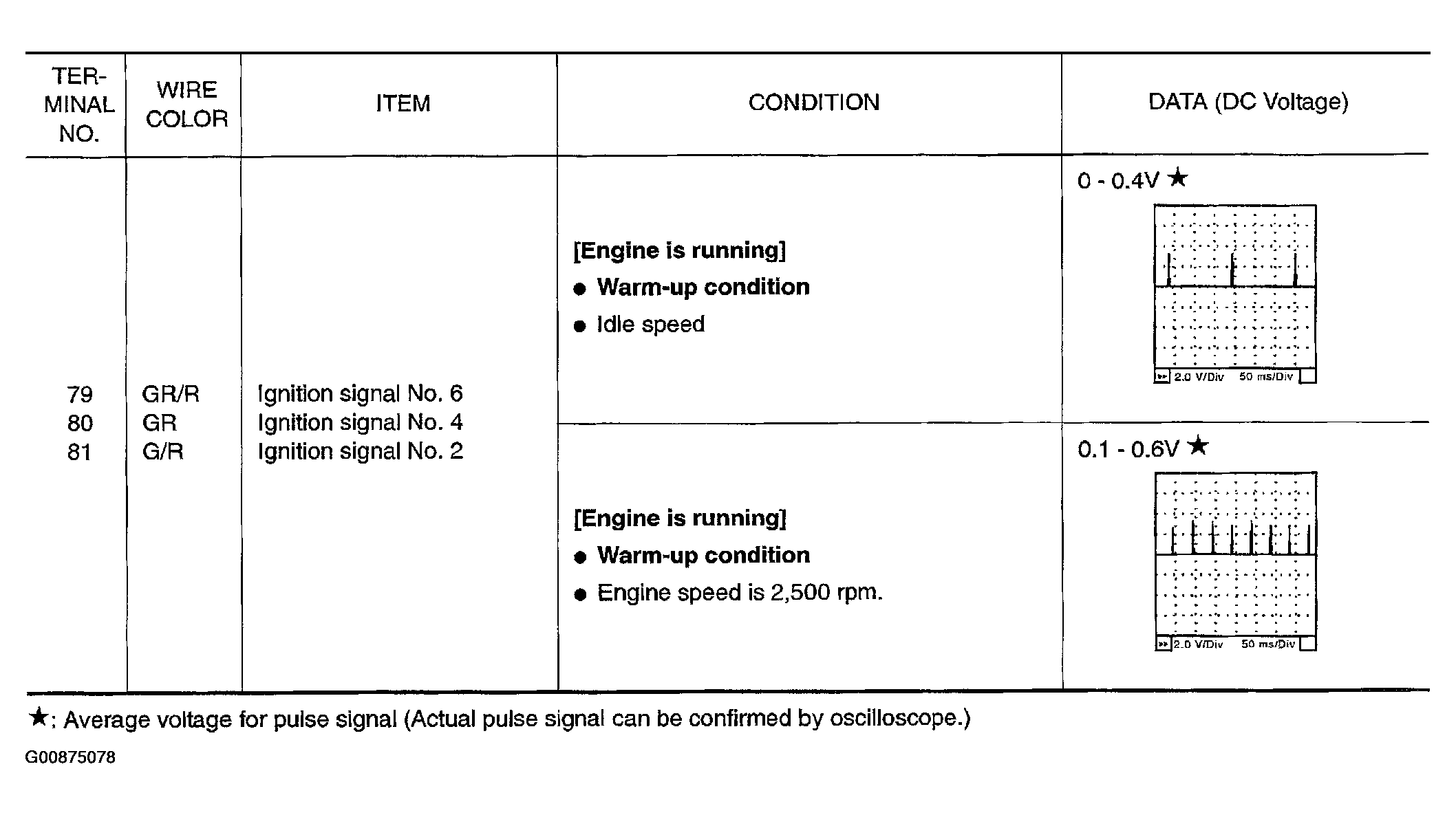

Fig 6: Specification Data And Reference Values

Courtesy of NISSAN MOTOR CO., U.S.A.
