Intake Air Temperature Sensor

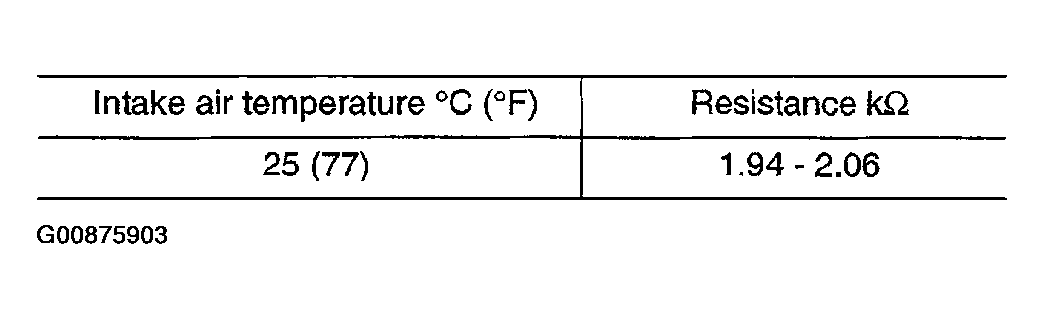

- Check resistance between mass air flow sensor terminals 1 and 2 under the following conditions. See Figure.
Courtesy of NISSAN MOTOR CO., U.S.A.
- If NG, replace mass air flow sensor (with intake air temperature sensor). See Figure.
