5. Check Injectors

1. Let engine idle.
2. Check voltage between ECM terminals 21, 22, 23, 40, 41, 42 and ground with CONSULT-II or tester.

   Refer to WIRING DIAGRAM for Injectors, WIRING DIAGRAM .

   For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

   1. Battery voltage should exist.

OK or NG

1. OK: GO TO 6.
2. NG: Perform "DIAGNOSTIC PROCEDURE ".

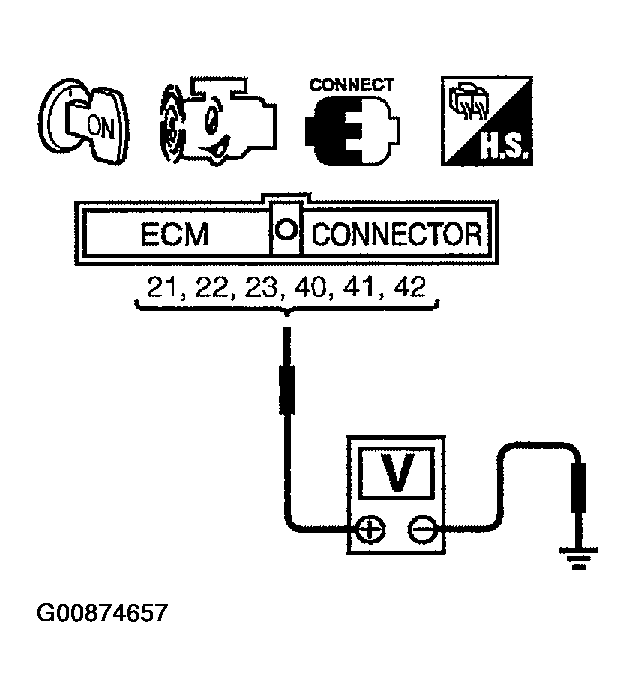

Fig 1: Checking Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.
