DTC P0101: MAF Sensor: Wiring Diagram

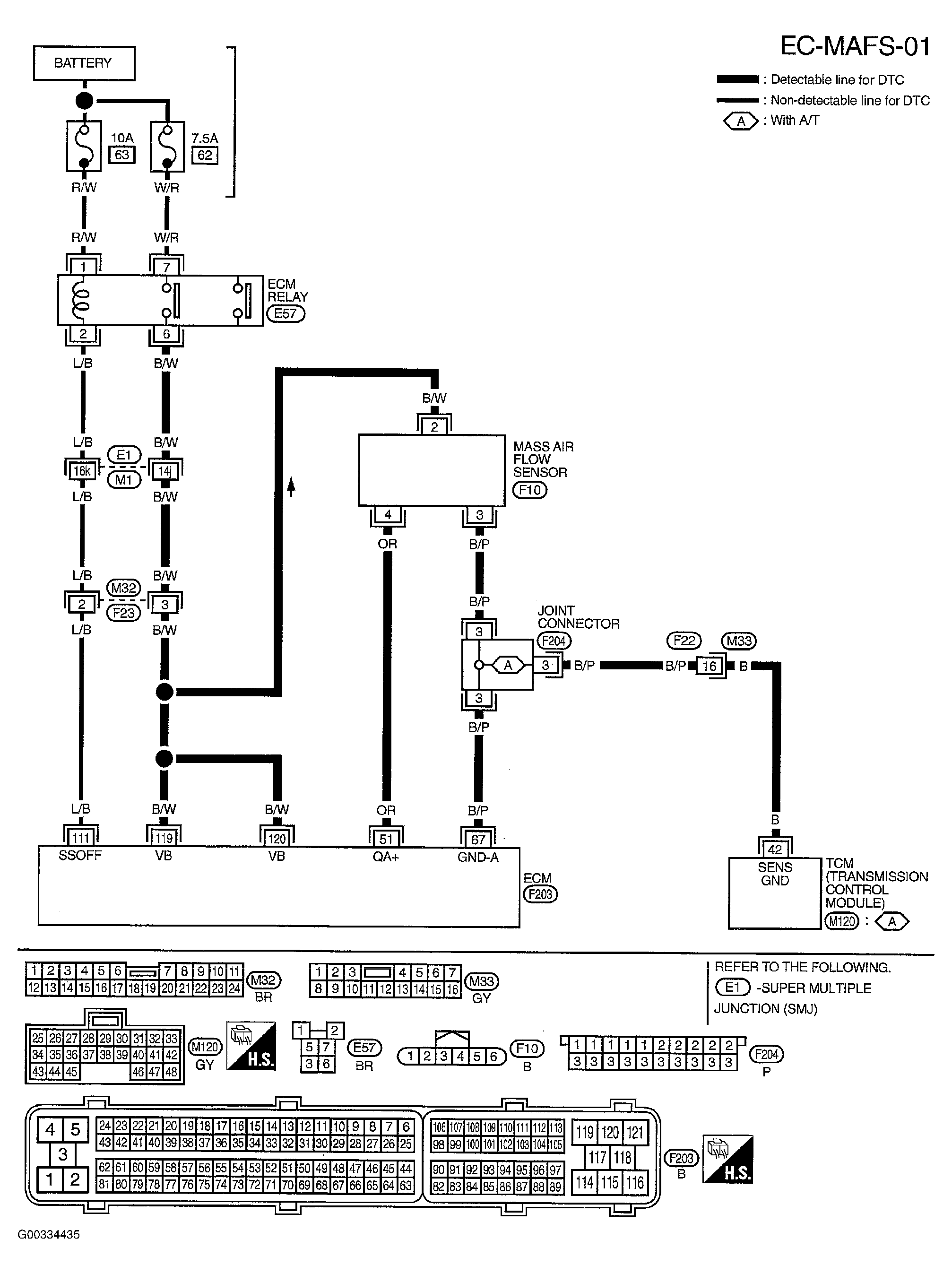

Fig 1: Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
