Diagnostic Procedure
- CHECK ECT SENSOR POWER SUPPLY CIRCUIT
- Turn ignition switch "OFF".

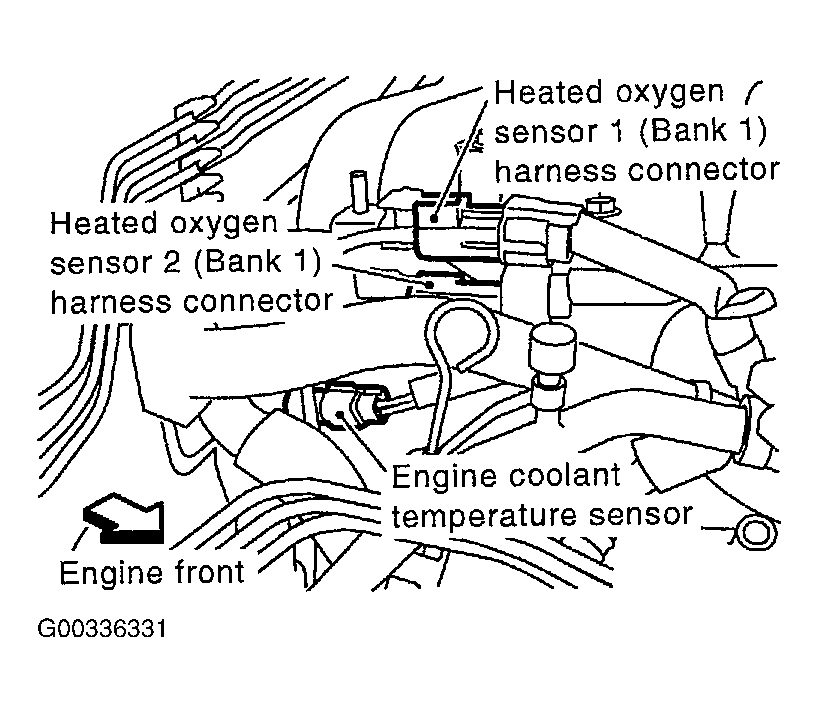

- Disconnect engine coolant temperature (ECT) sensor connector.
- Turn ignition switch "ON".

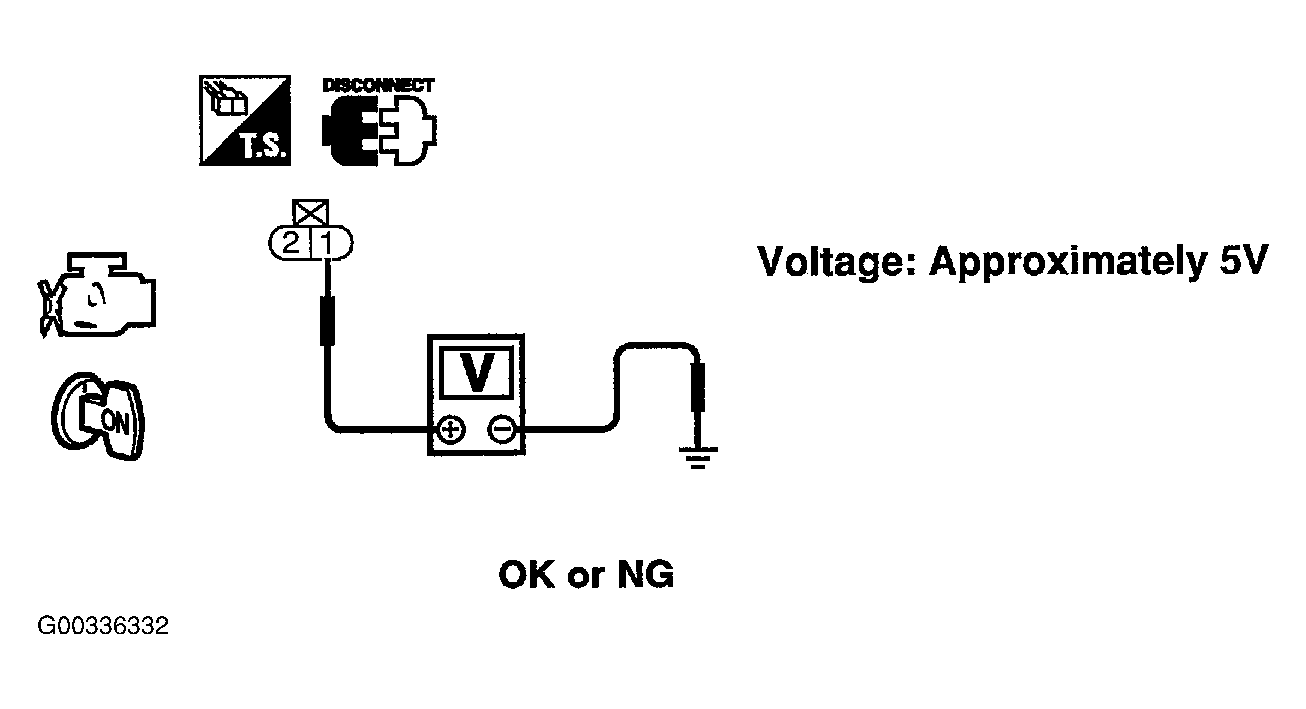

- Check voltage between ECT sensor connector terminal 1 and ground with CONSULT-II or tester.
Courtesy of NISSAN MOTOR CO., U.S.A.
Voltage: Approximately 5V
OK or NG
- OK GO TO 3 .
- NG GO TO 2.
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors F112, F28
- Harness for open or short between ECM and engine coolant temperature sensor
- Repair harness or connectors.
- CHECK ECT SENSOR GROUND CIRCUIT FOR OPEN AND CIRCUIT
- Turn ignition switch "OFF".
- Disconnect ECM harness connector.
- Check harness continuity between ECT sensor terminal 2 and ECM terminal 67.
Refer to WIRING DIAGRAM .
Continuity should exist.
- Also check harness for short to power.
OK or NG
- OK GO TO 5 .
- NG GO TO 4.
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors F112, F28
- Joint connector F204
- Harness for open between ECM and engine coolant temperature sensor
- Harness for open between TCM and engine coolant temperature sensor
- Repair open circuit or short to power in harness or connectors.
- CHECK ENGINE COOLANT TEMPERATURE SENSOR

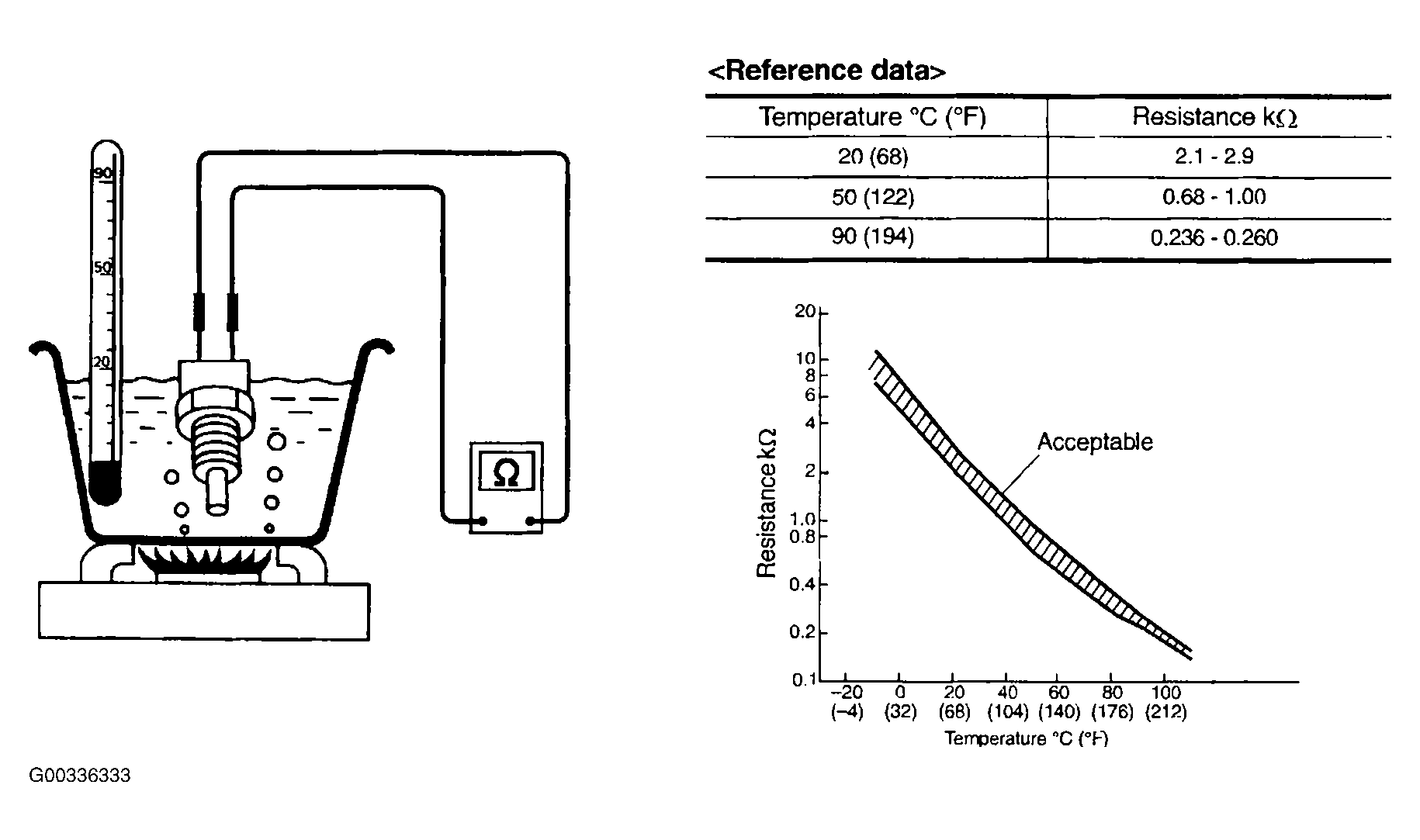

Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.
Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK GO TO 6.
- NG Replace engine coolant temperature sensor.
- CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT " .
- INSPECTION END
