NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

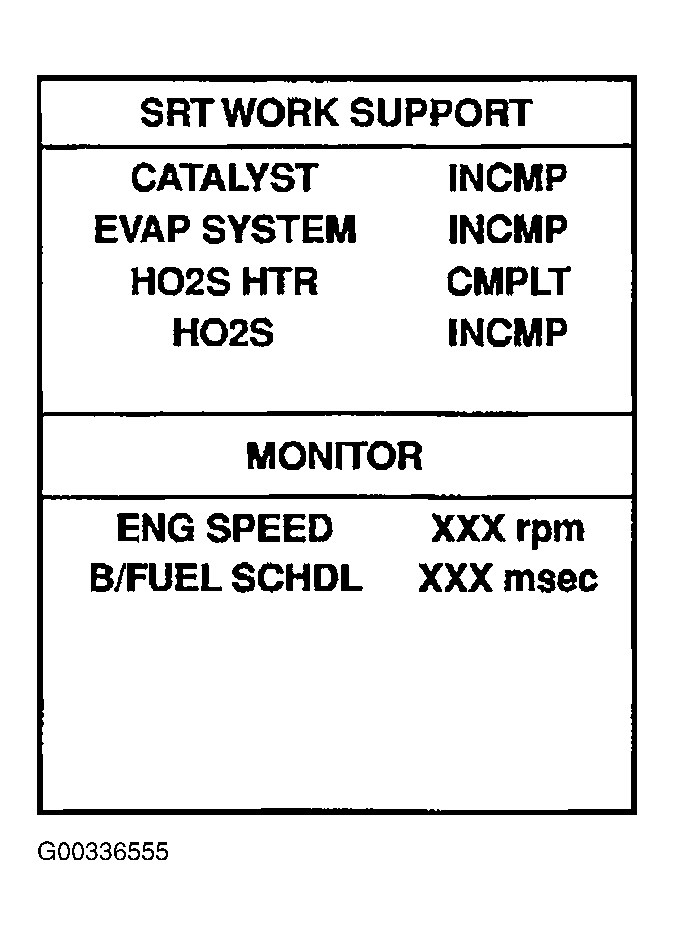

Fig 1: CONSULT-II Function Display SRT Work Support (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

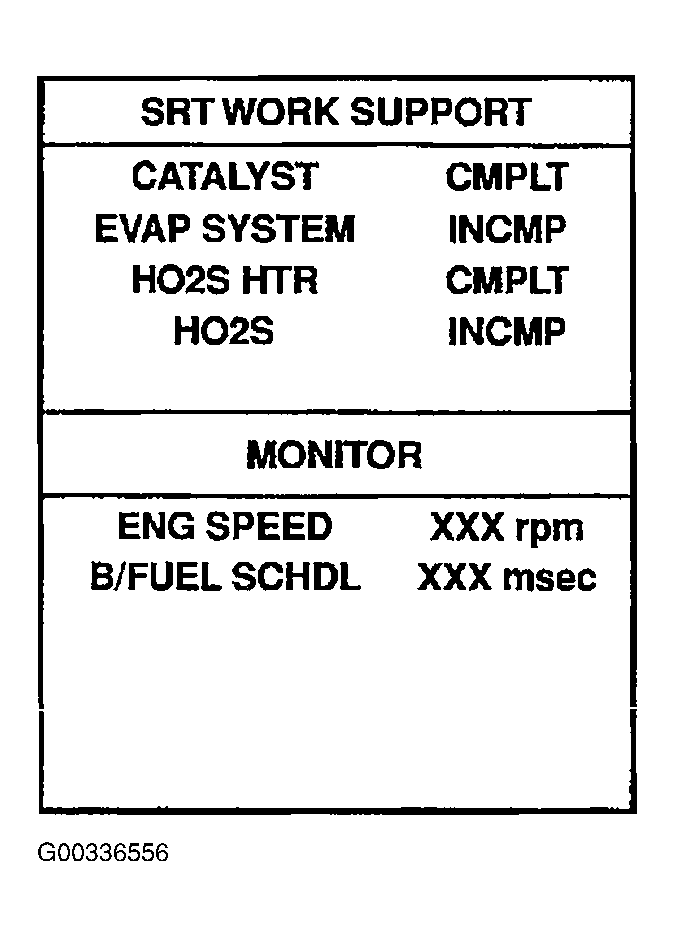

Fig 2: CONSULT-II Function Display SRT Work Support (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

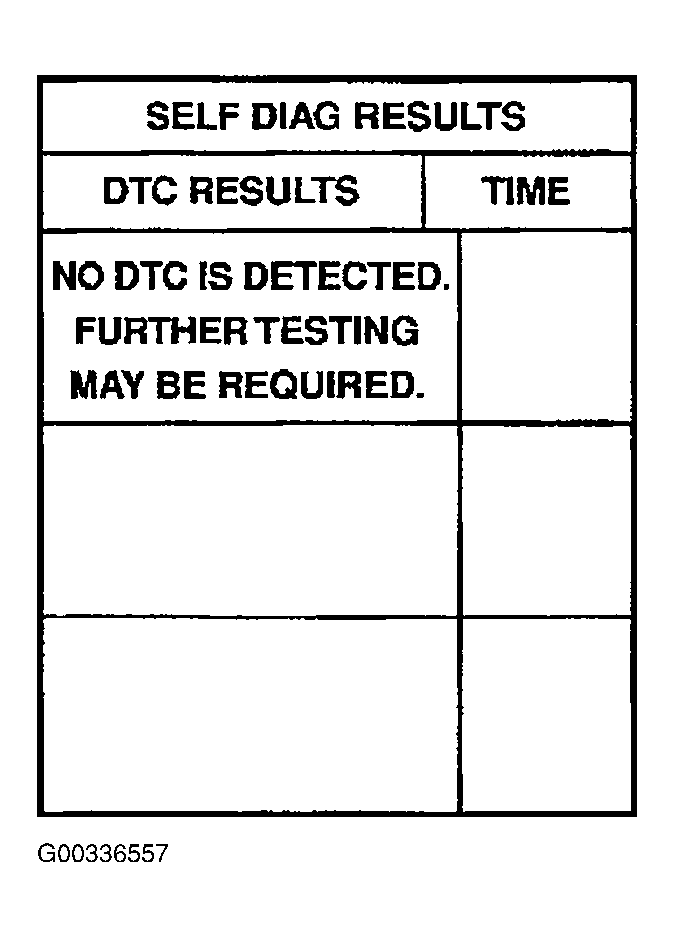

Fig 3: CONSULT-II Function Display Self Diag Results
