On Board Diagnosis Logic

The MIL will not light up for this self-diagnosis.

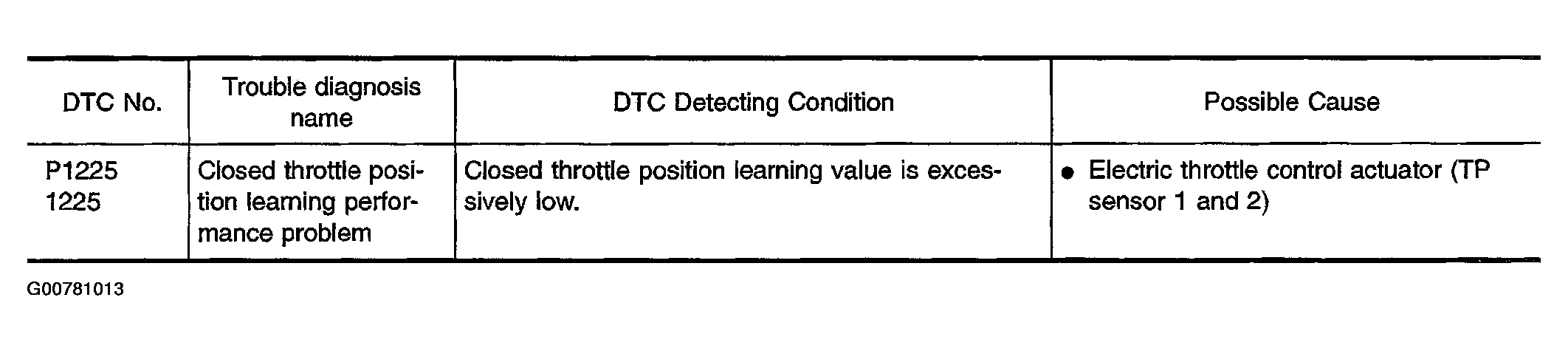

Fig 1: Trouble Diagnostic Chart
G00781013Courtesy of NISSAN MOTOR CO., U.S.A.
