Basic Inspection: Precaution:

Perform Basic Inspection without electrical or mechanical loads applied;

Headlamp switch is OFF.
Air conditioner switch is OFF.
Rear window defogger switch is OFF.
Steering wheel is in the straight-ahead position, etc.

INSPECTION START
1. Check service records for any recent repairs that may indicate a related malfunction, or a current need for scheduled maintenance.
2. Open engine hood and check the following:
  - Harness connectors for improper connections
  - Vacuum hoses for splits, kinks and improper connections
  - Wiring for improper connections, pinches and cuts
  - Air cleaner clogging
  - Hoses and ducts for leaks

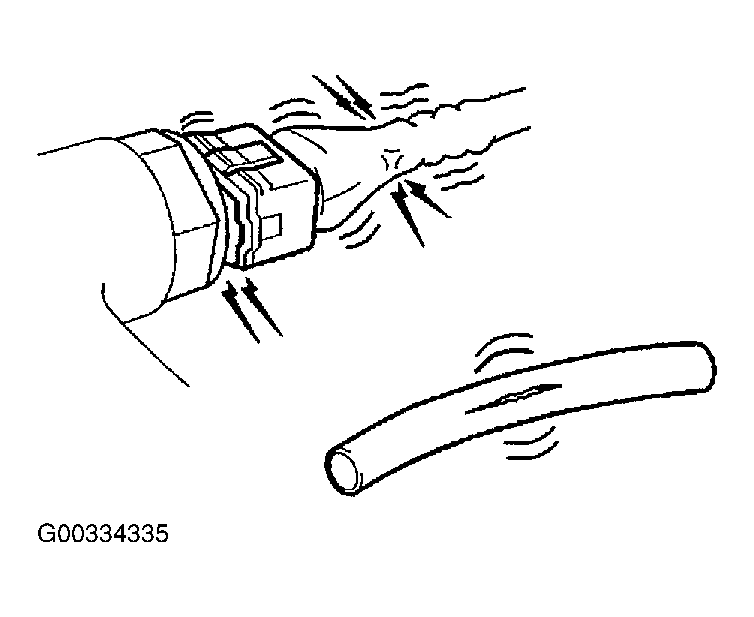

  Fig 1: Identifying Harness Connectors For Improper Connections
  Courtesy of NISSAN MOTOR CO., U.S.A.
  1. GO TO 2.
REPAIR OR REPLACE
Repair or replace components as necessary according to corresponding "Diagnostic Procedure".
1. GO TO 3.
CHECK TARGET IDLE SPEED
With CONSULT-II
1. Run engine at about 2,000 RPM for about 2 minutes under no-load.
2. Rev engine (2,000 to 3,000 RPM) two or three times under no-load, then run engine at idle speed for about 1 minute.

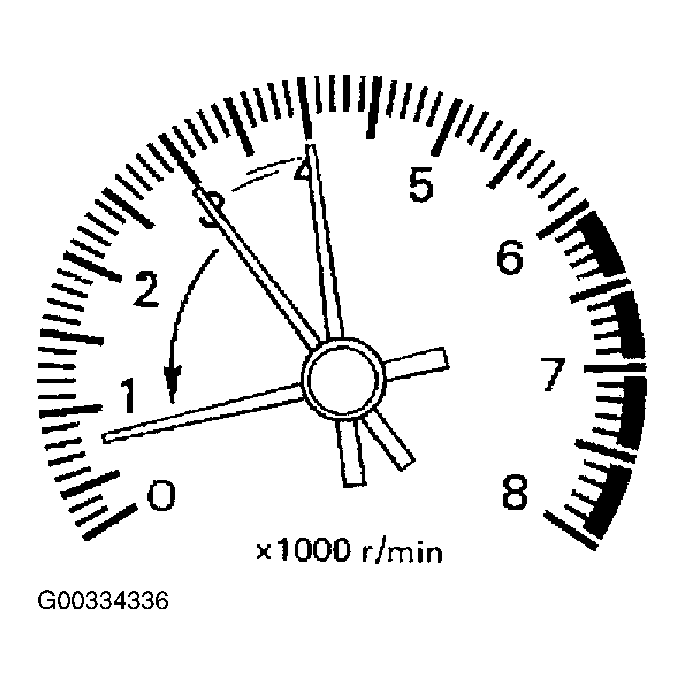

  Fig 2: Identifying RPM Meter
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Read idle speed in "DATA MONITOR" mode with CONSULT-II.
  MT: 750+/-50 RPM

  AT: 750+/-50 RPM (in P or N position)

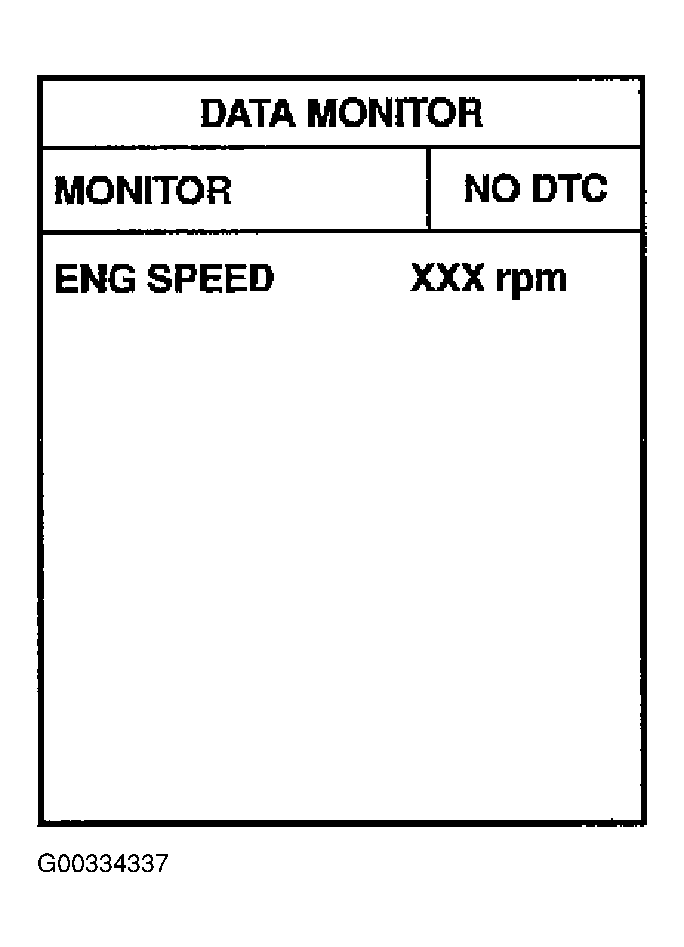

  Fig 3: Data Monitor Display
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II
1. Run engine at about 2,000 RPM for about 2 minutes under no-load.
2. Rev engine (2,000 to 3,000 RPM) two or three times under no-load, then run engine at idle speed for about 1 minute.
3. Check idle speed.
  MT: 750+/-50 RPM

  AT: 750+/-50 RPM (in P or N position)
OK or NG
1. OK GO TO 10 .
2. NG GO TO 4.
PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING " .
  1. GO TO 5.
PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Perform "THROTTLE VALVE CLOSED POSITION LEARNING " .
1. GO TO 6.
PERFORM IDLE AIR VOLUME LEARNING
Refer to "IDLE AIR VOLUME LEARNING " .

Is Idle Air Volume Learning carried out successfully?

Yes or No
1. Yes GO TO 7.
2. No
  1. Follow the instruction of Idle Air Volume Learning.
  2. GO TO 4 .
CHECK TARGET IDLE SPEED AGAIN
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Read idle speed in "DATA MONITOR" mode with CONSULT-II.
  MT: 750+/-50 RPM

  AT: 750+/-50 RPM (in P or N position)
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.
  MT: 750+/-50 RPM

  AT: 750+/-50 RPM (in P or N position)
OK or NG
1. OK GO TO 10 .
2. NG GO TO 8.
DETECT MALFUNCTIONING PART
Check the following.
- Check camshaft position sensor (PHASE) and circuit. Refer to DTC P0340, P0345 CMP SENSOR (PHASE) .
- Check crankshaft position sensor (POS) and circuit. Refer to DTC P0335 CKP SENSOR (POS) .
OK or NG
1. OK GO TO 9.
2. NG
  1. Repair or replace.
  2. GO TO 4 .
CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is the rarely the case.)
2. Perform initialization of NVIS (NATS) system and registration of NVIS (NATS) ignition key IDs. Refer to "NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM - NATS) " .
  1. GO TO 4 .
CHECK IGNITION TIMING
1. Run engine at idle.
2. Check ignition timing with a timing light.

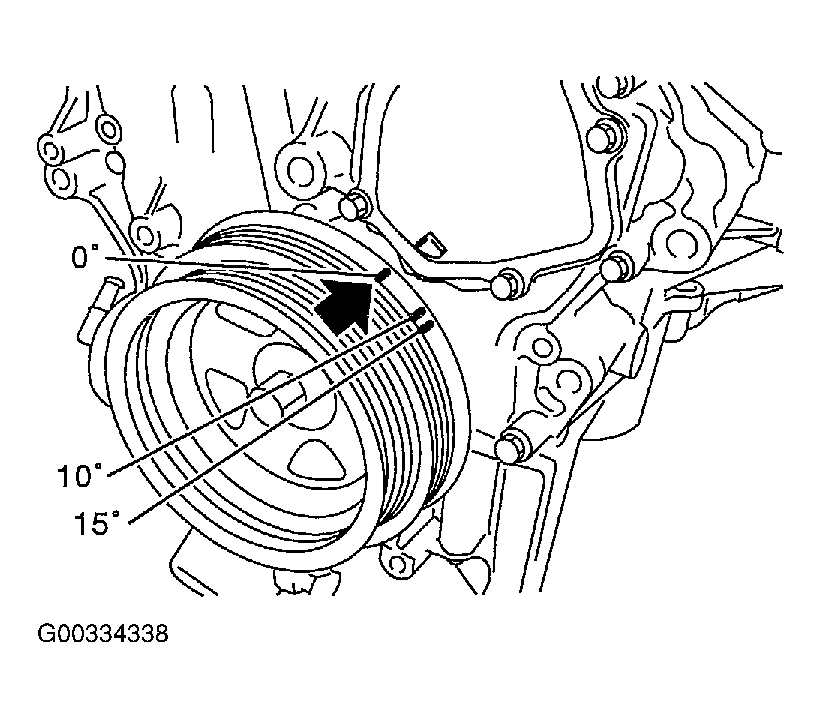

  Fig 4: Identifying Ignition Timing Mark (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  MT: 15°+/-5° BTDC

  AT: 15°+/-5° BTDC(in P or N position)
OK or NG
1. OK INSPECTION END
2. NG GO TO 11.
PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING " .
  1. GO TO 12.
PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Perform "THROTTLE VALVE CLOSED POSITION LEARNING " .
1. GO TO 13.
PERFORM IDLE AIR VOLUME LEARNING
Refer to "IDLE AIR VOLUME LEARNING " .

Is Idle Air Volume Learning carried out successfully?

Yes or No
1. Yes GO TO 14.
2. No
  1. Follow the instruction of Idle Air Volume Learning.
  2. GO TO 4 .
CHECK TARGET IDLE SPEED AGAIN
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Read idle speed in "DATA MONITOR" mode with CONSULT-II.
  MT: 750+/-50 RPM

  AT: 750+/-50 RPM (in P or N position)
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.
  MT: 750+/-50 RPM

  AT: 750+/-50 RPM (in P or N position)
OK or NG
1. OK GO TO 15.
2. NG GO TO 17 .
CHECK IGNITION TIMING AGAIN
1. Run engine at idle.
2. Check ignition timing with a timing light.

  Fig 5: Identifying Ignition Timing Mark (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  MT: 15°+/-5° BTDC

  AT: 15°+/-5° BTDC(in P or N position)
OK or NG
1. OK INSPECTION END
2. NG GO TO 16.
CHECK TIMING CHAIN INSTALLATION
Check timing chain installation. Refer to "TIMING CHAIN ".

OK or NG
1. OK GO TO 17.
2. NG
  1. Repair the timing chain installation.
  2. GO TO 4 .
DETECT MALFUNCTIONING PART
Check the following.
- Check camshaft position sensor (PHASE) and circuit. Refer to DTC P0340, P0345 CMP SENSOR (PHASE) .
- Check crankshaft position sensor (POS) and circuit. Refer to DTC P0335 CKP SENSOR (POS) .
OK or NG
1. OK GO TO 18.
2. NG
  1. Repair or replace.
  2. GO TO 4 .
CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is a rare case.)
2. Perform initialization of NVIS (NATS) system and registration of NVIS (NATS) ignition key IDs. Refer to "NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM - NATS) " .
  1. GO TO 4 .
