Diagnostic Procedure
- CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
- Turn ignition switch "OFF".

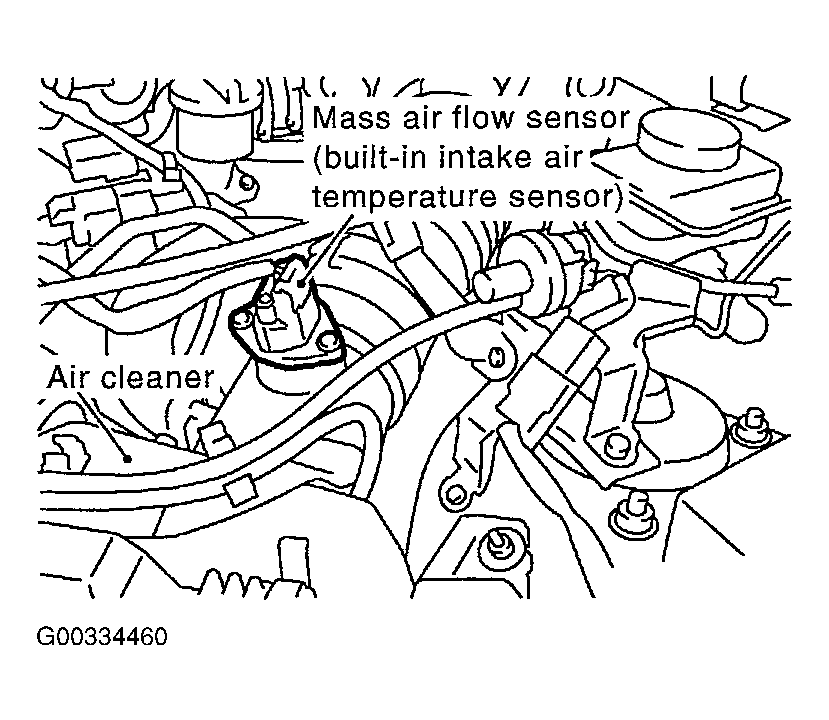

- Disconnect mass air flow sensor (built-in intake air temperature sensor) harness connector.
- Turn ignition switch "ON".

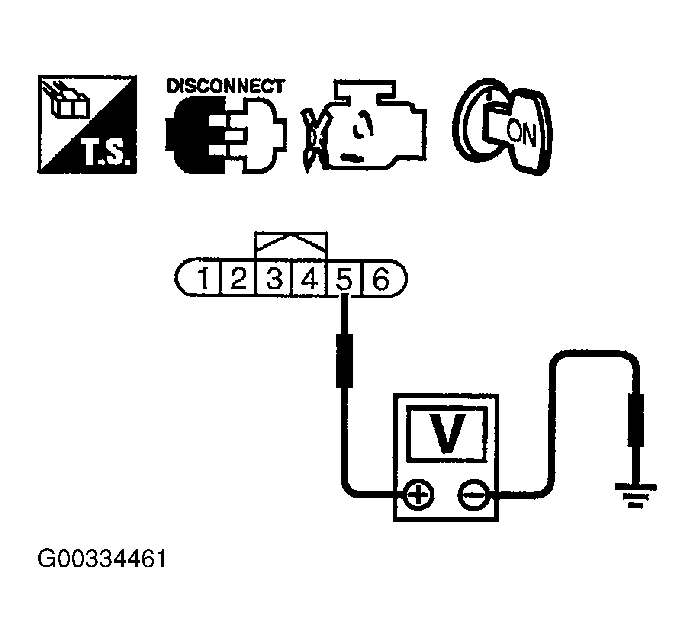

- Check voltage between terminal 5 and ground.
Voltage: Approximately 5V
OK or NG
- OK GO TO 2.
- NG Repair harness or connectors.
- CHECK INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
- Turn ignition switch "OFF".
- Disconnect ECM harness connector.
- Disconnect TCM harness connector.
- Check harness continuity between MAF sensor terminal 6 and ECM terminal 67, TCM terminal 42.
Refer to WIRING DIAGRAM .
Continuity should exist.
- Also check harness for short to ground and short to power.
OK or NG
- OK GO TO 4 .
- NG GO TO 3.
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors F22, M33
- Joint connector
- Harness for open or short between mass air flow sensor and ECM
- Harness for open or short between mass air flow sensor and TCM
- Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK INTAKE AIR TEMPERATURE SENSOR
Refer to "COMPONENT INSPECTION ".
OK or NG
- OK GO TO 5.
- NG Replace mass air flow sensor (with intake air temperature sensor).
- CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT " .
- INSPECTION END
