With CONSULT-II

  1. Turn ignition switch "ON".
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for 1 second.
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE  " .

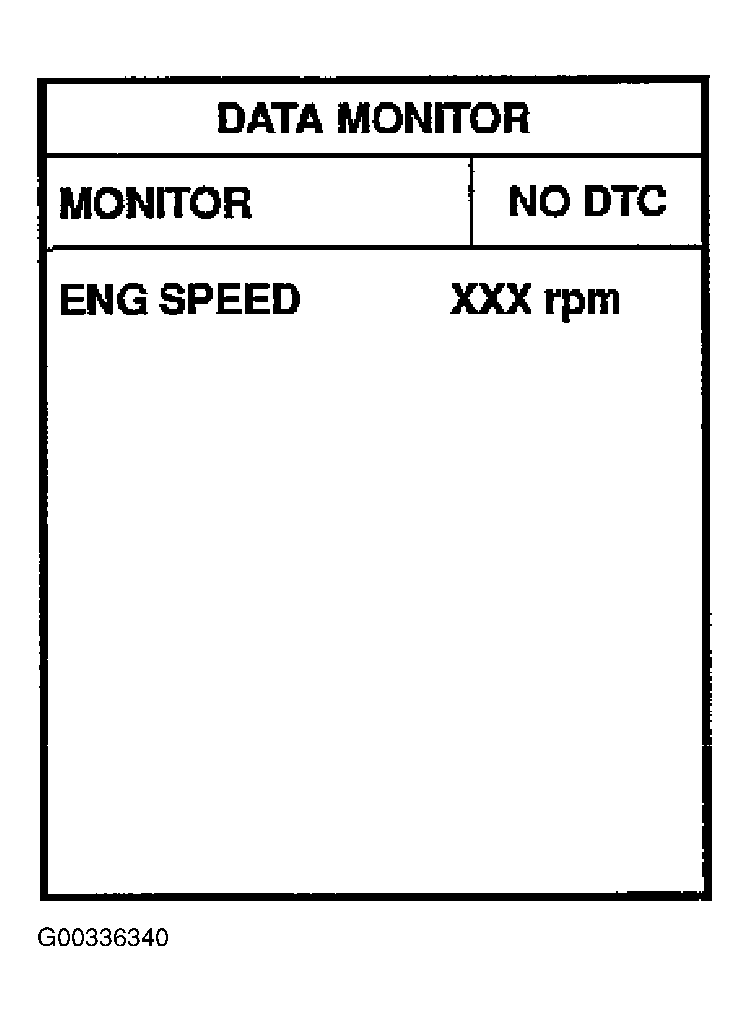

    Fig 1: Display CONSULT II (Data Monitor)
    G00336340Courtesy of NISSAN MOTOR CO., U.S.A.
