DTC P0122, P0123: TP Sensor: Wiring Diagram

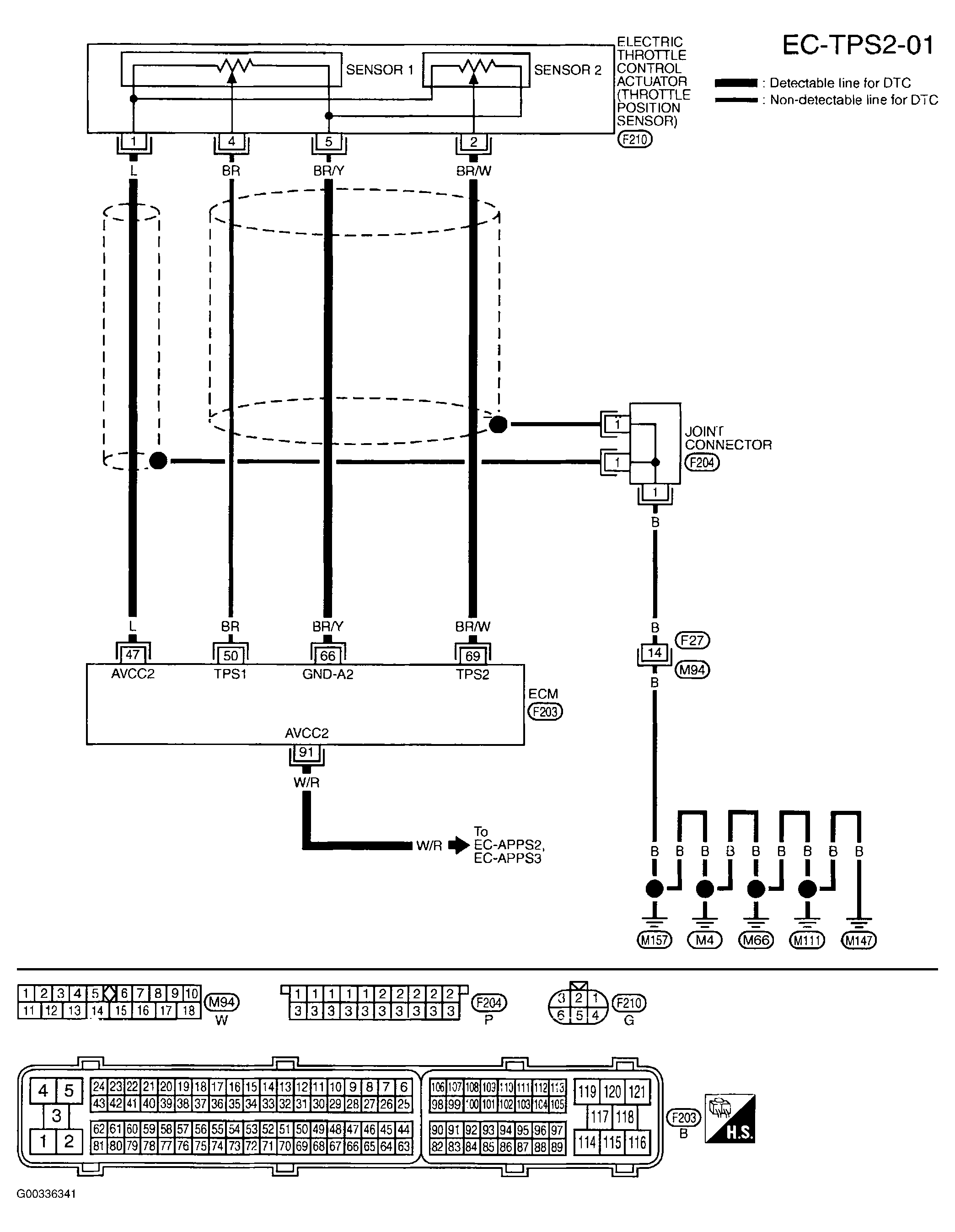

Fig 1: Wiring Diagram - Throttle Position Sensor 2
Courtesy of NISSAN MOTOR CO., U.S.A.
