CONSULT-II Reference Value in Data Monitor Mode: Notes

Specification data are reference values.

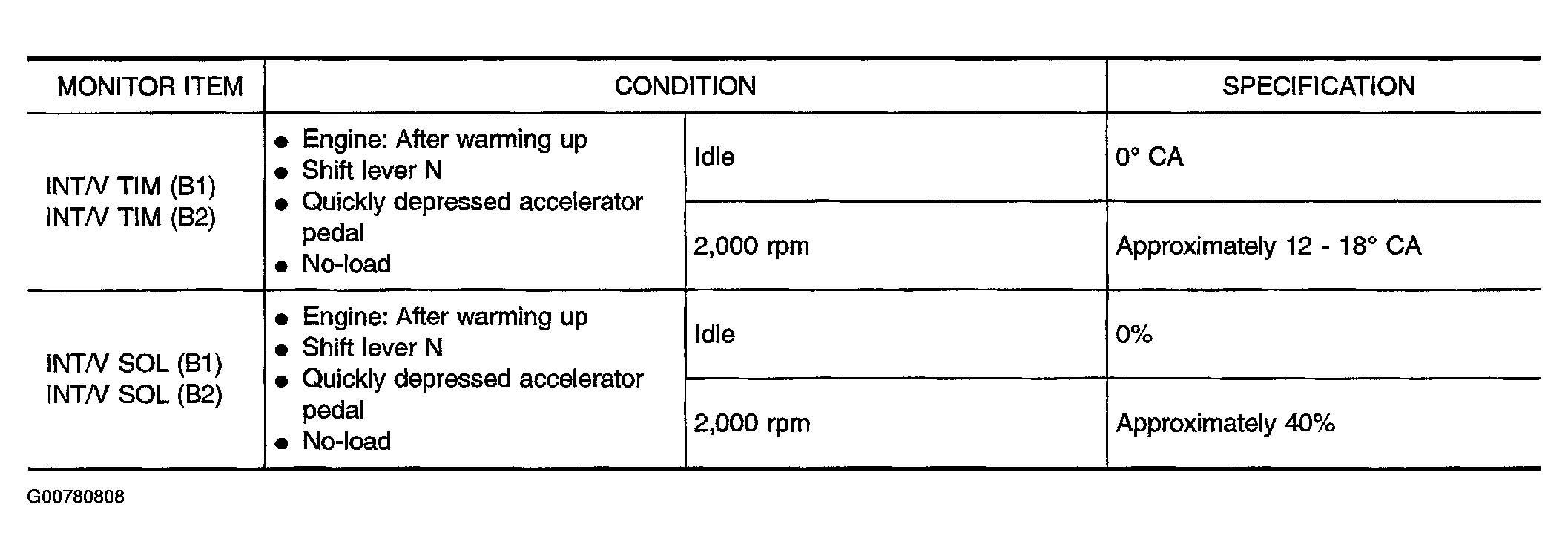

Fig 1: Data Monitor Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

On Board Diagnosis Logic

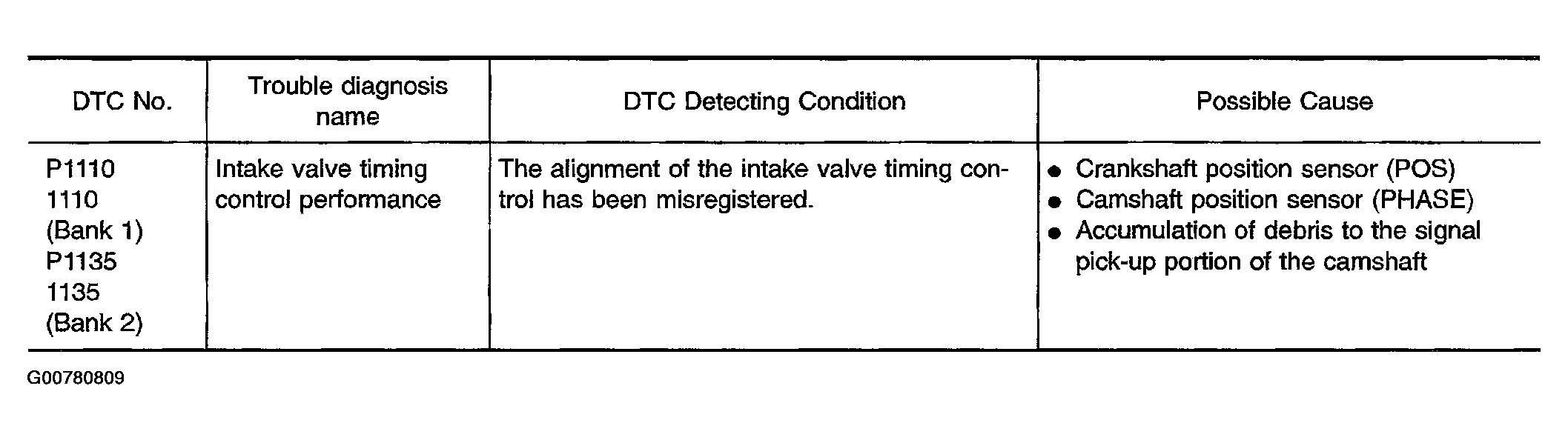

Fig 2: Diagnostic Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
