DTC P1110, P1135: IVT Control: Description

SYSTEM DESCRIPTION

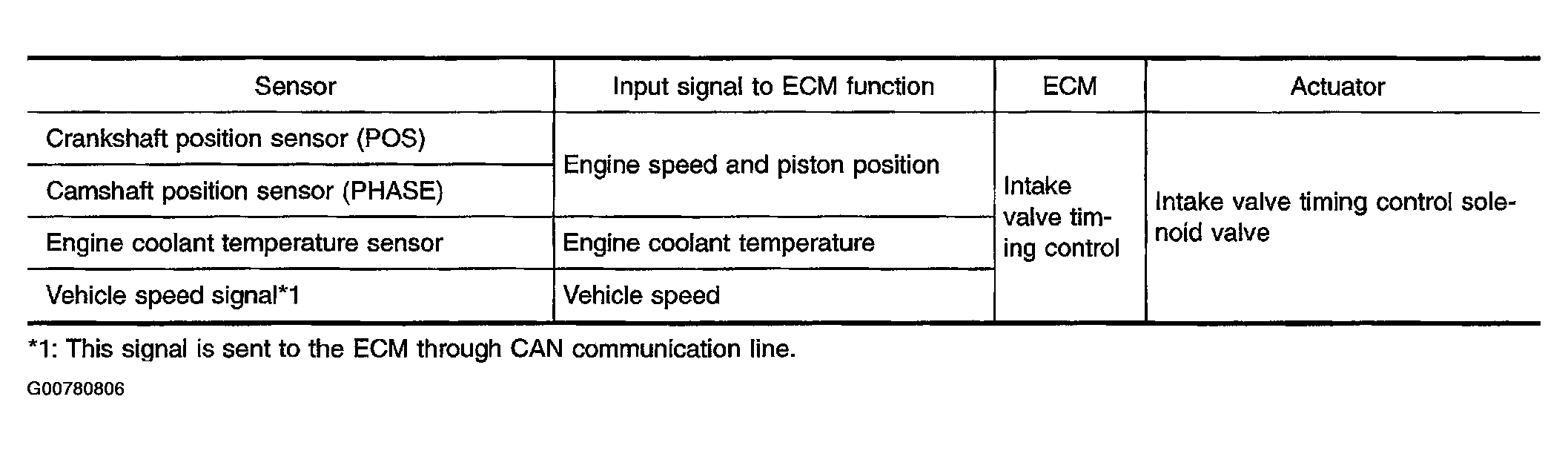

Fig 1: System Description Table

Courtesy of NISSAN MOTOR CO., U.S.A.

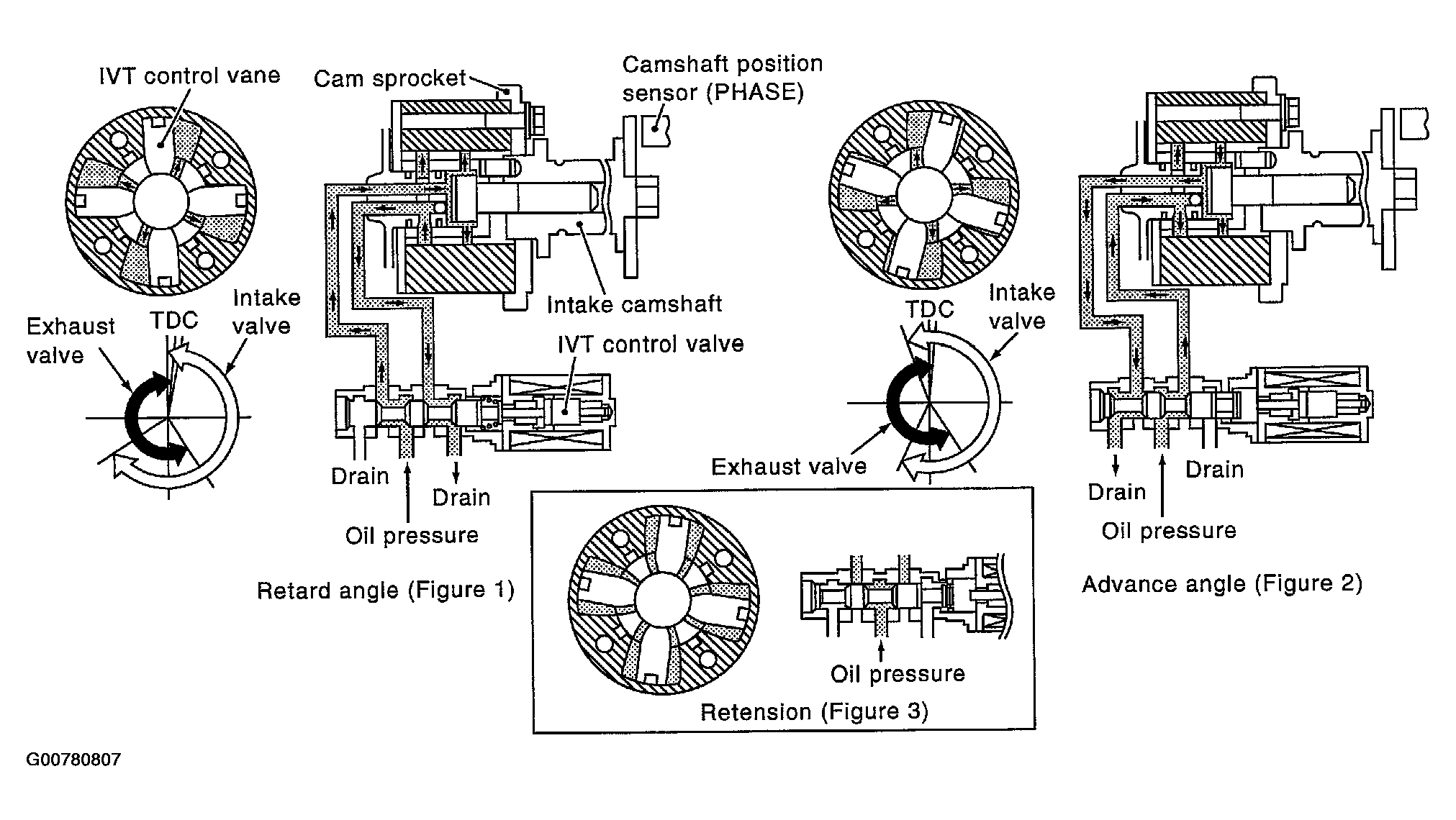

Fig 2: Identifying IVT Control Vane Retard Angle And Advance Angle

Courtesy of NISSAN MOTOR CO., U.S.A.

This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake valve.

The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant temperature. Then, the ECM sends ON/OFF pulse duty signals to the camshaft timing control valve depending on driving status. This makes it possible to control the shut/open timing of the intake valve to increase engine torque in low/mid speed range and output in high-speed range.
