Diagnostic Procedure

  1. RETIGHTEN GROUND SCREWS
    1. Turn ignition switch "OFF".
    2. Loosen and retighten engine ground screws.

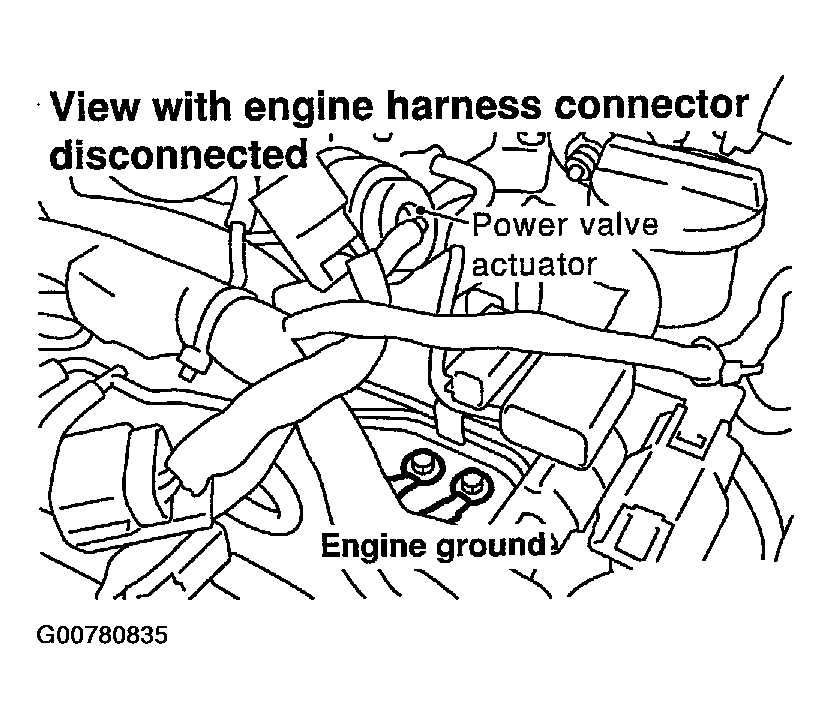

      Fig 1: Identifying Power Value Actuator And Engine Ground Screws
      G00780835Courtesy of NISSAN MOTOR CO., U.S.A.
    1. GO TO 2.
  2. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I

    Check voltage between ECM terminal 3 and ground under the following conditions with CONSULT-II or tester.

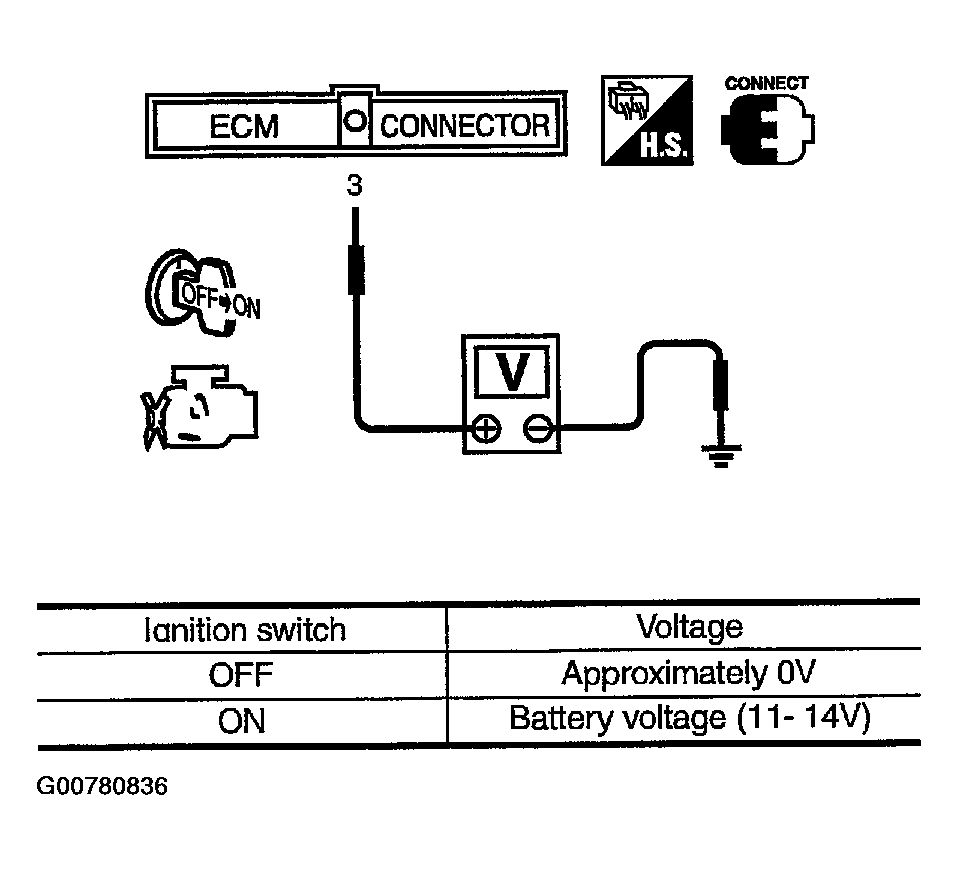

    Fig 2: Checking Voltage Between ECM Terminal 3 And Ground
    G00780836Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  11 .
    2. NG: GO TO 3.
  3. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT
    1. Turn ignition switch "OFF".
    2. Disconnect throttle control motor relay.

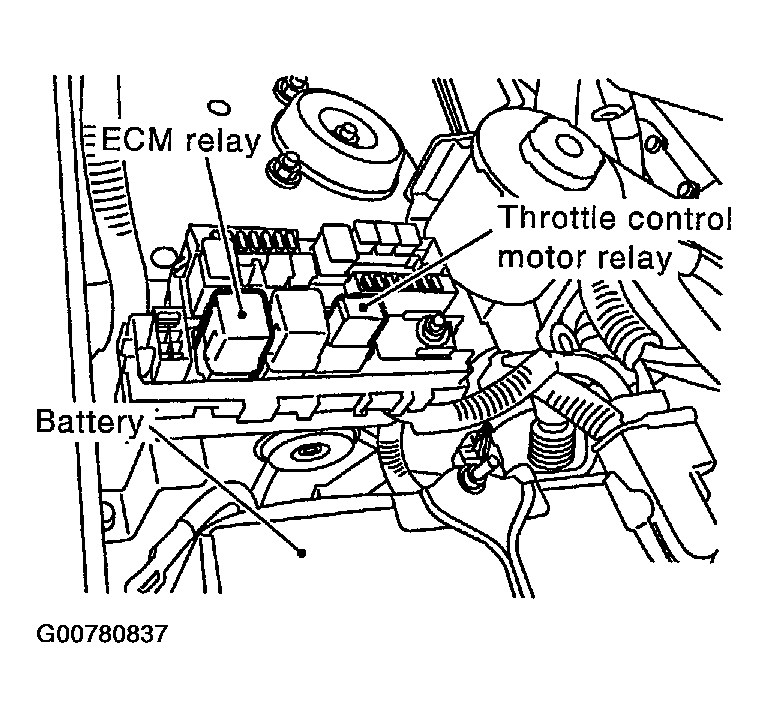

      Fig 3: Identifying Throttle Control Motor Relay Power Supply Circuit
      G00780837Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between throttle control motor relay terminals 1, 3 and ground with CONSULT-II or tester.

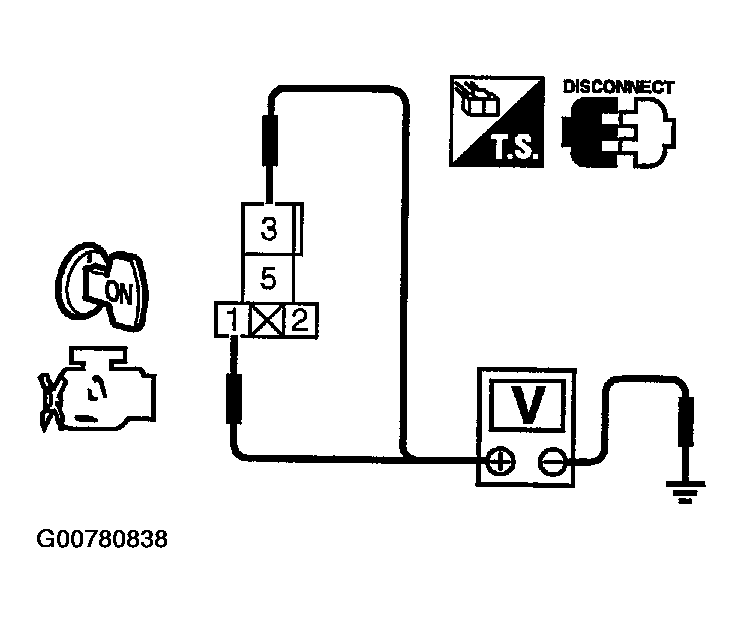

      Fig 4: Checking Voltage Between Throttle Control Motor Relay Terminals 1, 3 And Ground
      G00780838Courtesy of NISSAN MOTOR CO., U.S.A.

      Voltage: Battery voltage

    OK or NG

    1. OK: GO TO  5 .
    2. NG: GO TO 4.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • 15A fuse
    • Harness for open and short between throttle control motor relay and battery
    1. Repair open circuit or short to ground or short to power in harness or connectors.
  5. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 3 and throttle control motor relay terminal 5.

      Refer to WIRING DIAGRAM  .

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  7 .
    2. NG: GO TO 6.
  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connector E1, M11
    • Harness connector M33, F22
    • Harness for open and short between throttle control motor relay and ECM
    1. Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK THROTTLE CONTROL MOTOR RELAY OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between ECM terminal 104 and throttle control motor relay terminal 2.

      Refer to WIRING DIAGRAM  .

      Continuity should exist.

    2. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  9 .
    2. NG: GO TO 8.
  8. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connector E1, M1
    • Harness connectors M33, F22
    • Harness for open and short between throttle control motor relay and ECM
    1. Repair open circuit or short to ground or short to power in harness or connectors.
  9. CHECK THROTTLE CONTROL MOTOR RELAY

    Refer to "COMPONENT INSPECTION  " .

    OK or NG

    1. OK: GO TO 10.
    2. NG: Replace throttle control motor relay.
  10. CHECK INTERMITTENT INCIDENT

    Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT  " .

    1. INSPECTION END
  11. CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
    1. Turn ignition switch "OFF".
    2. Disconnect electric throttle control actuator harness connector.

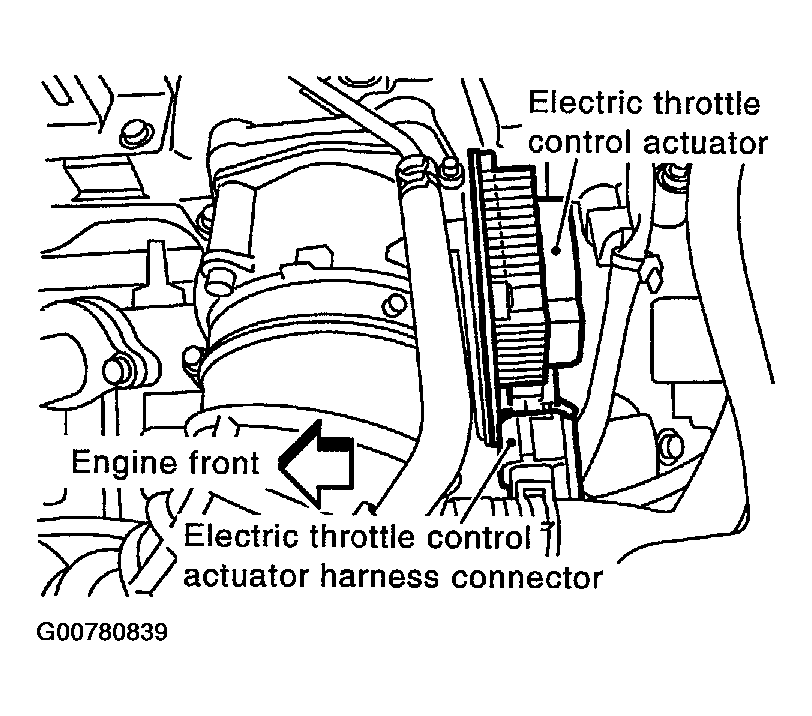

      Fig 5: Disconnecting Electric Throttle Control Actuator Harness Connector
      G00780839Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Disconnect ECM harness connector.
    4. Check harness continuity between the following terminals.

      Refer to WIRING DIAGRAM  .

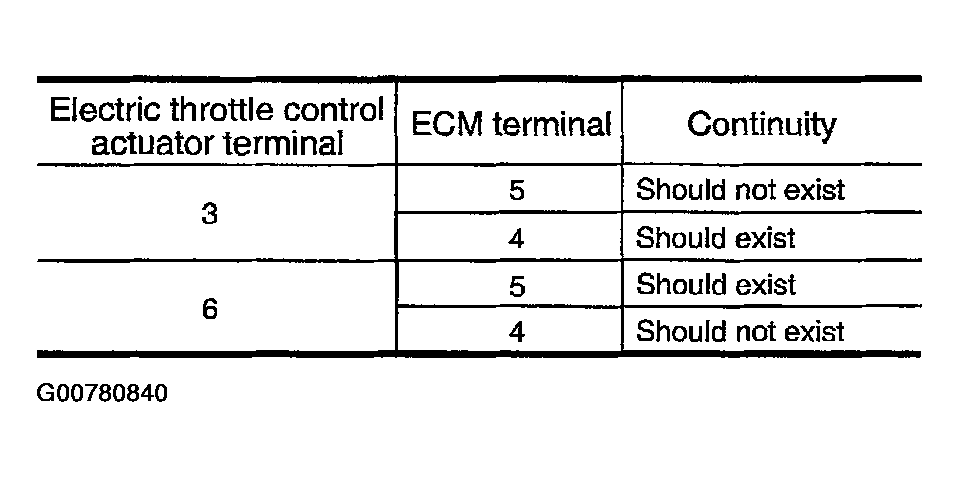

      Fig 6: Terminals Harness Continuity Table
      G00780840Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO 12.
    2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
  12. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
    1. Remove the intake air duct.
    2. Check if foreign matter is caught between the throttle valve and the housing.

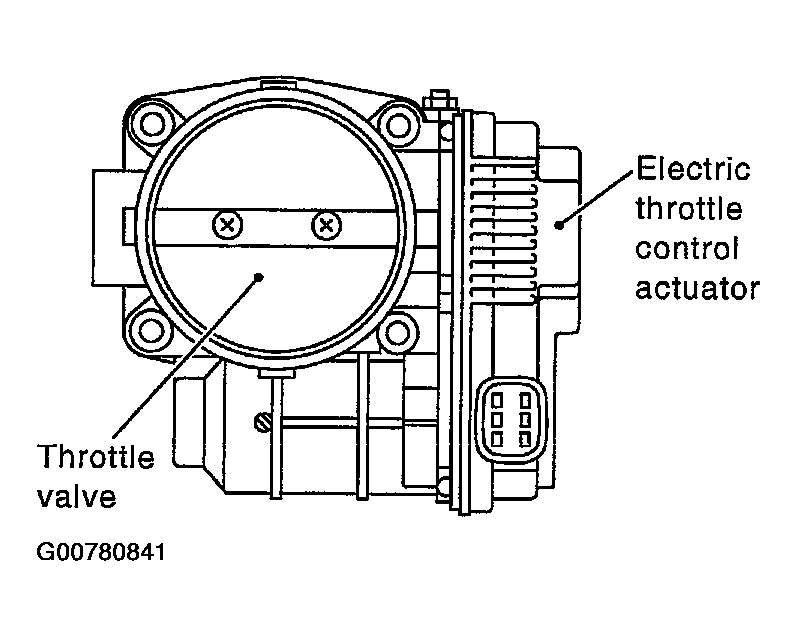

      Fig 7: Identifying Electric Throttle Control Actuator
      G00780841Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 13.
    2. NG: Remove the foreign matter and clean the electric throttle control actuator inside.
  13. CHECK THROTTLE CONTROL MOTOR

    Refer to "COMPONENT INSPECTION  " .

    OK or NG

    1. OK: GO TO 14.
    2. NG: GO TO  15 .
  14. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT  " .

    OK or NG

    1. OK: GO TO  15 .
    2. NG: Repair or replace harness or connectors.
  15. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
    1. Replace the electric throttle control actuator.
    2. Perform "THROTTLE VALVE CLOSED POSITION LEARNING  " .
    3. Perform "IDLE AIR VOLUME LEARNING  " .
    1. INSPECTION END
