Throttle Control Motor

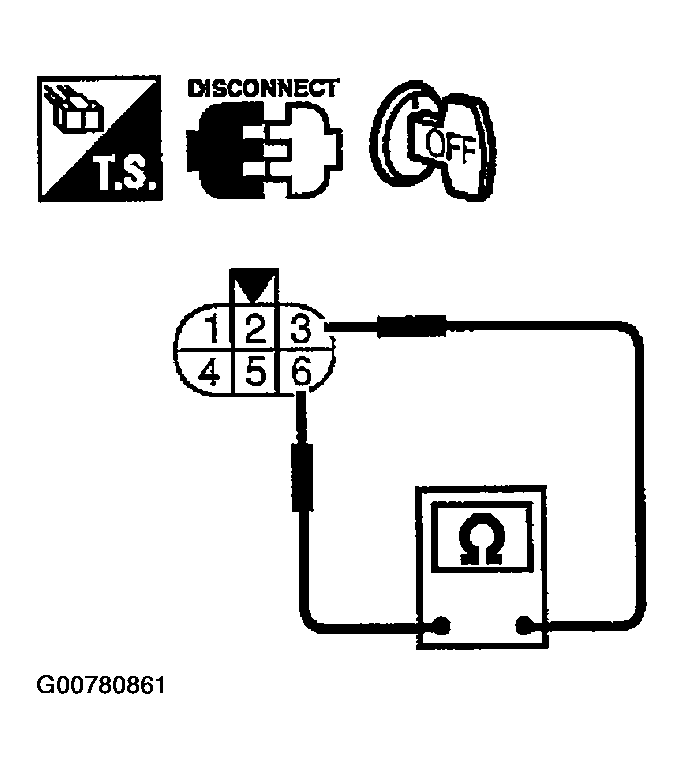

- Disconnect electric throttle control actuator harness connector.
- Check resistance between terminals 3 and 6.
Resistance: Approximately 1 - 15ohm [at 25°C (77°F)]
- If NG, replace electric throttle control actuator and GO TO next step.
- Perform "THROTTLE VALVE CLOSED POSITION LEARNING " .
- Perform "IDLE AIR VOLUME LEARNING " .
