With CONSULT-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Turn ignition switch OFF, wait at least 10 seconds.
  4. Turn ignition switch ON.
  5. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE  " .

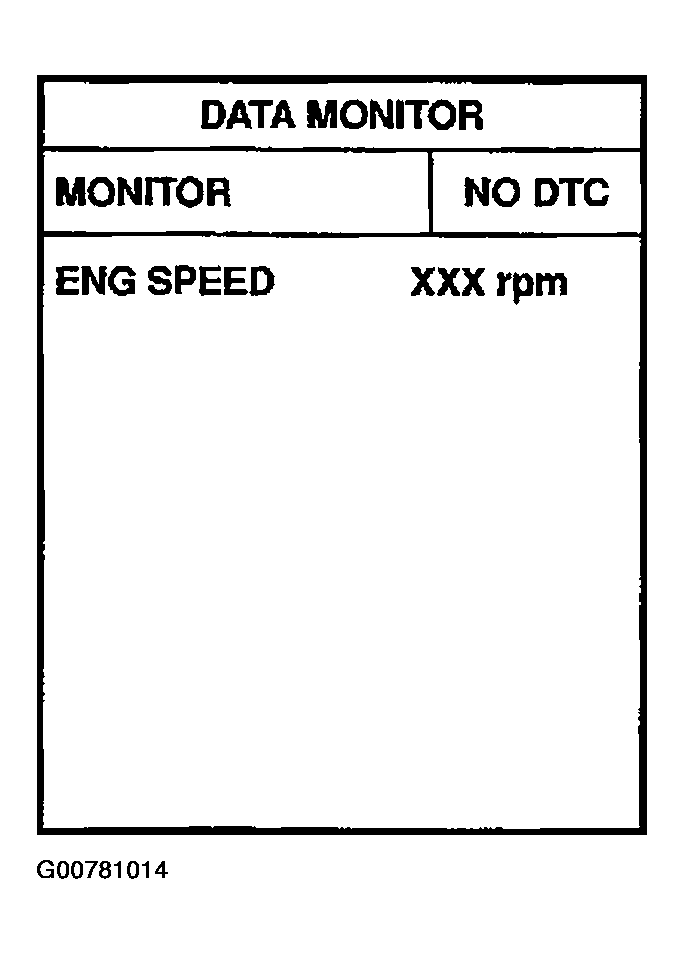

    Fig 1: Display CONSULT-II (DATA MONITOR)
    G00781014Courtesy of NISSAN MOTOR CO., U.S.A.
