Testing Condition:

Before performing the following procedure, confirm that battery voltage is more than 8V at idle.

With CONSULT-II

1. Turn ignition switch ON.
2. Select "DATA MONITOR" mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE  " .

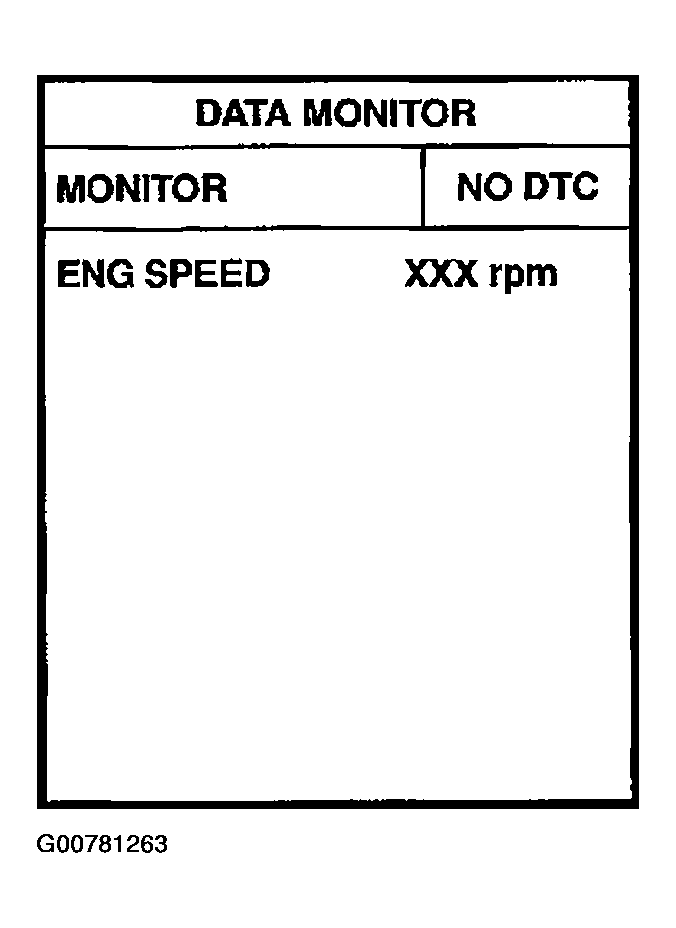

   Fig 1: CONSULT II Display

   Courtesy of NISSAN MOTOR CO., U.S.A.
