ECM Terminals and Reference Value

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

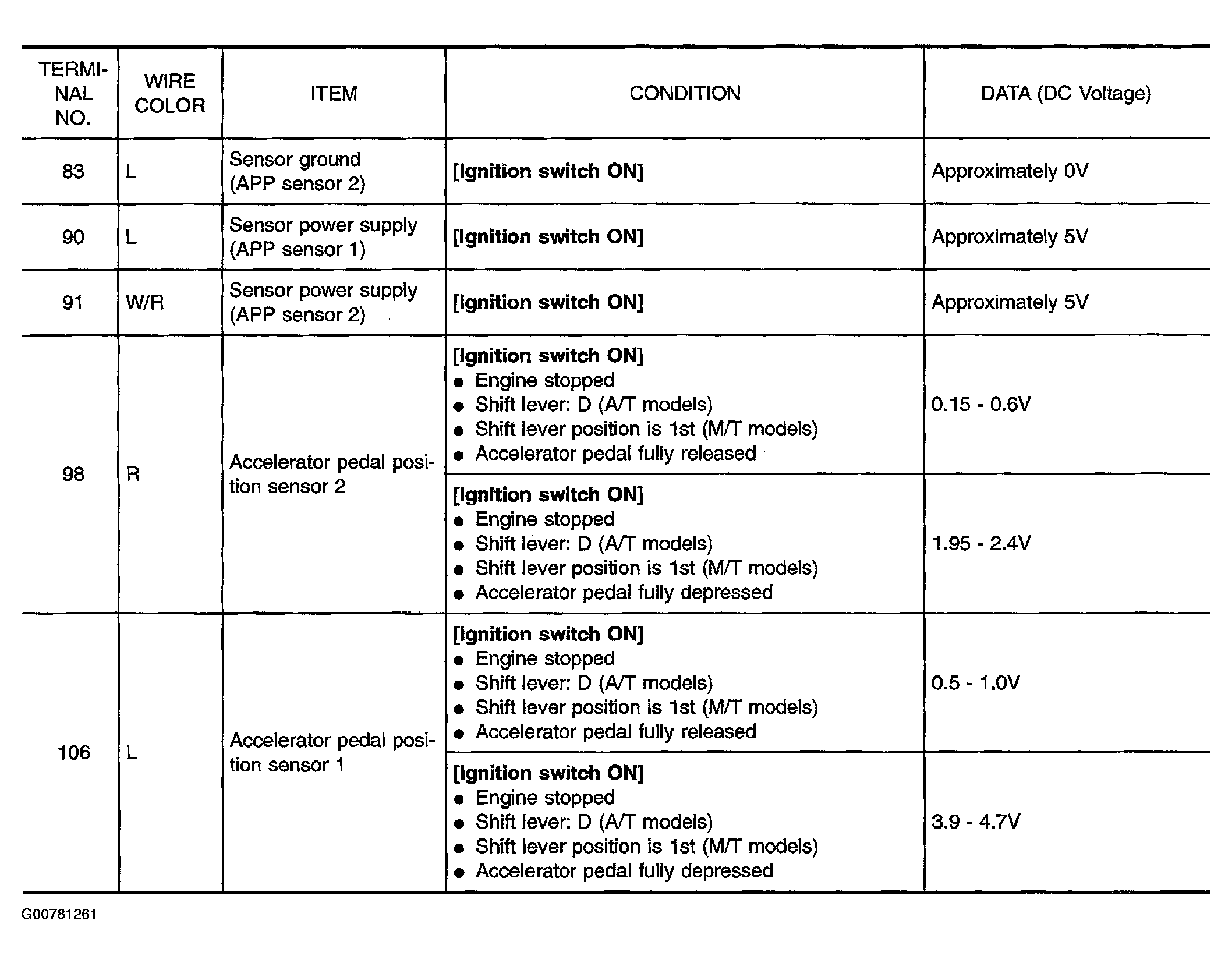

Fig 1: ECM Terminals And Reference Value Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

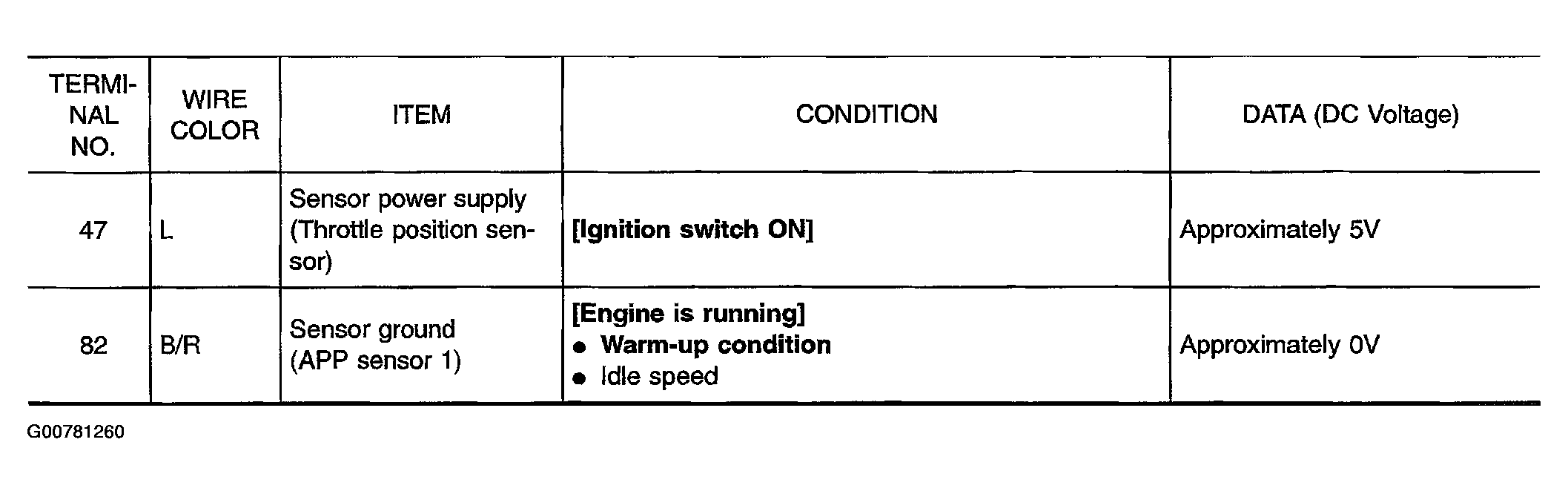

Fig 2: ECM Terminals And Reference Value Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
