Ignition Signal: Wiring Diagram

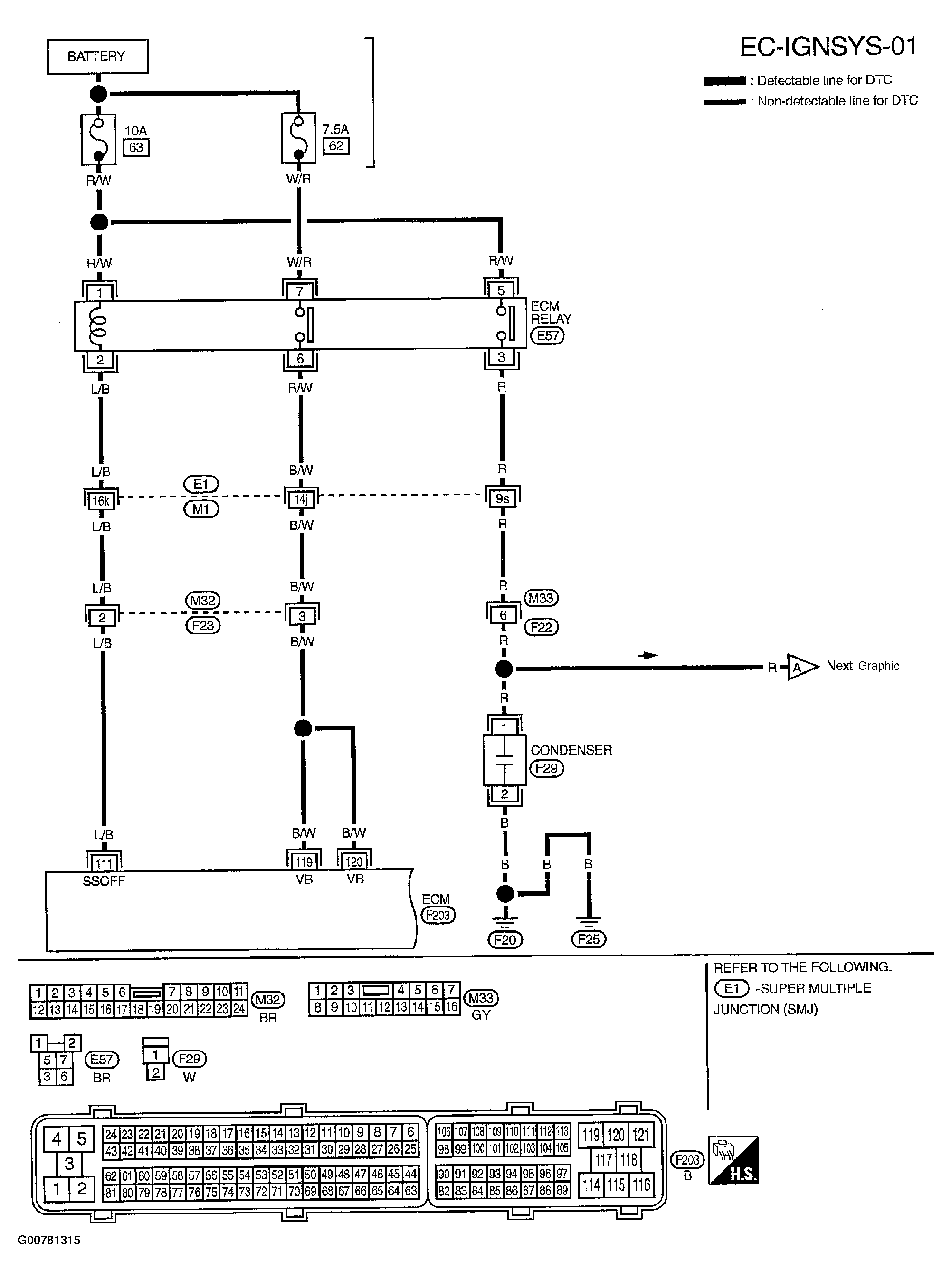

Fig 1: Wiring Diagram - Ignition Signal (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

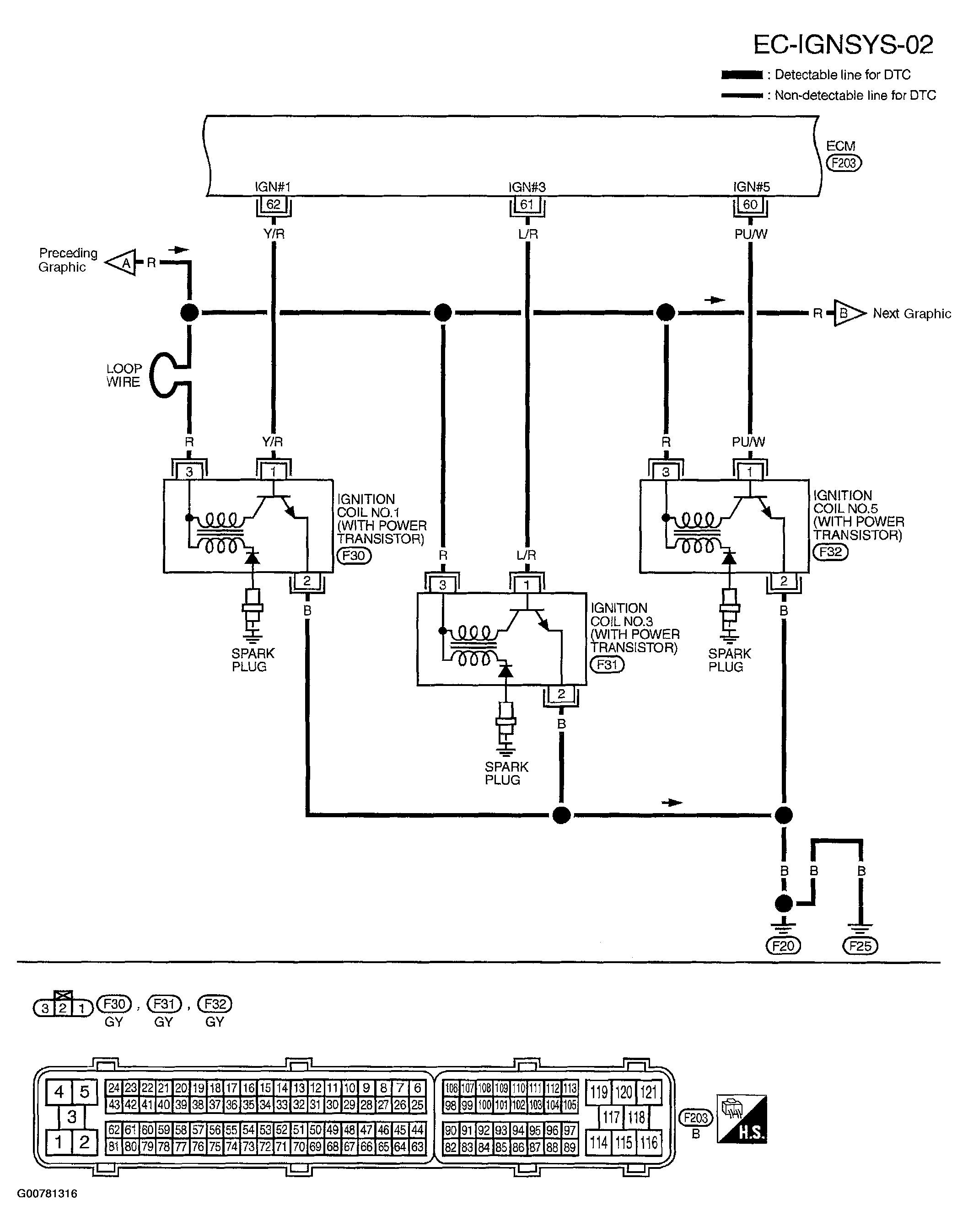

Fig 2: Wiring Diagram - Ignition Signal (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

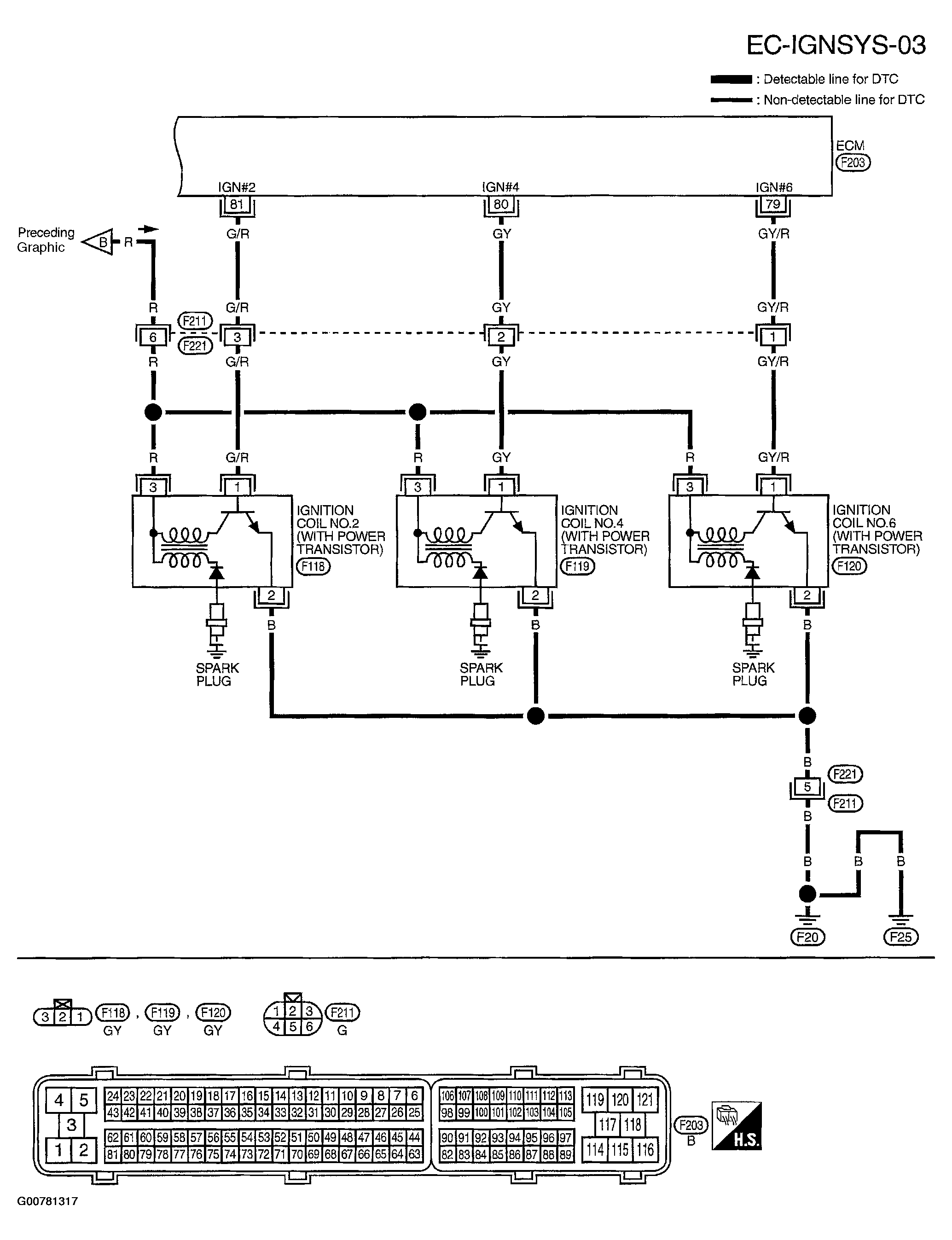

Fig 3: Wiring Diagram - Ignition Signal (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
