Inspection Procedure

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located under LH dash panel near the fuse box cover.

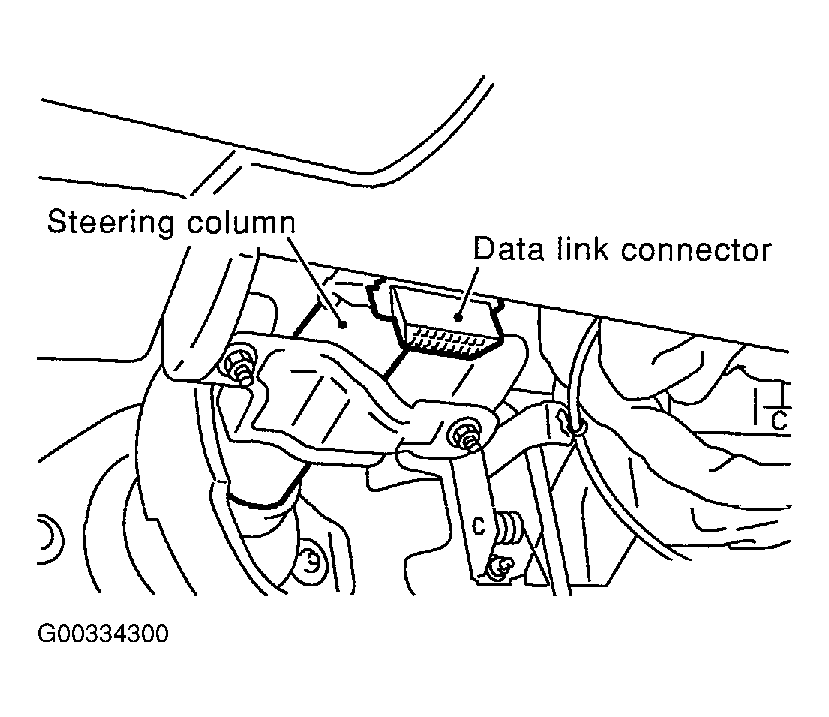

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

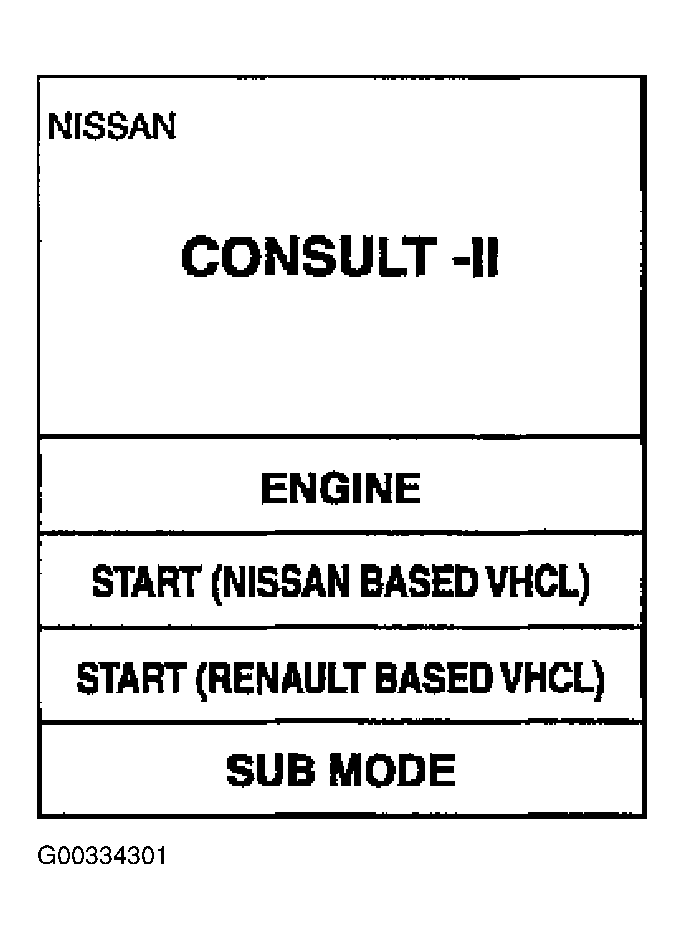

Fig 2: CONSULT-II Function Display (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ENGINE".
If "ENGINE" is not indicated, go to " CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

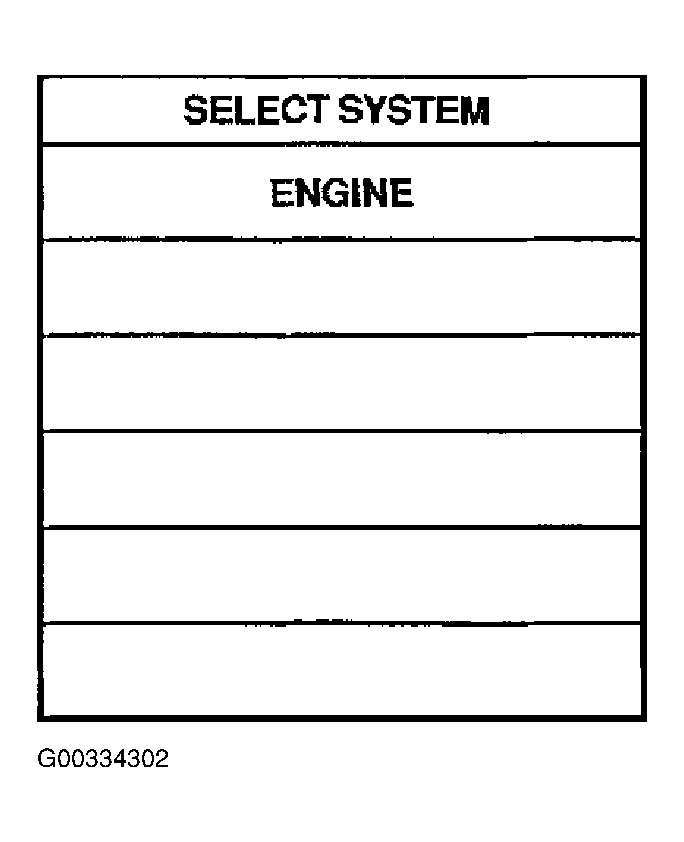

Fig 3: CONSULT-II Function Display (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT-II Operation Manual.

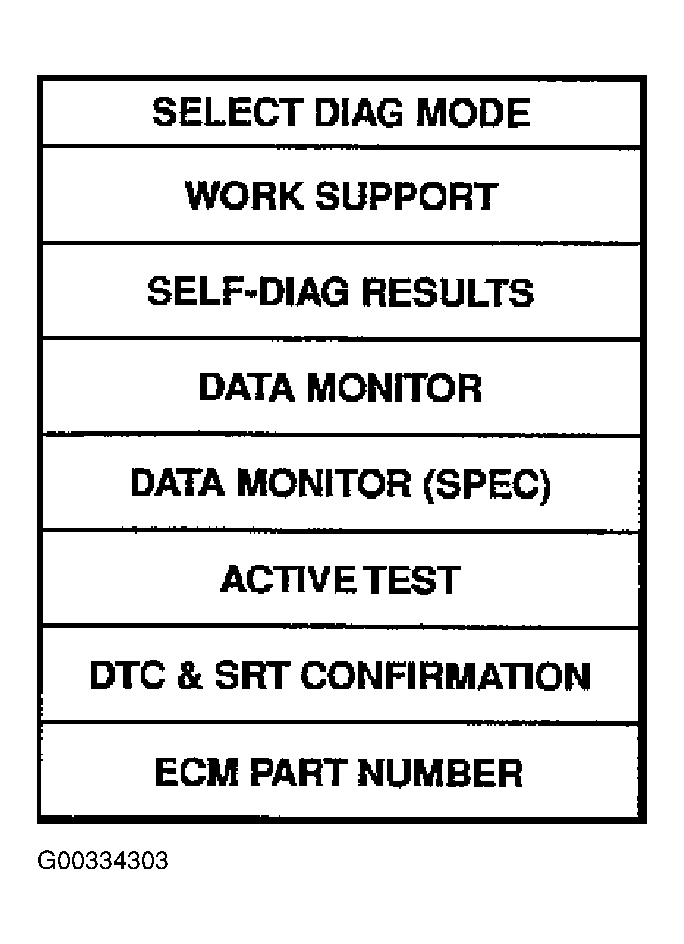

Fig 4: CONSULT-II Function Display (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
