Engine Fuel & Emission Control System

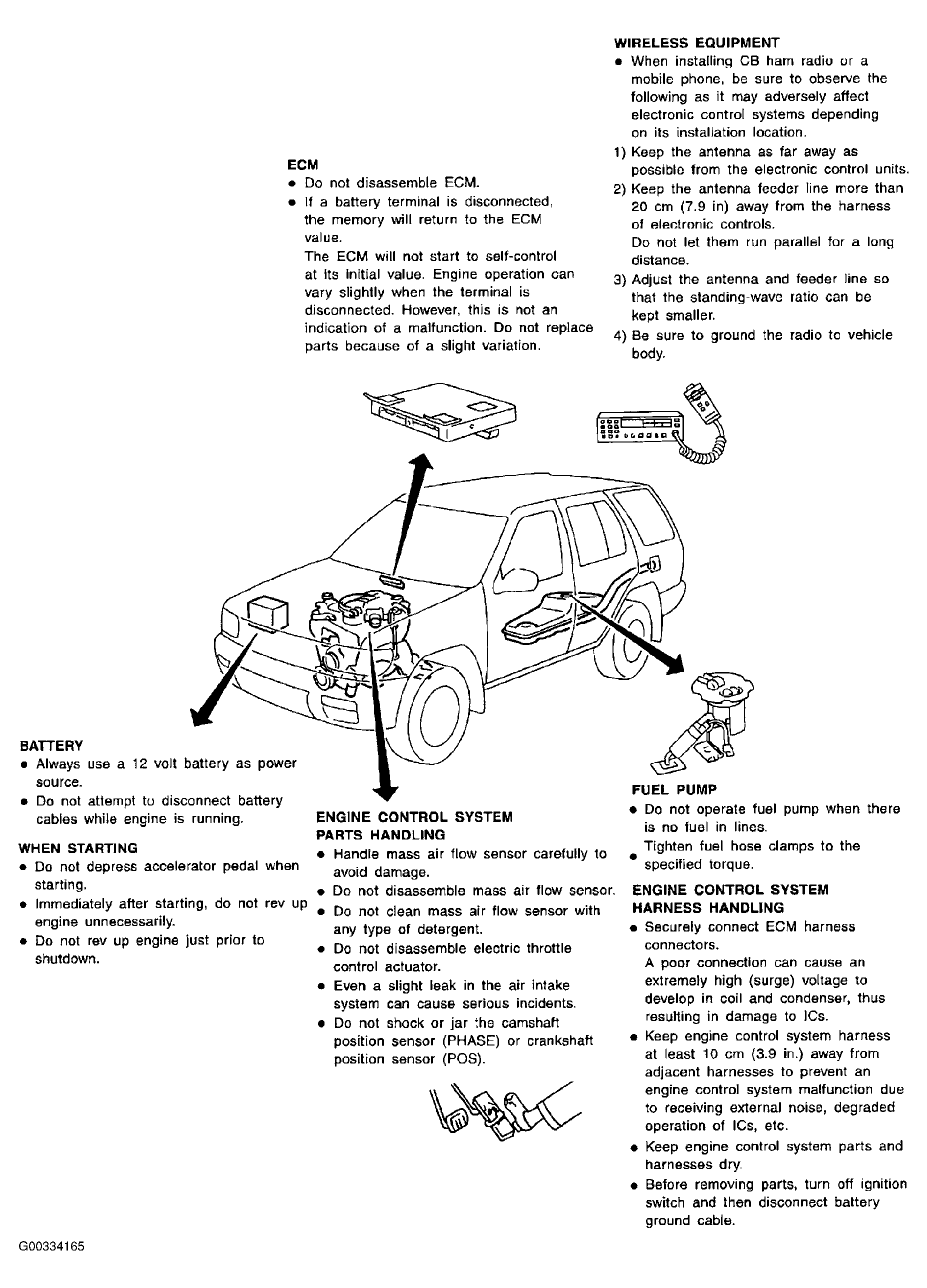

Fig 1: Identifying Engine Fuel & Emission Control System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
