System - Basic Engine Control System

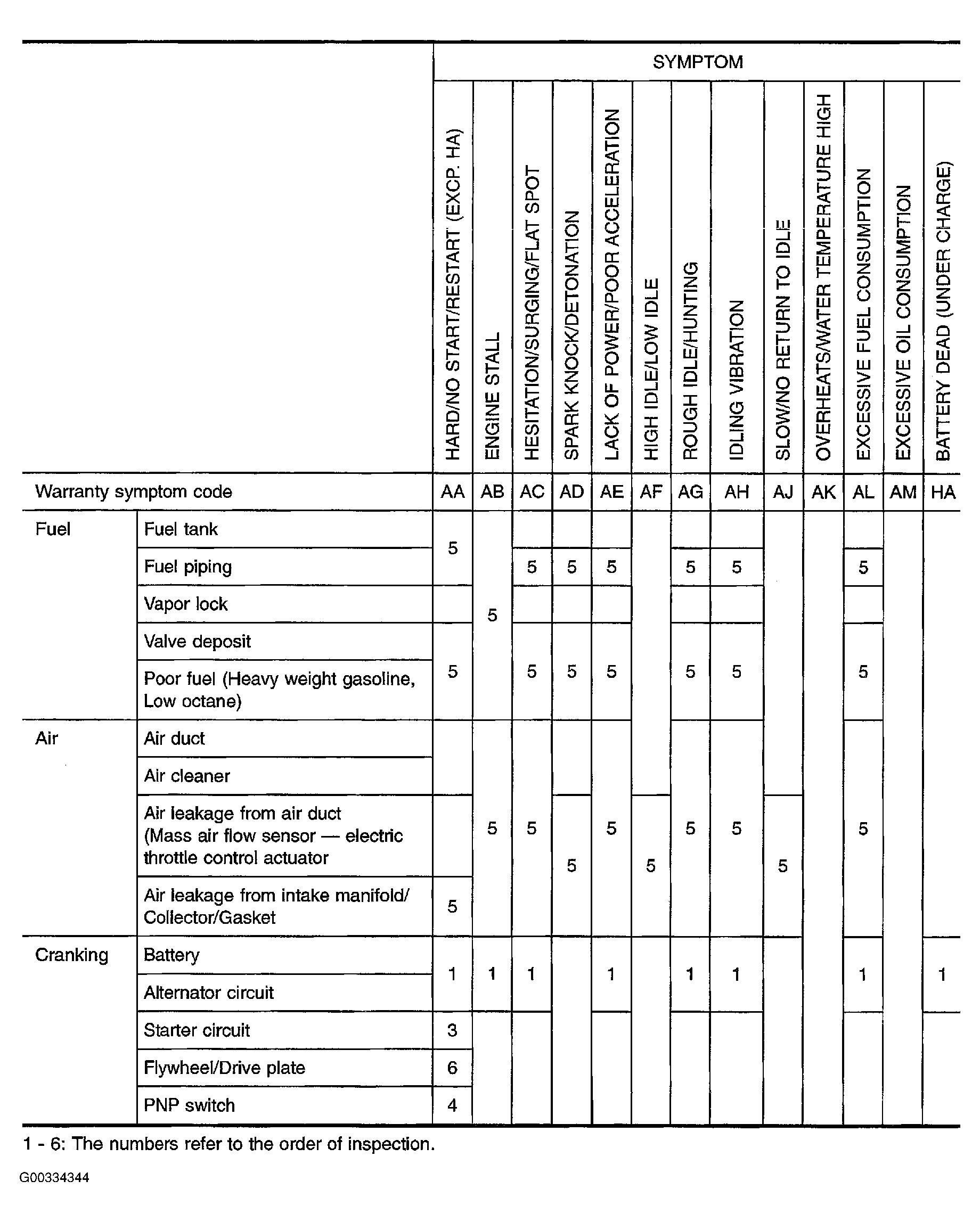

Fig 1: Symptom Matrix Chart (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

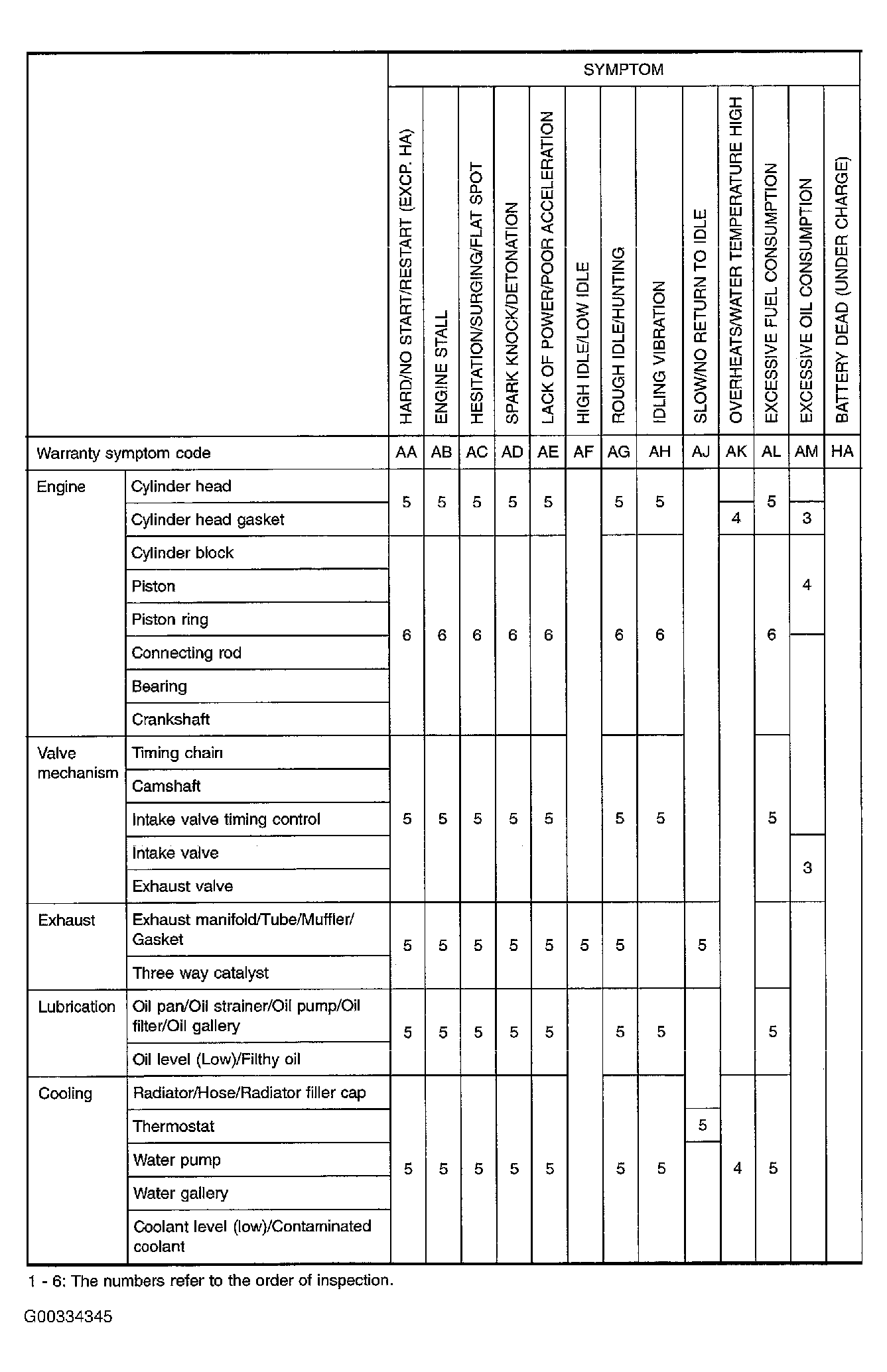

Fig 2: Symptom Matrix Chart (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

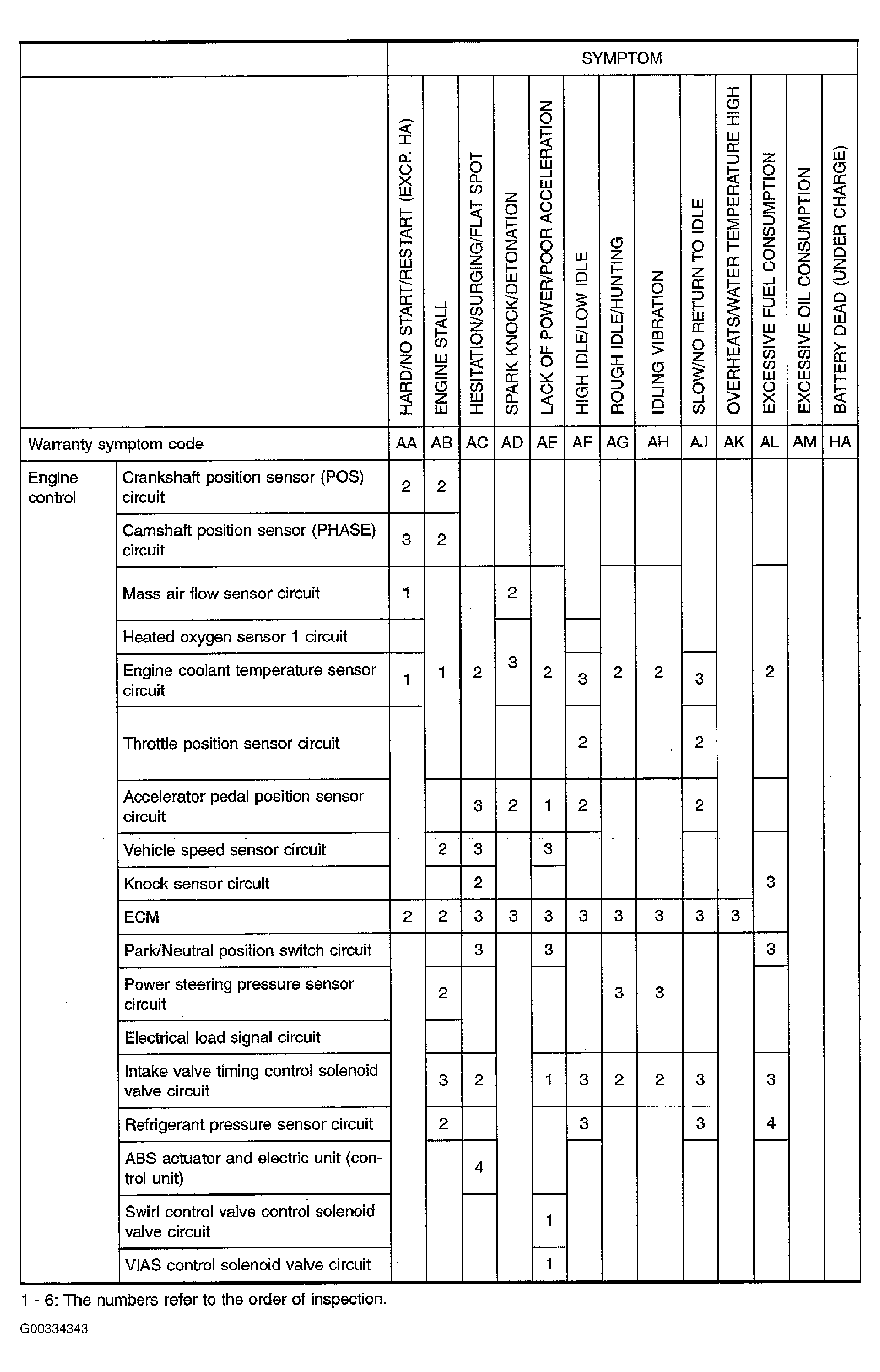

Fig 3: Symptom Matrix Chart (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

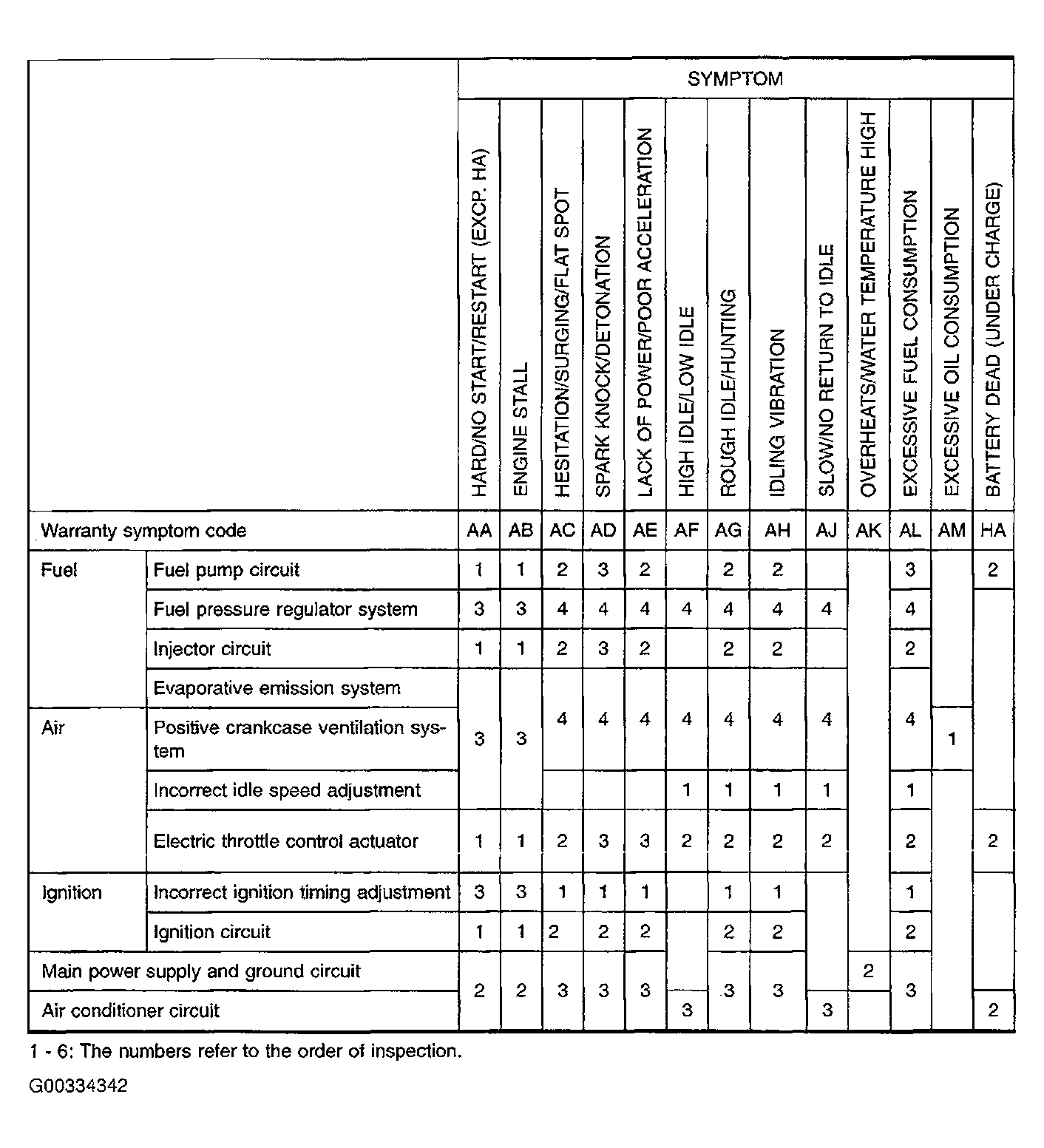

Fig 4: Symptom Matrix Chart (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

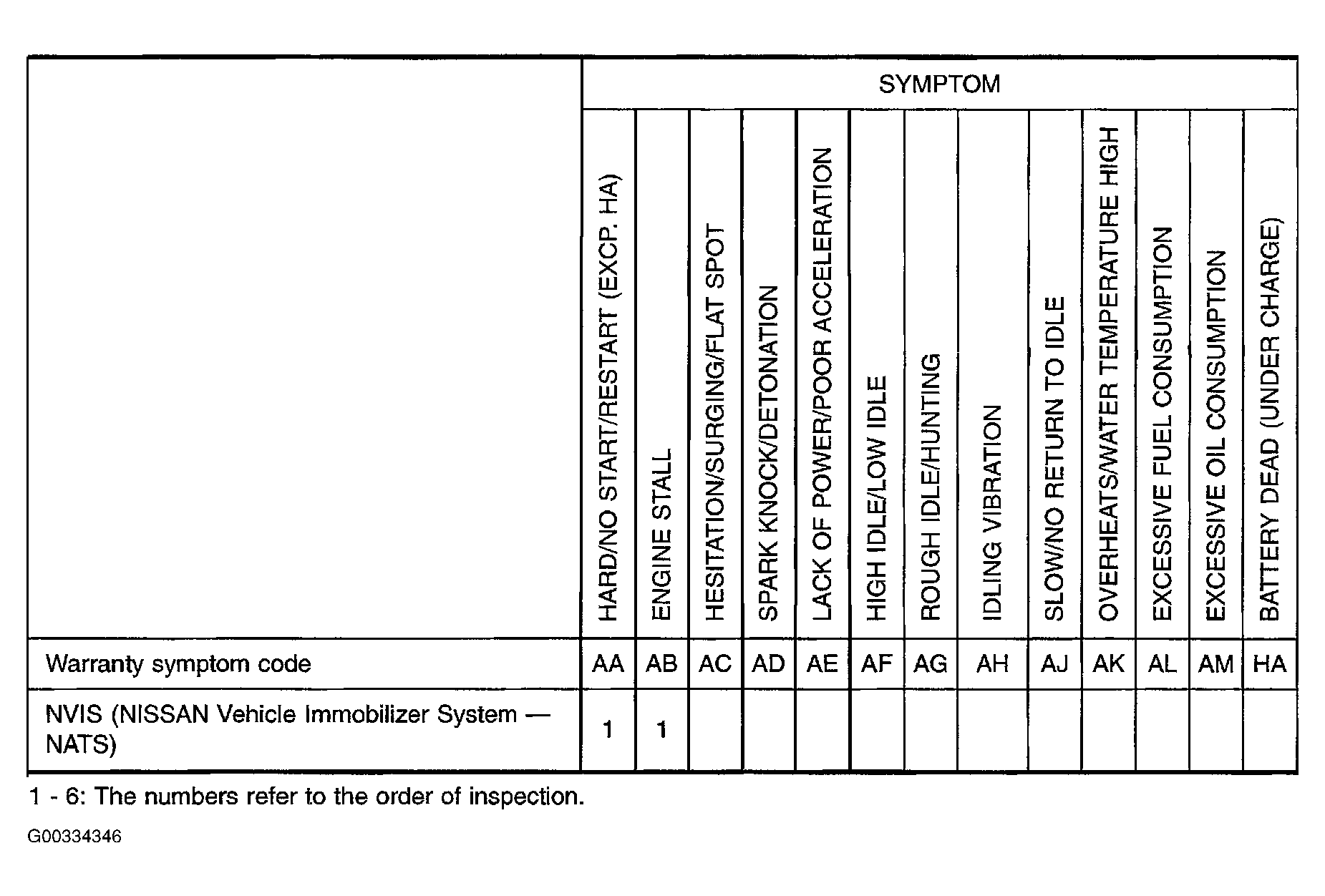

Fig 5: Symptom Matrix Chart (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
