DTC No. Index

NOTE: If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to "DTC U1000, U1001 CAN COMMUNICATION LINE ".

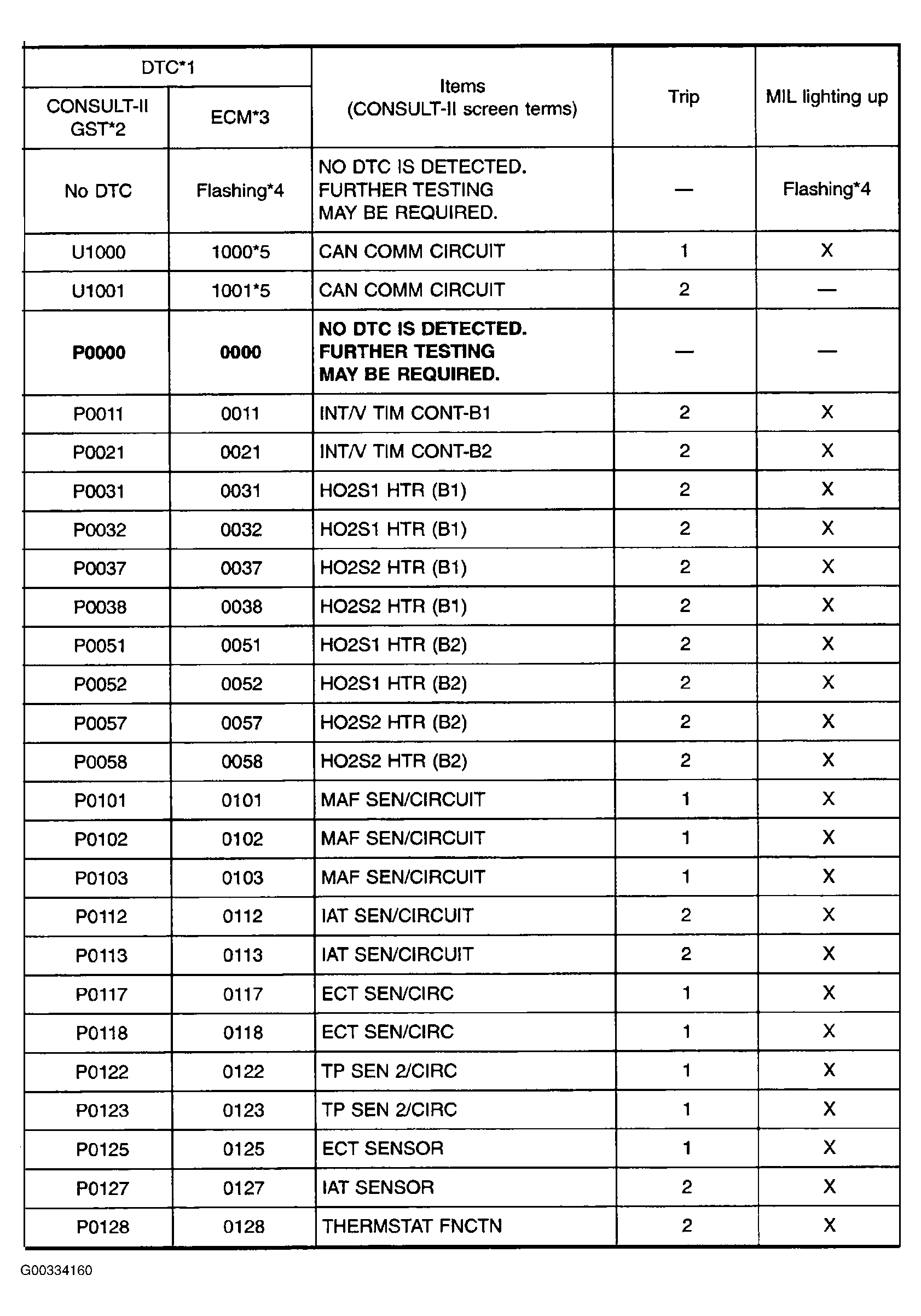

Fig 1: DTC No Index Chart (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

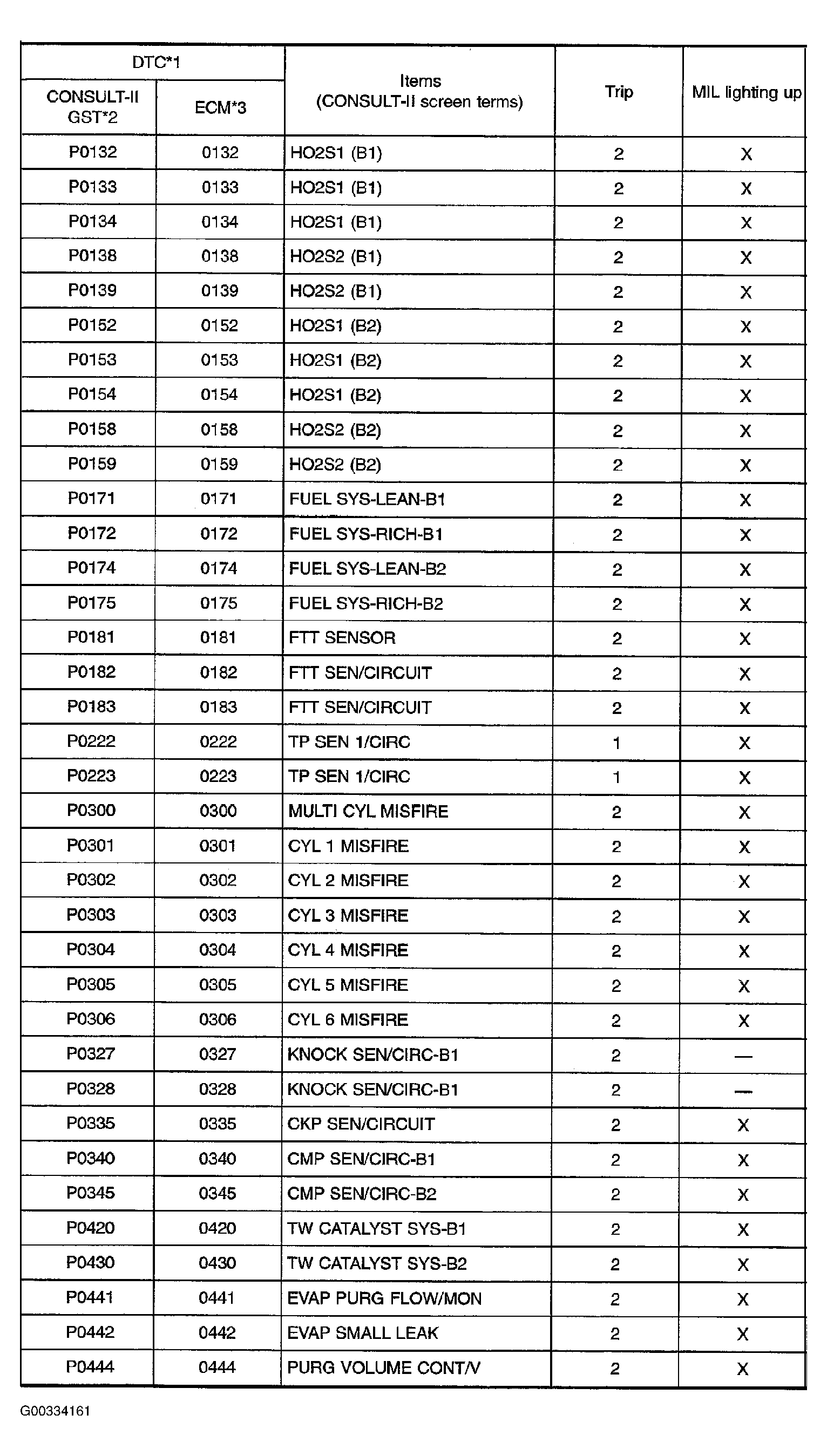

Fig 2: DTC No Index Chart (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

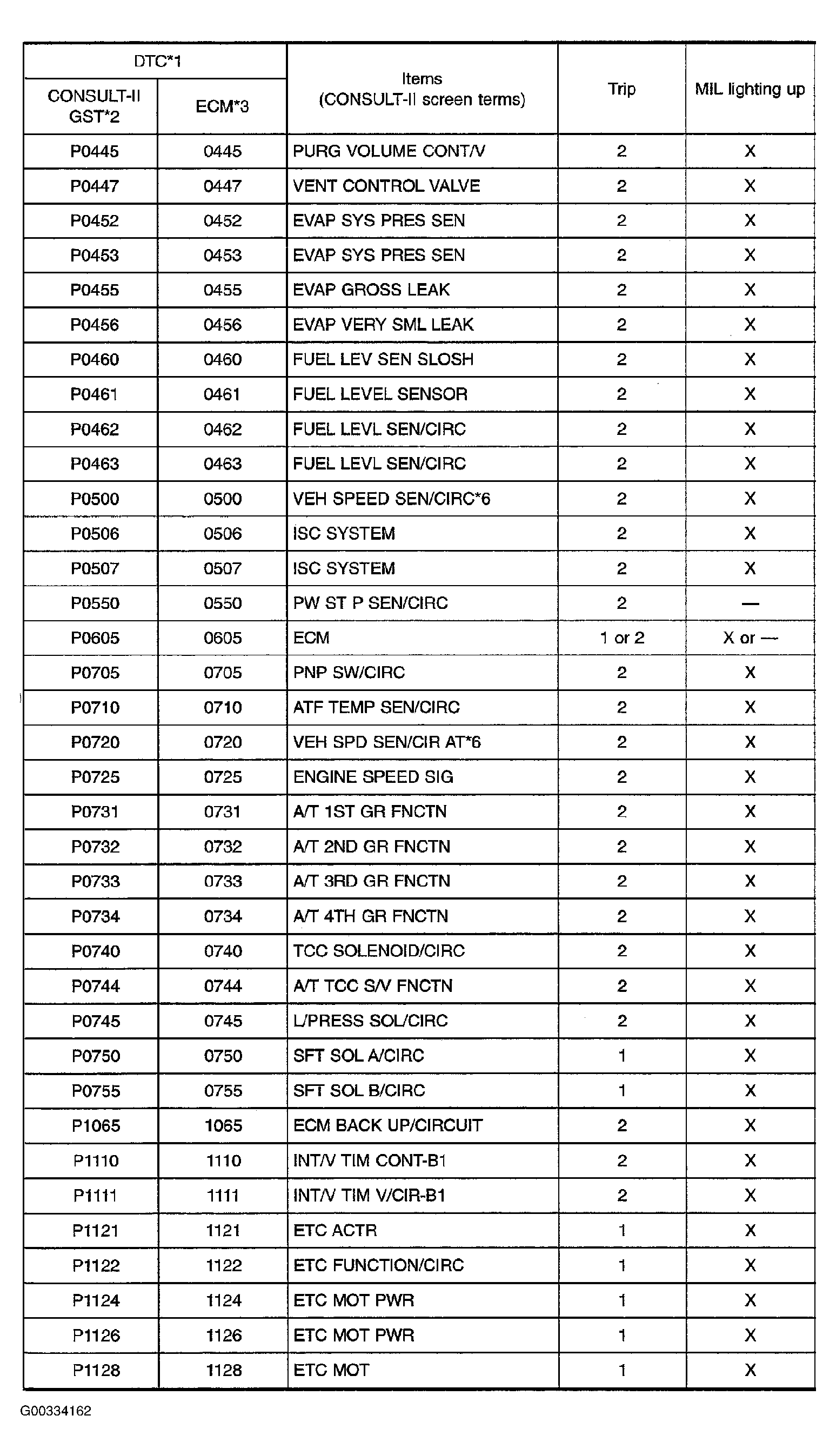

Fig 3: DTC No Index Chart (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

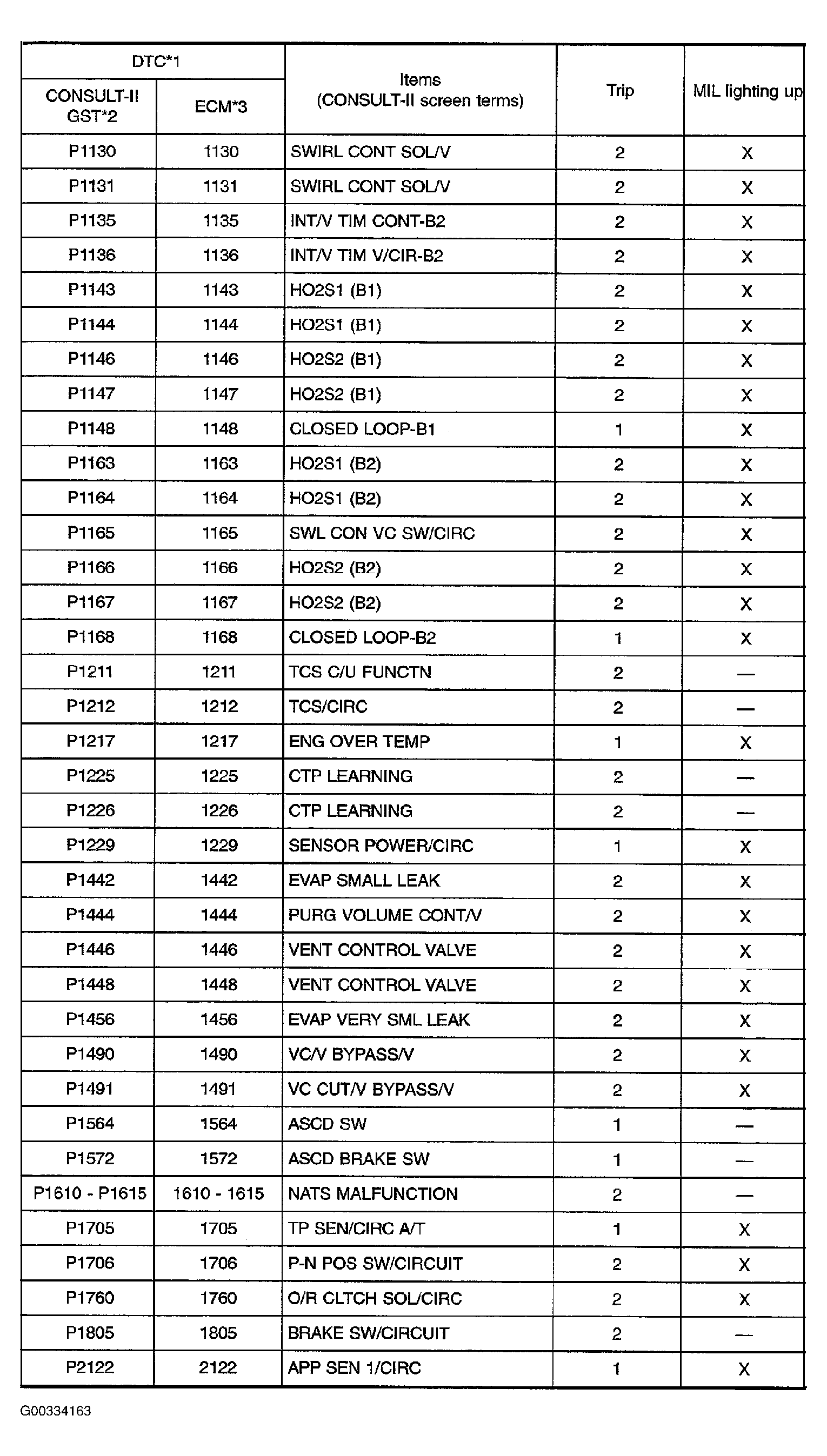

Fig 4: DTC No Index Chart (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

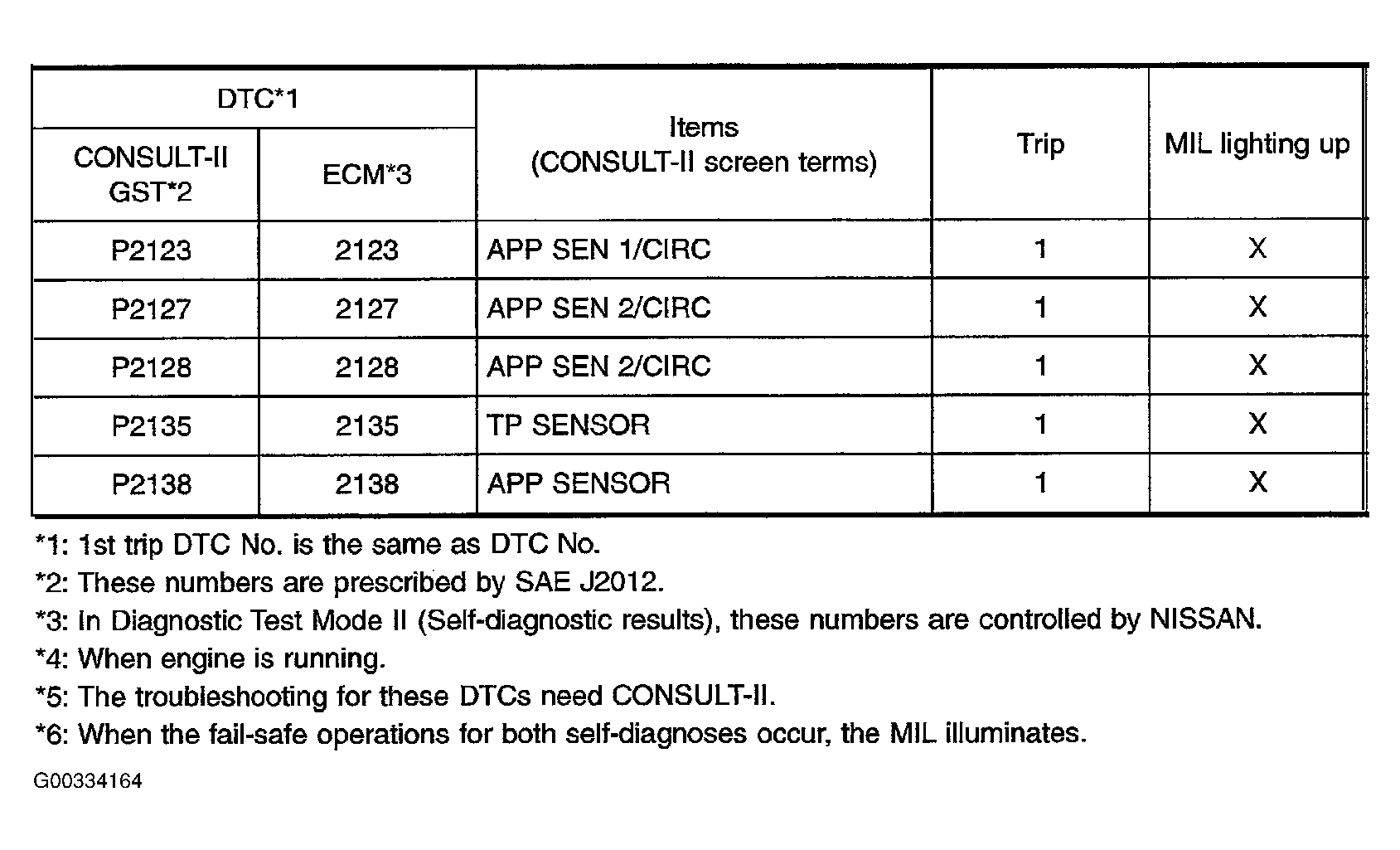

Fig 5: DTC No Index Chart (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

DTC INDEX

DTC	Description
DTC U1000, U1001	CAN COMMUNICATION LINE
DTC P0011, P0021	IVT CONTROL
DTC P0031, P0032, P0051, P0052	HO2S1 HEATER
DTC P0037, P0038, P0057, P0058	HO2S2 HEATER
DTC P0101	MAF SENSOR
DTC P0102, P0103	MAF SENSOR
DTC P0112, P0113	IAT SENSOR
DTC P0117, P0118	SEC SENSOR
DTC P0122, P0123	TP SENSOR
DTC P0125	ECT SENSOR
DTC P0127	IAT SENSOR
DTC P0128	THERMOSTAT FUNCTION
DTC P0132, P0152	HO2S1
DTC P0133, P0153	H02S1
DTC P0134, P0154	HO2S1
DTC P0138, P0158	HO2S2
DTC P0139, P0159	HO2S2
DTC P0171, P0174	FUEL INJECTION SYSTEM FUNCTION
DTC P0172, P0175	FUEL INJECTION SYSTEM FUNCTION
DTC P0181	FTT SENSOR
DTC P0182, P0183	FTT SENSOR
DTC P0222, P0223	TP SENSOR
DTC P0327, P0328	KS
DTC P0335	CKP SENSOR (POS)
DTC P0340, P0345	CMP SENSOR (PHASE)
DTC P0420, P0430	THREE WAY CATALYST
DTC P0441	EVAP CONTROL SYSTEM
DTC P0442	EVAP CONTROL SYSTEM
DTC P0444, P0445	EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
DTC P0447	EVAP CANISTER VENT CONTROL VALVE
DTC P0452	EVAP SYSTEM PRESSURE SENSOR
DTC P0453	EVAP SYSTEM PRESSURE SENSOR
DTC P0455	EVAP CONTROL SYSTEM
DTC P0456	EVAP CONTROL SYSTEM
DTC P0460	FUEL LEVEL SENSOR
DTC P0461	FUEL LEVEL SENSOR
DTC P0462, P0463	FUEL LEVEL SENSOR
DTC P0500	VSS
DTC P0506	ISC SYSTEM
DTC P0507	ISC SYSTEM
DTC P0550	PSP SENSOR
DTC P0605	ECM
DTC P1065	ECM POWER SUPPLY (BACK UP)
DTC P1110, P1135	IVT CONTROL
DTC P1111, P1136	IVT CONTROL SOLENOID VALVE
DTC P1121	ELECTRIC THROTTLE CONTROL ACTUATOR
DTC P1122	ELECTRIC THROTTLE CONTROL FUNCTION
DTC P1124, P1126	THROTTLE CONTROL MOTOR RELAY
DTC P1128	THROTTLE CONTROL MOTOR
DTC P1130	SWIRL CONTROL VALVE CONTROL SOLENOID VALVE
DTC P1131	SWIRL CONTROL VALVE CONTROL SOLENOID VALVE
DTC P1143, P1163	HO2S1
DTC P1144, P1164	HO2S1
DTC P1146, P1166	HO2S2
DTC P1147, P1167	HO2S2
DTC P1148, P1168	CLOSED LOOP CONTROL
DTC P1165	SWIRL CONTROL VALVE CONTROL VACUUM CHECK SWITCH
DTC P1211	ABS/TCS CONTROL UNIT
DTC P1212	ABS/TCS COMMUNICATION LINE
DTC P1217	ENGINE OVER TEMPERATURE
DTC P1225	TP SENSOR
DTC P1226	TP SENSOR
DTC P1229	SENSOR POWER SUPPLY
DTC P1442	EVAP CONTROL SYSTEM
DTC P1444	EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
DTC P1446	EVAP CANISTER VENT CONTROL VALVE
DTC P1448	EVAP CANISTER VENT CONTROL VALVE
DTC P1456	EVAP CONTROL SYSTEM
DTC P1490	VACUUM CUT VALVE BYPASS VALVE
DTC P1491	VACUUM CUT VALVE BYPASS VALVE
DTC P1564	ASCD STEERING SWITCH
DTC P1572	ASCD BRAKE SWITCH
DTC P1706	PNP SWITCH
DTC P1805	BRAKE SWITCH
DTC P2122, P2123	APP SENSOR
DTC P2127, P2128	APP SENSOR
DTC P2135	TP SENSOR
DTC P2138	APP SENSOR
