Variable Induction Air Control System (VIAS): Wiring Diagram

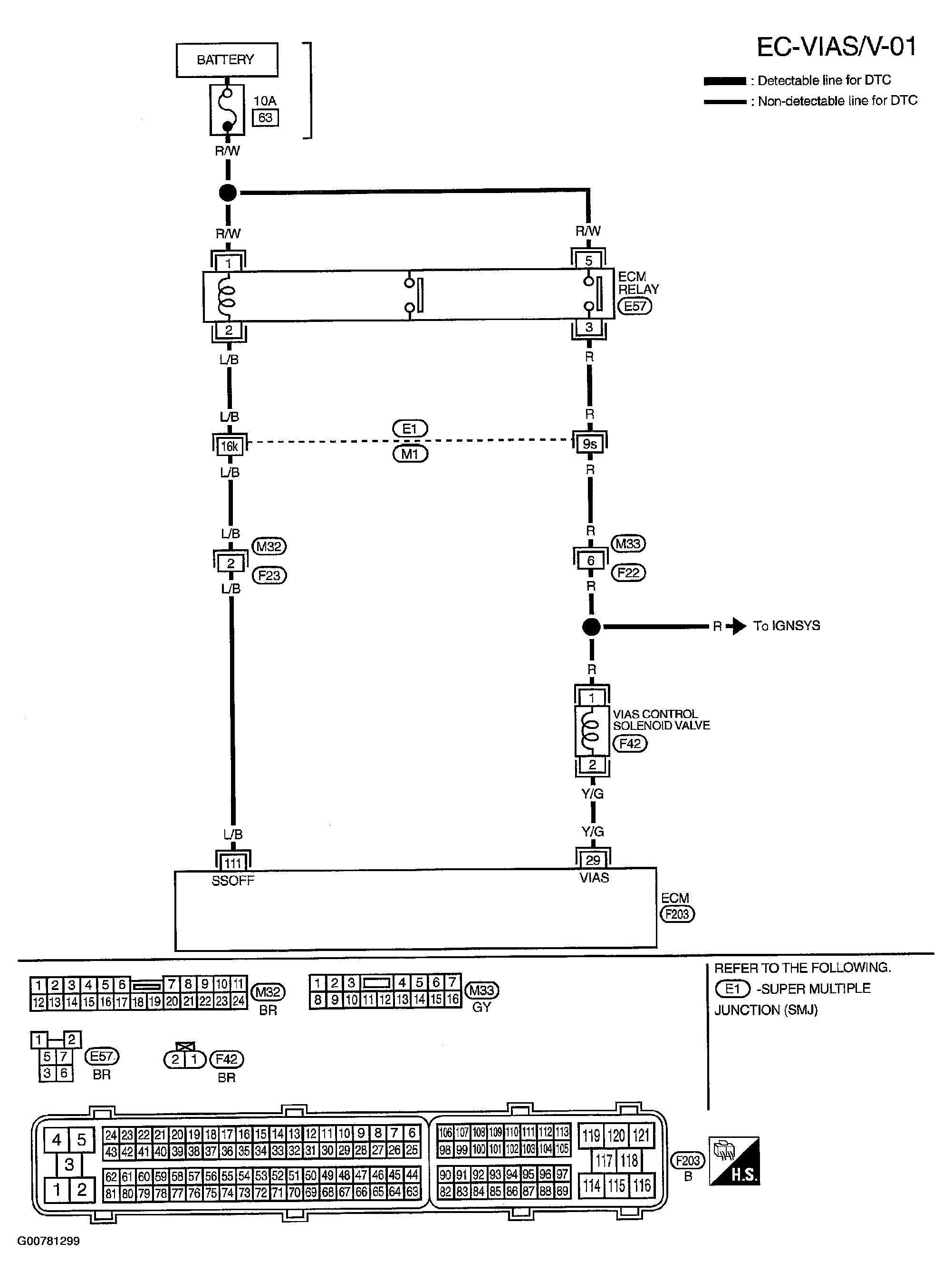

Fig 1: Wiring Diagram - Variable Induction Air Control System
G00781299Courtesy of NISSAN MOTOR CO., U.S.A.
