How to Display SRT Code
With CONSULT-II
Selecting "SRT STATUS" in "DTC CONFIRMATION" mode with CONSULT-II.
For items whose SRT codes are set, a "CMPLT" is displayed on the CONSULT-II screen; for items whose SRT codes are not set, "INCMP" is displayed.
With GST
Selecting Mode 1 with GST (Generic Scan Tool)

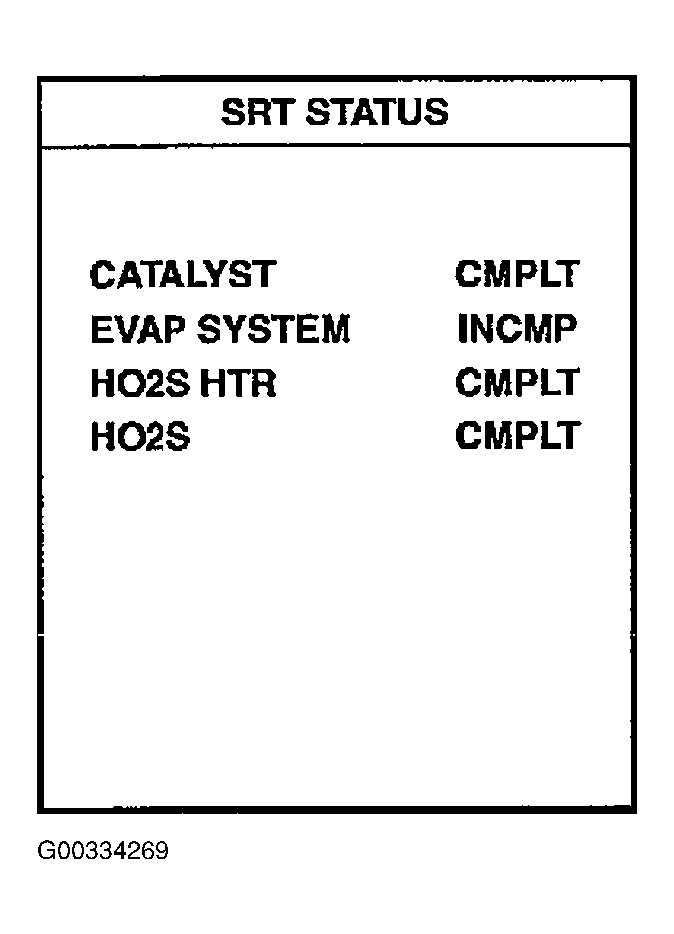

A sample of CONSULT-II display for SRT code is shown below.
"INCMP" means the self-diagnosis is incomplete and SRT is not set. "CMPLT" means the self-diagnosis is complete and SRT is set.
