With Consult-II

Turn ignition switch ON and select "DATA MONITOR" mode for A/T with CONSULT-II.

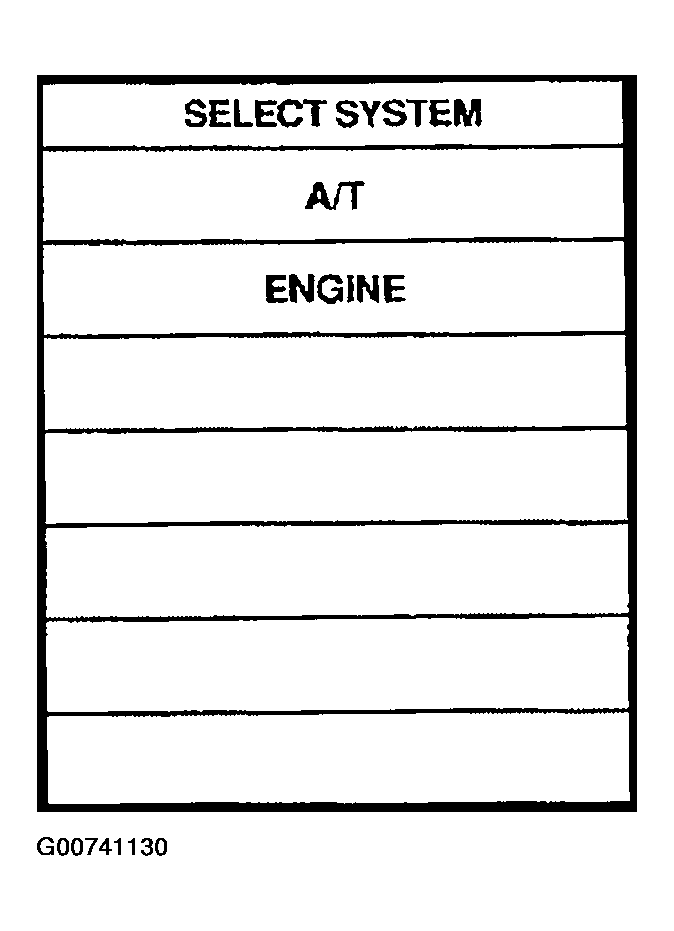

Fig 1: CONSULT-II Display - SELECT SYSTEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine.
Run engine for at least 2 seconds at idle speed.

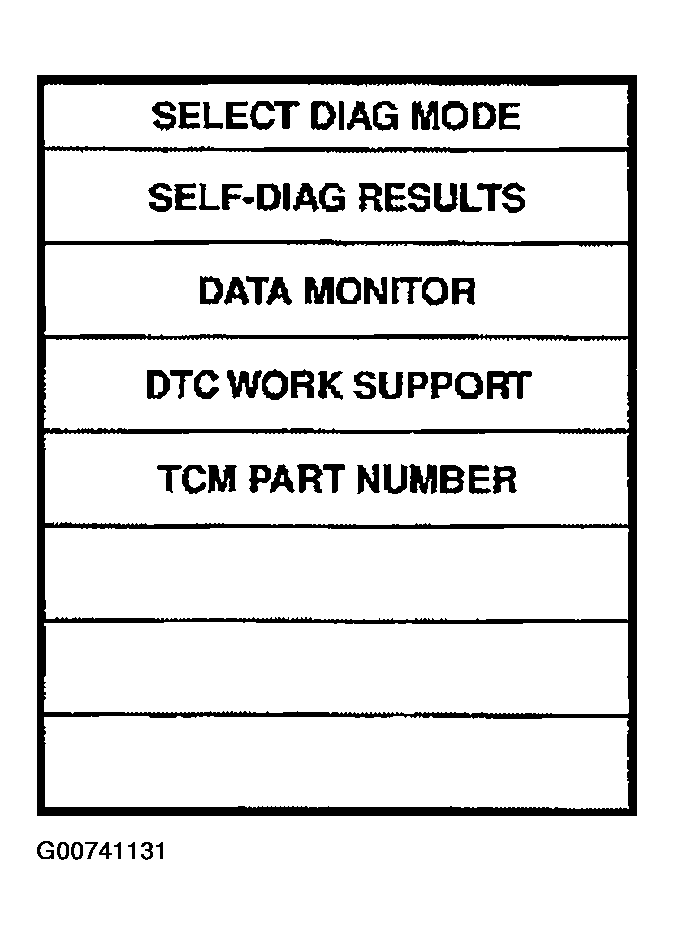

Fig 2: CONSULT-II Display - SELECT DIAG MODE
Courtesy of NISSAN MOTOR CO., U.S.A.
