With CONSULT-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.

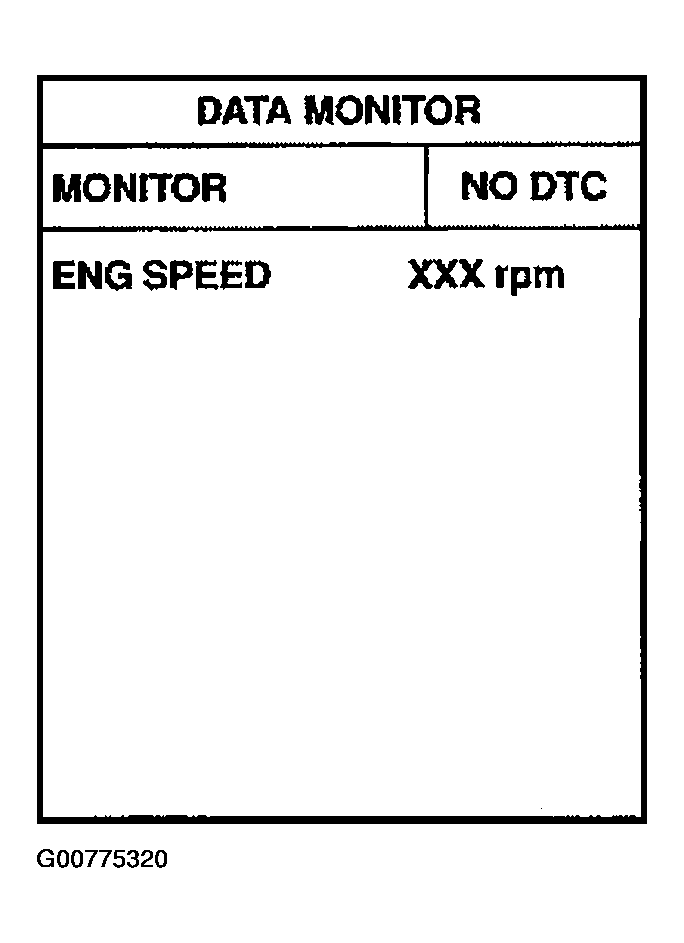

    Fig 1: Displaying Data Monitor Screen
    G00775320Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Wait at least 5 seconds.
  4. If DTC is detected, go to DIAGNOSTIC PROCEDURE  .

    If DTC is not detected, go to next step.

  5. Start engine and wait at least 5 seconds.
  6. If DTC is detected, go to DIAGNOSTIC PROCEDURE  .
